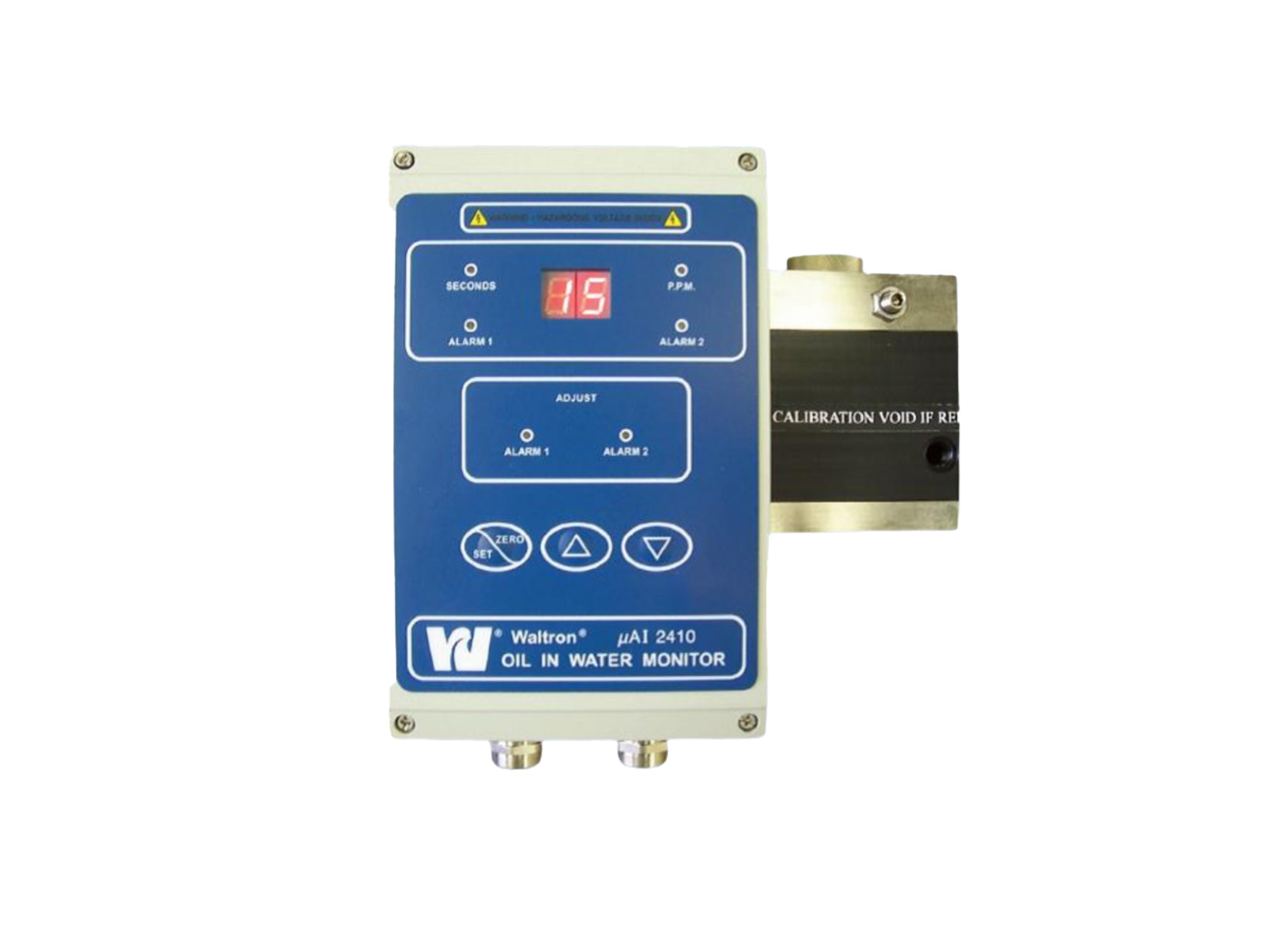

Waltron 2410 Oil in Water Analyzer
Reliable ppm measurement of hydrocarbons in industrial clean water applications.
Overview
Features
- Compact design
- Calibrates directly to clean water
- 0 to 99 ppm range
- Automatic and continuous self-diagnostics
- Turbidity compensation
- Rapid response
- Minimal maintenance required
- Automatic operation
- ∓2ppm accuracy
- 0-20mA, 4-20mA current outputs
- Two adjustable operating delay alarms
- 230/115VAC or 24VAC, 50/60HZ; consumption 10VA max
- Corrosion resistant
- EN61010-1EC664 category 11
Description
The Waltron 2410 Oil-in-Water Monitor is explicitly developed for the reliable ppm measurement of hydrocarbons in industrial clean water applications. The 2410 has many uses, and its compact footprint, easy maintenance, and auto-clean function make it a good choice for hard-to-reach locations. The uncomplicated design utilizes optical sensors to measure absorbed and scattered light in a sample stream. It distinguishes between oil droplets and turbidity, calculating the oil concentration based on the sensor signal. The analyzer monitors continuously and activates alarms and relays as necessary.
Applications
- Include boiler condensate returns
- Process cooling water,
- Process steam monitoring
- Pump oil discharge, and wastewater
