Macnaught MX Series Industrial Flow Meters
Positive displacement oval gear flow meters designed to cover a broad range of industrial fluid measurement applications.
Overview
Features
- Flow ranges from 0.13 GPH to 194 GPM
- Up to ±0.5% accuracy (±1.0% for MX06P, MX09P)
- Stainless steel meter body
- Bearingless PPS Rotors
- High temperature and high viscosity rotors available
- FEP/PTFE encapsulated seals
- Temperature Range: -40 to 176˚F
- Optional 12 or 17mm LCD display
- Outputs options: 4-20mA (passive), Transistor, Pulse Output, Alarm

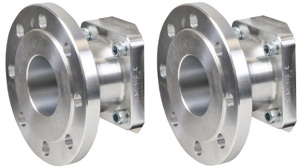

- BSP, NPT or flanged process connections
- CE compliant
- 2 Year Warranty
- Robust Design
- Suitable for use in the harshest outdoor environments
Description
Macnaught MX Series industrial meters are positive displacement oval gear flowmeters that are designed to cover a broad range of industrial fluid measurement applications. With versions covering high temperature, high pressure, as well as hazardous locations, there is a Macnaught Industrial flowmeter to fit virtually any industrial liquid measurement requirement.
Macnaught industrial meters are constructed utilizing a robust cast aluminum body suitable for use in the harshest environments. Their bearing-less PTFE/PPS rotors provide exceptionally low pressure drop and can even be used in gravity fed applications. This unique rotor design ensures minimal wear resulting in many years of reliable service. This approach has proven over time to provide consistently accurate flow measurement that is not affected by variations in temperature, viscosity, or pressure.
Another benefit of Macnaught's unique rotor design is simplicity of repair. With only 2 moving parts, the meters are simple to repair, require minimal repair parts stock, and can even be repaired inline, resulting in less downtime.
Oval Gear flowmeters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch sizes, viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, no straight piping runs are required, so they can be used in installations where space is limited without effecting performance.
With a range of display, output and process connection options, Macnaught MX Series industrial flow meters are the perfect choice for a variety of applications including:
- Chemical batching
- Additive injection
- Hydraulic test stands
- High temperature chemical processes
- High pressure chemical processes
- Food and beverage batch processes
- Ethanol blending and production
- Pulp and paper
Documents
Spec Sheets
- Macnaught MX Series Industrial Flow Meters Brochure PDF (999 KB)
- Macnaught MX06P Industrial Flow Meter Datasheet PDF (103 KB)
- Macnaught MX09P Industrial Flow Meter Datasheet PDF (3.8 MB)
- Macnaught MX12P Industrial Flow Meter Datasheet PDF (3.2 MB)
- Macnaught MX19P Industrial Flow Meter Datasheet PDF (3.3 MB)
- Macnaught MX25P Industrial Flow Meter Datasheet PDF (3.4 MB)
- Macnaught MX40P Industrial Flow Meter Datasheet PDF (3.2 MB)
- Macnaught MX50P Industrial Flow Meter Datasheet PDF (3.4 MB)
- Macnaught MX75P Industrial Flow Meter Datasheet PDF (3.5 MB)
Manuals
Other
Links
Accessories
Applications
This product can be used in the following applications:
