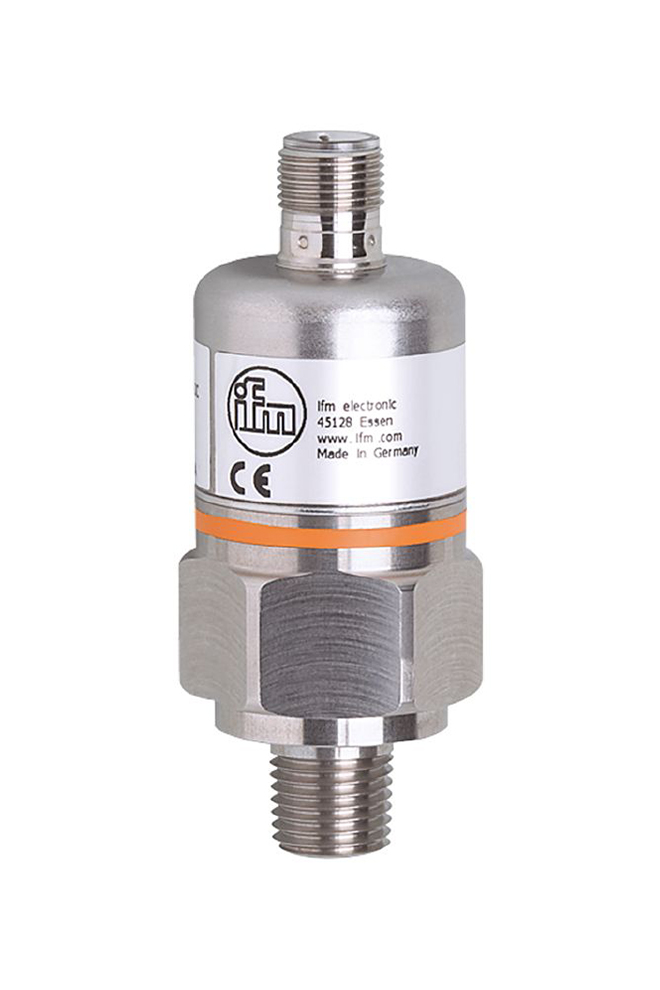

ifm efector PX Series Pressure Transmitter

Pressure sensor with ceramic capacitive measuring cell. Vacuum ranges starting at -14.5psi, to gauge ranges up to 5000psi. Analog signaling.

Starting at $326.00

Effective March 30th, 2026, ifm effector has added an 8% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Measuring range(s):
    • Vacuum and gauge, -14.5psi up to 5000psi (gauge only)
  • Process connections: 1/4in NPT
  • Medium temperature range: -13 to 194°F
  • Output signal: 4 to 20mA, 0 to 10V, 1 to 5V
  • Accuracy: ±0.5%
  • IP68 / IP69K (above 500psi)
  • Blind transmitter (no display)
  • Connector: 1 x M12; coding: A

The ifm efector PX Series Pressure Transmitter reliably detects the system pressure in hydraulic industrial applications. Units are blind, non-scalable sensors with 0 to 10V, 1 to 5V, or 4 to 20mA analog outputs. This series features two switching outputs, one of which can be configured as a diagnostic output, with PNP/NPN switching and IO-Link connection. The PX Series' compact housing ensures flexible integration where space is limited. These durable sensors operate via ceramic capacitive technology, offering long-term stability with a high overload pressure rating. Units are built to withstand high shock, and vibration, with wear-free operation for over 100 million pressure cycles.
