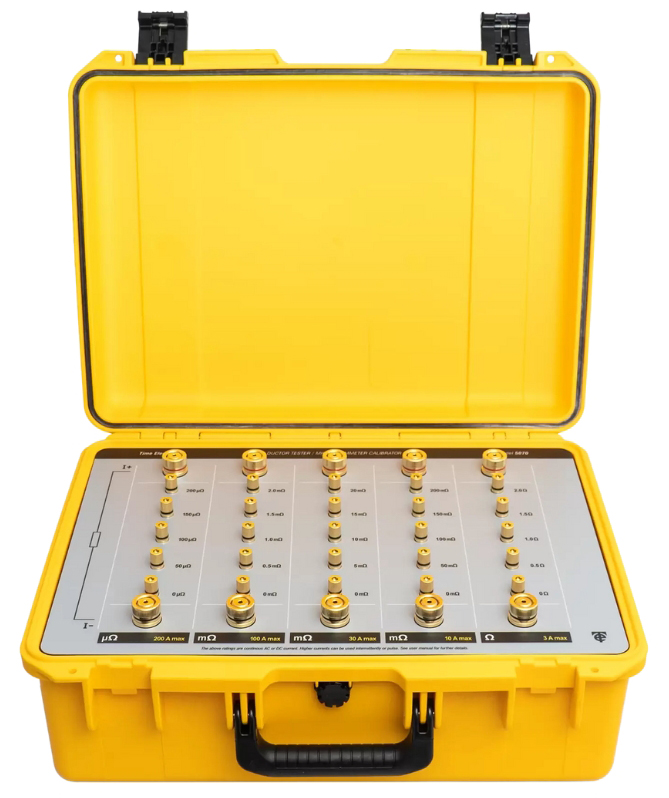

Time Electronics 5070 Micro-Ohmmeter Calibrator
A transportable instrument suitable for calibrating high current ductor testers and micro-ohmmeters.
- 5070
Overview
Features
- 0.2, 2, 20, 200, 2000 mΩ
- 5 cal points: 0/25/50/75/100 %
- 0.1 % best accuracy
- Low thermal emf connection
- Gold plated terminals
Description
The Time Electronics 5070 Micro-Ohmmeter Calibrator incorporates 5 sets of high current standard resistors that are used to enable precision calibration. It has full 4 terminal capabilities with extra large terminals for the current connection.
Gold plated terminals are used throughout to reduce contact resistance and thermal EMFs. It has a substantial maximum continuous current rating, but can also be used with much higher transient/pulse test currents. The internal resistance standards are high quality manganin types with long term stability and temperature coefficients.
