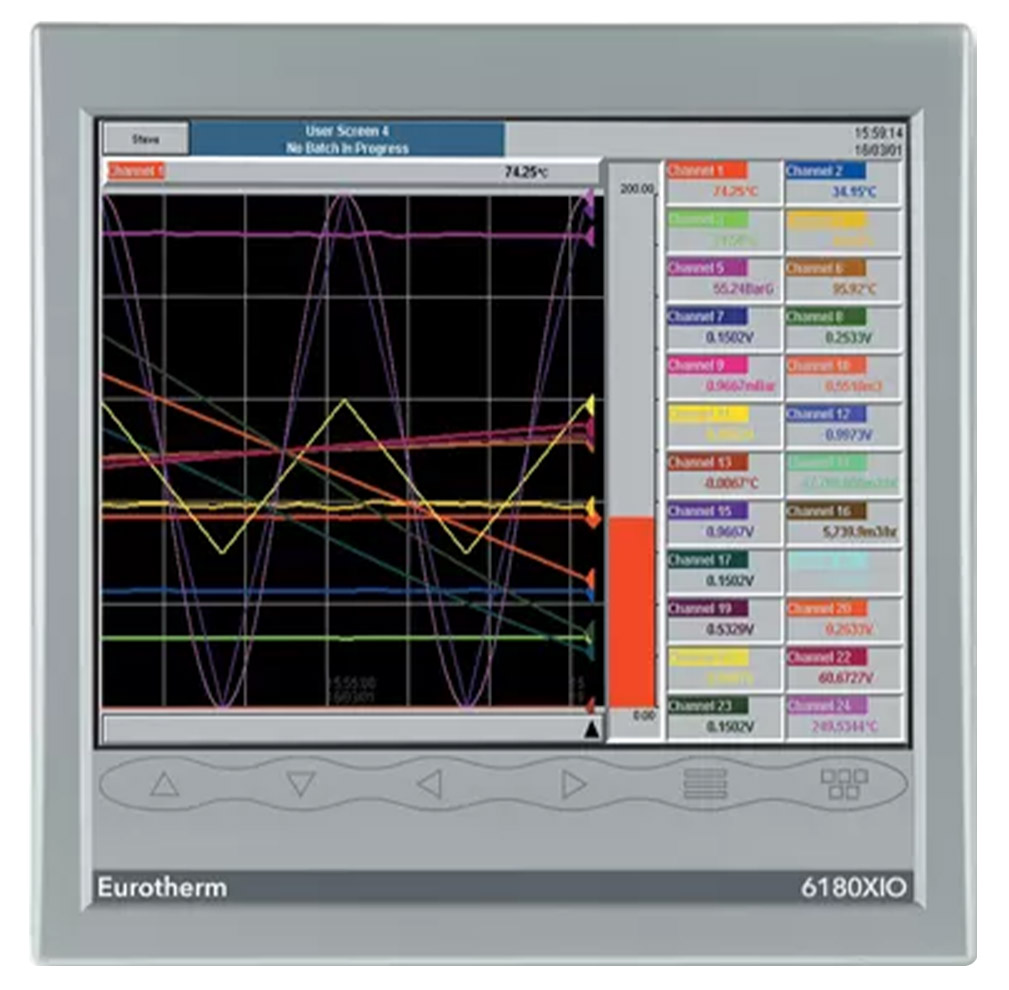

Eurotherm 6000XIO Series Graphic Recorder
Paperless data recorder with touch screen interface to clearly view process data in multiple different formats.
Overview
Features
- Comms channels:
- 6100XIO: up to 18
- 6180XIO: up to 48
- Up to 128 virtual channels
- 4 alarms per channel
- Display:
- 6100XIO: 5.5in
- 6180XIO: 12.1in
- DIN43700 panel mounting
Description
The 6000XIO features data logging and archiving via the internal flash memory for secure data storage. The 6000XIO also accepts USB storage and a memory card for additional data storage. Data stored within the internal memory can be archived to the removable devices on demand or at preset intervals. The 6000XIO will give indication of how long its internal memory and that of the removable storage will last according to the configuration of the recorder. All 6000XIOs have Ethernet capability and it can be configured to archive to the removable media and/or over the Ethernet connection.
The Modbus master allows the user to view data from multiple instruments connected by a local network connection using Modbus TCP, or through the serial connection using Modbus RTU.
The 6000XIO has a built-in reports option that provides the ability to generate up to 10 simple reports that can be displayed as part of the recorded data. Reports, triggered by an event/job can be configured to contain parameters such as time and date, batch names, process values and user defined messages.
