Optris Xi410 Infrared Camera

384 x 240 pixel resolution, -4 to 2732°F, 80mK thermal sensitivity, 25Hz frame rate with motorized focus.

Optris Xi410 Infrared Camera — Optris Xi410 Infrared Camera with Mount

Optris Xi410 Infrared Camera with Mount

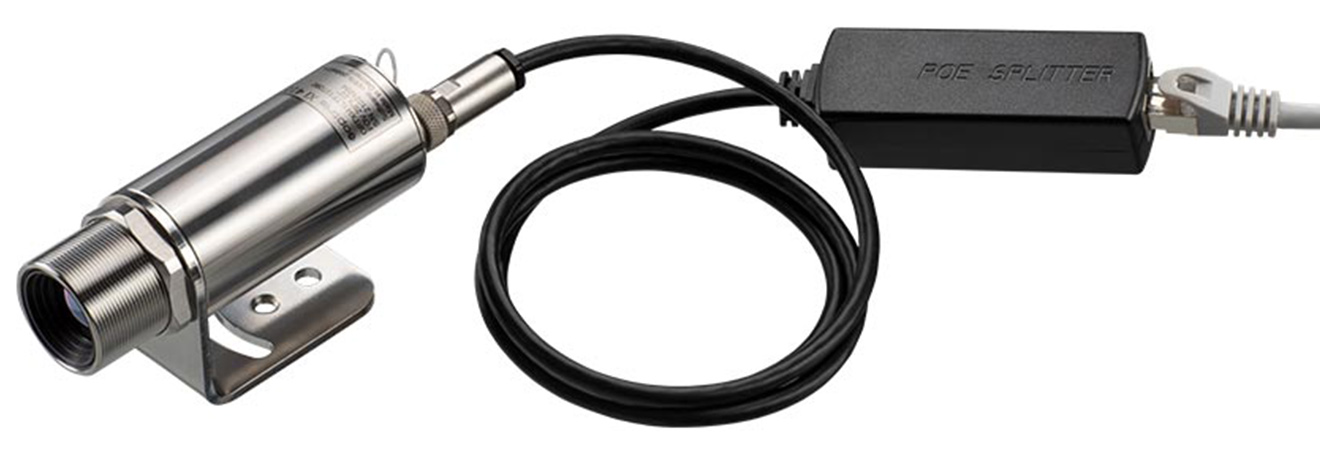

Optris Xi410 Infrared Camera with Cable

Starting at $3,750.00

View Company Reviews

Manufactured

By Optris

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 4 weeks

Product Family

XI Series

Product Manual Product Specs

Features

-4 to 2732F°F temperature range
384 x 240px optical resolution
8 to 14 μm spectral range
390:1 optical resolution (18° optics)
±2°C or ±2% accuracy
Fast Ethernet / USB 2.0 PC interfaces
1x analog output, 1x input (analog or digital)
5 to 30 VDC/PoE/USB power supply

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

USB cable (1m)
Ethernet PoE cable (1m)
Cable for output/input (1m)
Mounting bracket with nut
Optris PIX Connect software

The Optris Xi410 infrared camera has an Ethernet interface and can be powered by PoE. This allows for an easy installation, even if the distance from the PC is large. The built-in hot spot finder function can measure moving objects without having to reposition the camera. If the network connection is interrupted or if the connected PC has malfunction, the camera switches to the autonomous stand-alone mode which ensures a continuous measurement and alarm. The Xi410 is a great choice for safety applications such as fire prevention, detection of critical hot spots, and monitoring of industrial equipment/storage.

Complimentary PIX Connect software offers both on and offline data analysis for the Optris Xi410. It allows automatic and remote control of the camera, with the ability to display multiple camera images in different windows. A video recording and snapshot function allows complete analysis and documentation of video sequences with detailed frames. The PIX Connect software features many different language options including a translation tool, and can display temperature in °C or °F. It is compatible with Windows Vista, 7, 8, and 10.

Spec Sheets

Optris Xi410 Infrared Camera Datasheet (1.0 MB)

Software

Optris PIX Connect Thermal Analysis Software Download

Manuals

Other

Optris Infrared Camera Brochure PDF (4.3 MB)

Links

Optris ACLSED Emissivity Labels

Optris ACLSED Emissivity Labels

70 labels for measuring reflective surfaces, ε=0.95, 25mm diameter, -40 to 716°F, only suitable for 8-14µm spectral response.

Optris ACXIFB Mounting Bracket

Optris ACXIFB Mounting Bracket

Stainless steel mounting bracket with tripod thread, adjustable in 1 axis, for the Optris Xi series infrared camera.

Optris ACCTXLMN Mounting Nut

Optris ACCTXLMN Mounting Nut

Stainless steel M30x1 for the Optris Xi series infrared camera.

Optris ACXICERT Calibration Certficiate

Optris ACXICERT Calibration Certficiate

Certificate of calibration for the Optris Xi series infrared camera.

Starting at $220.00

Optris ACXIIOCB1 I / O / RS485 cable

Optris ACXIIOCB1 I / O / RS485 cable

Optris ACPIUSB5P USB Cable

Optris ACPIUSB5P USB Cable

Available as standard or high temperature (356°F) for Xi 400, CSvision, and PI series.

Starting at $70.00

Optris ACCTXLAP Air Purge Collar

Optris ACCTXLAP Air Purge Collar

Stainless steel with G 1/8in thread & 6x8mm hose connection for CT XL 3M.

Optris ACXIAPL Air Purge

Optris ACXIAPL Air Purge

Air purge for Xi, laminar, included protective window (Si).

Optris ACXIS Shutter

Optris ACXIS Shutter

Shutter for Xi with servo drive for protection of the camera optics, 30ms fast-closing mode.

Starting at $740.00

Optris ACXISW Shutter

Optris ACXISW Shutter

Shutter for Xi with servo drive for protection of the camera optics, 30 ms fast-closing mode.

Starting at $750.00

Optris ACXIAPLAB Mounting Bracket

Optris ACXIAPLAB Mounting Bracket

Mounting bracket for Xi, adjustable in two axis, usage with Air purge or with Air purge + Shutter.

Optris ACXIW Water Cooled Housing

Optris ACXIW Water Cooled Housing

Water cooled housing for Xi, for Tamb up to 250°C, adjustable in two axis.

Optris ACXI400WAK Assembling Kit

Optris ACXI400WAK Assembling Kit

Assembling kit for Xi 400 Water cooling, with or without air purge.

Starting at $85.00

Optris ACXIAPLPWSI Spare Protective Window

Optris ACXIAPLPWSI Spare Protective Window

Spare protective window (Si) for Xi air purge, laminar.

Optris ACXI80IAC IR App Connector

Optris ACXI80IAC IR App Connector

45cm cable with USB-C or Mini-USB plug for Xi 80 and Xi 410 series cameras.

Starting at $60.00

Optris ACXIPIF Industrial Process Interface

Optris ACXIPIF Industrial Process Interface

500 VACRMS isolation voltage between Xi80 & process, stackable up to 3 PIFs.

Starting at $415.00
