E+H Deltapilot FMB70 Pressure Sensor

Condensate resistant Contite measuring cell and two-chamber housing, typically used in the process and hygienic applications.

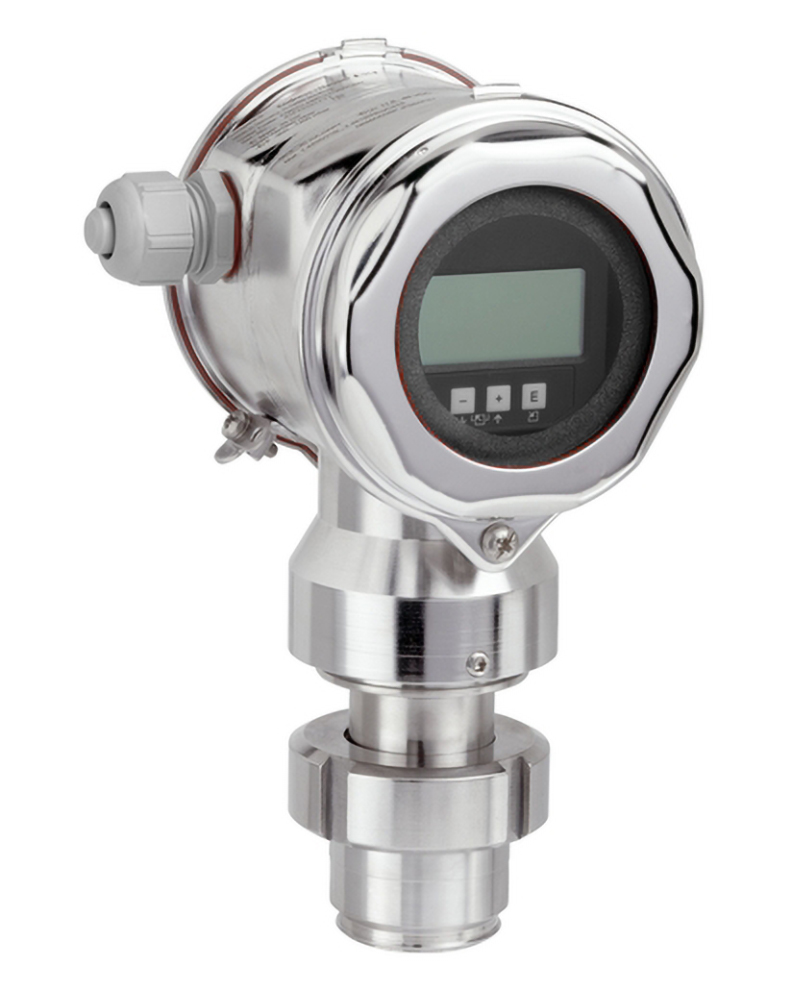

E+H Deltapilot FMB70 Pressure Sensor

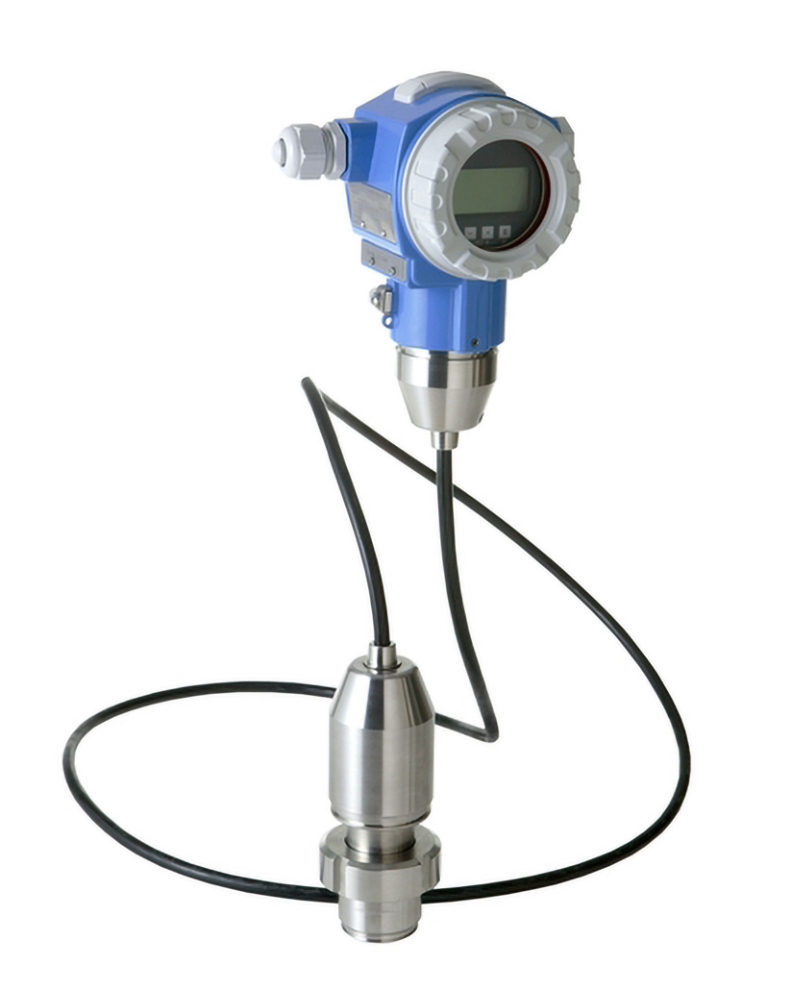

E+H Deltapilot FMB70 Pressure Sensor Separate Housing

Starting at $2,525.23

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Threads, flanges and hygienic process connections
14 to 212°F (–10 to 100°C) (275°F (135°C) for 30 minutes maximum) temperature
0.1 to 10 bar rel. (1.5 to 150 psi) measuring range
±0.075% accuracy
Supply / Communication
- 4 to 20mA HART:
- 10,5 to 45V DC
- Ex ia: 10,5 to 30V DC
- PROFIBUS PA /
- FOUNDATION Fieldbus:
- 9 to 32V DC (Non Ex)
ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC
Overfill prevention WHG, SIL
EN10204-3.1, NACE MR0175, MR0103
3A, EHEDG, CoC ASME-BPE
GL/ DNV, NSF

The E+H Deltapilot FMB70 with the condensate resistant Contite measuring cell and two-chamber housing is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. The integrated HistoROM/M-DAT data module makes management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety systems.

Spec Sheets

E+H Deltapilot FMB70 Pressure Sensor Data Sheet PDF (2.0 MB)

Manuals

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Sensor Range and Sensor Overload Limit	Membrane Material and Seal	Process Connection	Price	Available
FMB70-ABC1F42AFCAA Show Full Configuration	400mbar/40kPa/6psi/4mH2O/160inH2O 8bar/800kPa/120psi/80mH2O/3200inH2O	AlloyC276; welded	NPS 2in Cl.150 RF, 316/316L, flange ASME B16.5	$3,042.24	3 in stock
FMB70-ABD1F4257CAA Show Full Configuration	400mbar/40kPa/6psi/4mH2O/160inH2O 8bar/800kPa/120psi/80mH2O/3200inH2O	AlloyC276; welded	Universal adapter 44mm 316L, ext. 6in,3A, incl. silicone shape seal	$3,341.46	3 in stock
FMB70-ACT1H4257CAA Show Full Configuration	1.2bar/120kPa/18psi/12mH2O/480inH2O 24bar/2.4MPa/350psi/240mH2O/9500inH2O	AlloyC276; welded	Universal adapter 44mm 316L, ext. 6in,3A, incl. silicone shape seal	$3,238.03	1 in stock
FMB70-UCC1HA22DLAA Show Full Configuration	1.2bar/120kPa/18psi/12mH2O/480inH2O 24bar/2.4MPa/350psi/240mH2O/9500inH2O	AlloyC276; welded	Thread ANSI MNPT1-1/2, 316L	$2,951.33	1 in stock
FMB70-XBC1HA2CFCAA Show Full Configuration	1.2bar/120kPa/18psi/12mH2O/480inH2O 24bar/2.4MPa/350psi/240mH2O/9500inH2O	AlloyC276; welded	DN50 PN10/16 B1, 316L, flange EN1092-1 (DIN2527 C)	$3,042.24	1 in stock

Base Price:: $2,525.23
Approval Type: Non-hazardous
Approval: Non-hazardous area
Output and Operating: 4-20mA HART; inside + LCD (+$147.28)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
Sensor Range and Sensor Overload Limit: 400mbar/40kPa/6psi/4mH2O/160inH2O 8bar/800kPa/120psi/80mH2O/3200inH2O
Calibration and Unit: Sensor range; inH2O/ftH2O
Membrane Material and Seal: AlloyC276; welded
Process Connection: NPS 2in Cl.150 RF, 316/316L, flange ASME B16.5 (+$369.73)
Fill Fluid: Synthetic oil (FDA)
Additional Option 1: Not selected
Additional Option 2: Not selected
Application Package: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Base Price:: $2,525.23
Approval Type: Non-hazardous
Approval: Non-hazardous area
Output and Operating: 4-20mA HART; inside + LCD (+$147.28)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; M12 plug T14 = side cover (+$97.15)
Sensor Range and Sensor Overload Limit: 400mbar/40kPa/6psi/4mH2O/160inH2O 8bar/800kPa/120psi/80mH2O/3200inH2O
Calibration and Unit: Sensor range; inH2O/ftH2O
Membrane Material and Seal: AlloyC276; welded
Process Connection: Universal adapter 44mm 316L, ext. 6in,3A, incl. silicone shape seal (+$571.80)
Fill Fluid: Synthetic oil (FDA)
Additional Option 1: Not selected
Additional Option 2: Not selected
Application Package: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Base Price:: $2,525.23
Approval Type: Non-hazardous
Approval: Non-hazardous area
Output and Operating: 4-20mA HART; inside
Housing, Cover Sealing and Cable Entry: T17 316L hyg. IP66/68 NEMA6P;EPDM;NPT1/2 thread, T17 = side cover, hygiene (+$141.00)
Sensor Range and Sensor Overload Limit: 1.2bar/120kPa/18psi/12mH2O/480inH2O 24bar/2.4MPa/350psi/240mH2O/9500inH2O
Calibration and Unit: Sensor range; inH2O/ftH2O
Membrane Material and Seal: AlloyC276; welded
Process Connection: Universal adapter 44mm 316L, ext. 6in,3A, incl. silicone shape seal (+$571.80)
Fill Fluid: Synthetic oil (FDA)
Additional Option 1: Not selected
Additional Option 2: Not selected
Application Package: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Base Price:: $2,525.23
Approval Type: CSA
Approval: CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I Div.2 Gr.A-D, Ex ia, C (+$40.72)
Output and Operating: 4-20mA HART; inside
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
Sensor Range and Sensor Overload Limit: 1.2bar/120kPa/18psi/12mH2O/480inH2O 24bar/2.4MPa/350psi/240mH2O/9500inH2O
Calibration and Unit: Sensor range; %
Membrane Material and Seal: AlloyC276; welded
Process Connection: Thread ANSI MNPT1-1/2, 316L (+$65.79)
Fill Fluid: Inert oil, PWIS free, PWIS = paint-wetting impairment substances (+$319.59)
Additional Option 1: Not selected
Additional Option 2: Not selected
Application Package: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Base Price:: $2,525.23
Approval Type: CSA
Approval: CSA C/US General Purpose
Output and Operating: 4-20mA HART; inside + LCD (+$147.28)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
Sensor Range and Sensor Overload Limit: 1.2bar/120kPa/18psi/12mH2O/480inH2O 24bar/2.4MPa/350psi/240mH2O/9500inH2O
Calibration and Unit: Sensor range; %
Membrane Material and Seal: AlloyC276; welded
Process Connection: DN50 PN10/16 B1, 316L, flange EN1092-1 (DIN2527 C) (+$369.73)
Fill Fluid: Synthetic oil (FDA)
Additional Option 1: Not selected
Additional Option 2: Not selected
Application Package: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
FMB70X-A1H202CAA	Call for information	7	Call to order
FMB70-ABT1HF262CAALB	Call for information	1	Call to order
FMB70-QAC1PH2TDCBAKF	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
