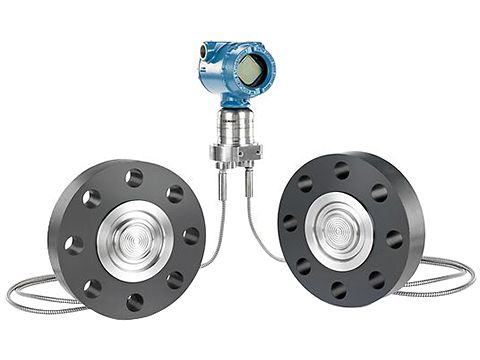

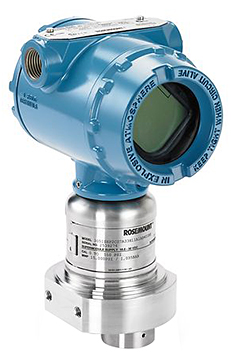

Rosemount 3051SHP High Static Differential Pressure Transmitter
Transmitter designed for harsh production conditions and that can withstand static pressures up to 15,000 psi.
Overview
Features
- Up to 150 psi (10.34 bar) differential with
max working pressure up to 15,000 (1034 bar) - 37,500 psi (2,585 bar) burst pressure limit
- 0.055% span accuracy
- Up to 150:1 rangedown
- Optional PlantWeb functionality
- Up to 15-year limited warranty
Description
The Rosemount 3051SHP high static differential pressure transmitter incorporates the robust SuperModule design, backed by 10-year stability, to withstand harsh production conditions. A no-equal solution, this transmitter provides differential pressure and temperature measurements, and is designed with a coned and threaded direct connection to withstand high static pressures of up to 15000 psi (1034 bar). The all-welded, hermetic design resists overpressure and line pressure effects to ensure 0.055% accuracy. The innovative, compact, coplanar platform reduces up to 60% of the weight versus today's high pressure transmitters.
The Rosemount 3051SHP integrates seamlessly with 4-20 mA HART version 7, WirelessHART, and FOUNDATION fieldbus protocols for application flexibility. Advanced diagnostics offer comprehensive diagnostic coverage from the process to the transmitter to the host.
This transmitter allows operations to be optimized in critical areas such as production, quality, energy efficiency, and safety and environment. By leveraging the power of the scalable Rosemount 3051S across your entire operation, you'll be able to minimize process variability, gain greater process insight, reduce maintenance and downtime, and meet regulatory demands. Since the transmitter is easy to use, you are able to realize the full potential of the measurement investment.
Documents
Spec Sheets
Manuals
- Rosemount 3051S High Static Differential Pressure Transmitter Manual - HART (10.2 MB)
- Rosemount 3051S High Static Differential Pressure Transmitter Manual - WirelessHART (6.0 MB)
- Rosemount 3051S High Static Differential Pressure Transmitter Manual - Foundation Fieldbus (11.4 MB)
