MSI VibVue Motion Magnification

Collects data equivalent to millions of accelerometers, analyzes, and quantifies vibratory motion up to and over 500Hz.

MSI VibVue Motion Magnification
MSI VibVue Motion Magnification
MSI VibVue Motion Magnification

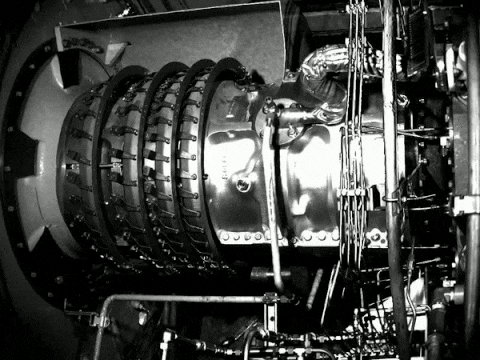

MSI VibVue High-Speed Vibration Analysis of Gas Turbine Piping at 16Hz

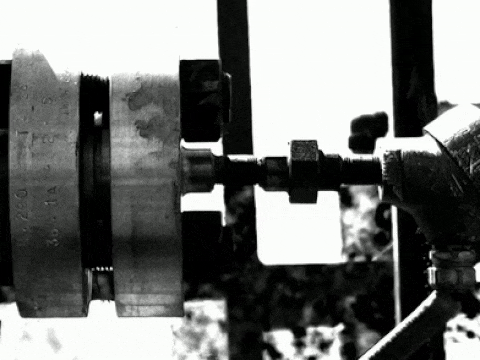

MSI VibVue High-Speed Vibration Analysis of RTD Connection at 44Hz
MSI VibVue High-Speed Vibration Analysis Product Video
Understanding VibVue - Displacement vs. Field of View
Understanding VibVue - Frame Rate vs. Resolution

Select options for pricing

View Company Reviews

Manufactured

By Mechanical Solutions Inc

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Specs

Features

Amplify or slow vibration to be visible to the human eye
Determine the vibration frequency of any visible point
- Filter by frequency to isolate specific movements
Info is displayed on the actual image of your equipment
- Much clearer and more accurate than modal ODS
High-resolution for down to 0.0001 inch measurement
Lights: 16,000 lux at 1m, 1,700 lux at 3m
Standard camera (optional):
- Minimum displacement and motion magnification detection threshold at 10’/3m FOV: 0.1 mils/2.5 microns pk-pk
  <15% error
- Frequency at default resolution: 156Hz @ 1920x600
- High Frequency at resolution: 429Hz @ 1920x200
- Frequency at max resolution: 78Hz @ 1920x1200
- Powered by USB
High-frequency camera (optional):
- Minimum displacement and motion magnification detection threshold at 10’/3m FOV: 0.2 mils/5 microns pk-pk
  <20% error
- Frequency at default resolution: 640Hz @ 1280x720
- High frequency at resolution: 2,230Hz @ 1280x200
- Frequency at max resolution: 454Hz @ 1280x1024
- Powered by AC

What's in the Box

VibVue standard or Pro software, 2 licenses (depending on selected package)

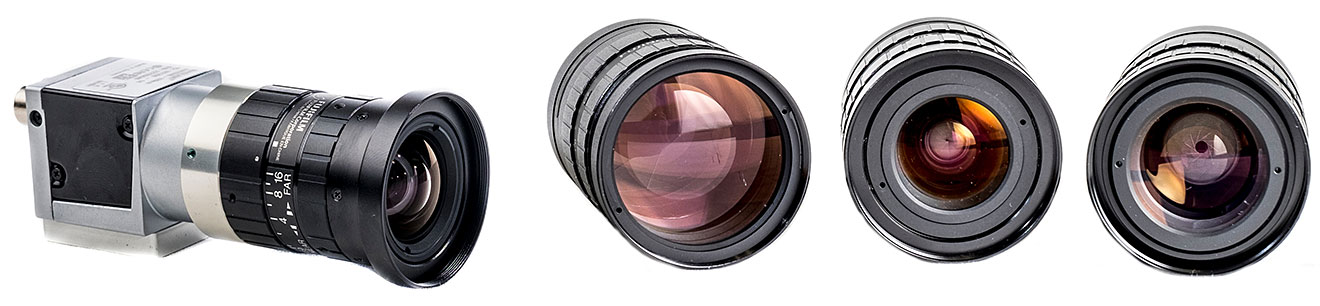

Four lenses
Tripod
Laptop with Windows 10
Light kit (two lights with stand)
Distance meter
Cables
MSI site training for one person or four people (depending on selected package)
One-year maintenance and support

MSI VibVue motion magnification for high-speed vibration analysis allows you to see the natural excitation signature of your machine or structure, including higher order modes, such as those caused by vane or blade pass frequencies. This process facilitates quick and comprehensive understanding of the object in motion.

With MSI VibVue you can measure millions of data points in minutes without touching the equipment. The high-speed video determines the frequency at each pixel from a safe distance, great for restricted areas. Then, all this information is displayed on the actual image so there is no question about what you are looking at.

MSI VibVue is much clearer and more accurate than modal operating deflection shape (ODS) which takes more time to place hundreds of test points (all for less data), is susceptible to human error because it requires judgement about where to place the probes, and displays as a roughly rendered CAD drawing.
