Erbessd Instruments DigivibeMX Series Vibration Analyzer

Complete, reliable and productive system for vibration analysis and dynamic balancing.

Erbessd Instruments DigivibeMX M30 Vibration Analyzer
Erbessd Instruments DigivibeMX M20 Vibration Analyzer

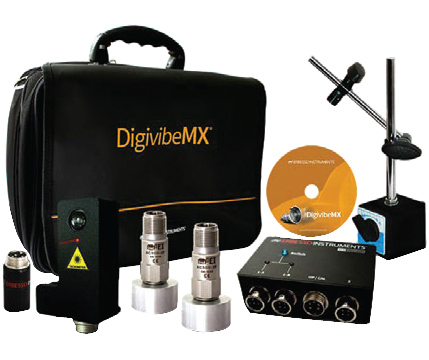

Erbessd Instruments DigivibeMX M10 Vibration Analyzer
Erbessd Instruments DigivibeMX Series Vibration Analyzer - 4 Channel Interface
Erbessd Instruments DigivibeMX Series Vibration Analyzer - Accelerometer
Erbessd Instruments DigivibeMX Series Vibration Analyzer - Optic Sensor
Erbessd Instruments DigivibeMX Series Vibration Analyzer - Tachometer Magnetic Base

Starting at $4,699.95

View Company Reviews

Manufactured

By Erbessd Instruments

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 3-5 weeks

Product Specs

Features

Analysis and balancing reports
FFT Spectra
4 Channel, Trial Capable Option
Multi language
Predictive Analysis Tools (M20/M30 only)
Dynamic balancing in 1 and 2 planes (M10/M30 only)
ODS function (M20/M30 only)
3d cascade (M20/M30 only)

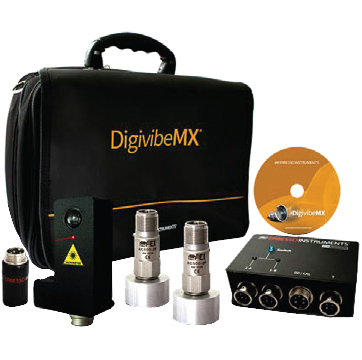

What's in the Box

2 Accelerometers
Laser Optical Sensor
Magnetic base for optical sensor
1 USB 4-channel Interface
User manual
Softcase

The Erbessd Instruments DigivibeMX Series Vibration Analyzer is a complete, reliable and productive system for vibration analysis and dynamic balancing. The DigivibeMX Series allow you to do simple and complex analysis in both on and off route modes. The Balancing functions can be used in situ and on balancing machines. The intuitive interface is perfect for novice and expert users alike. Advanced features allow you to diagnose complex problems in machinery and structures avoiding high costs of downtime, collateral damage, and unplanned repairs.

The spectral analysis tool in the DigivibeMX Series is based on the FFT algorythm, able to measure very low frequencies (0.4 Hz) up to 30kHz. The precision of the spectra adjust based upon the point definition and can reach 2 million lines of resolution.

The DigivibeMX M20 and M30 feature a Dual Channel function that offer saves time for the data collection. They also have an expandable data base with failure frequencies of more than 23,000 bearings. The M20 and M30 Kits include functions for frequencies calculation and analysis of gear boxes.

The DigivibeMX M30 has an optional Master Analyst (MA) upgrade. The kit includes:

1 licence M30 for 3 installations (L3-DV-30)
1 wireless triaxial accelerometer Wiser 3X w/ aditional channel (WISER 3X) & magnetic base (MGT-W3X)
1 adapter-cable for charging battery (C-L-MUSB)
1 accelerometer 5V (AC500-3P) & magnetic base (MGT-AC)
1 2m cable 3-pin connector (C2M-L-3P)
2 laser tachometer (OP20-5P) & 2 2m cable (C2M-L-5P)
1 4ch interface GX400 (INT4-GX400) & data cable USB-4L (C1M-USB-4L)
1 triaxial accelerometer 6.5 kHz 100mV/g 4-pin 24V 5mA (AC115-1D)
2 accelerometers 24V (AC500-2P) & magnetic base (MGT-AC)
2 2m cables 2-pin connector (C2M-L-2P)
1 tablet Surface Pro Core i5 with protection case & stylus pen (TAB-SP)
1 hardcase (MRD)

Spec Sheets

Erbessd Instruments DigivibeMX M30 Vibration Analyzer Datasheet (566 KB)

Here's how some of our customers use this product...

Added Value Service

The Background: Our customer is a pump servicing company which is looking for an edge on its competition by offering health reports on the pumps they service to provide additional value to their customers.

The Problem: The customer is looking for a simple and reliable means of a range of parameters that will indicate the health of motors and pumps.

The Solution: We recommended the Erbessd DigivibeMX Series Vibration Analyzer, a complete, reliable and productive system for vibration analysis and dynamic balancing. The DigivibeMX Series allow users to do simple and complex analysis in both on and off route modes. The Balancing functions can be used in situ and on balancing machines. The intuitive interface is perfect for novice and expert users alike. Advanced features allow users to diagnose complex problems in machinery and structures avoiding high costs of downtime, collateral damage, and unplanned repairs.
