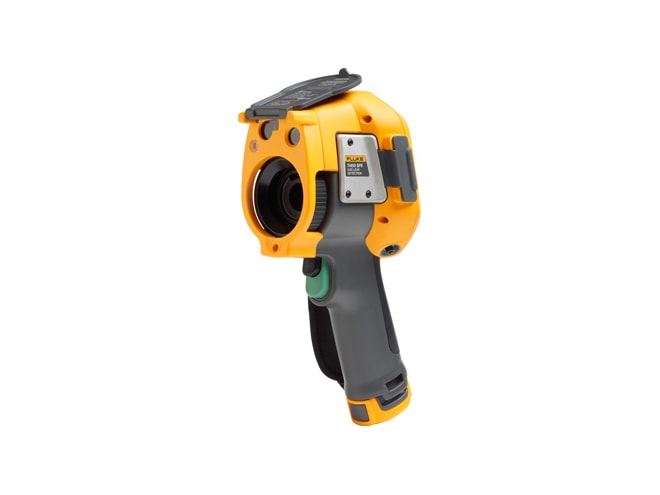

Fluke Ti450 SF6 Leak Detector & Infrared Camera

307,200 pixels (640 x 480) with SuperResolution, -4 to 2192°F, sensitivity of ≤0.05°C, SF6 gas leak detector.

Fluke Ti450 SF6 Leak Detector & Infrared Camera
Fluke Ti450 SF6 Leak Detector & Infrared Camera

Retired products cannot be ordered

View Company Reviews

Part Number

FLK-Ti450 SF6 60Hz

Manufactured

By Fluke

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Specs

Features

Temperature range from -20 to 1200°C (-4 to 2192°F)
±2°C or 2% accuracy
76,800 pixel standard resolution (320 x 240)
- 307,000px (640 x 480) in SuperResolution mode
MultiSharp focus captures clear, accurate image
- 24° x 17° field of view
Streaming video (USB and HDMI)
60Hz image capture frequency
LaserSharp Auto Focus & built-in laser distance meter
Records thermal video with audio (.avi)
2x and 4x digital zoom
Voice or text annotation
On-screen emissivity correction
IR-Fusion technology

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Looking for a fever screening solution? Here's a list of approved items.

The Fluke Ti450 SF6 Leak Detector & Infrared Camera detects and pinpoints the exact location of the SF6 leak–without shutting down equipment. The Ti450 Infrared Camera is powerful, high performance thermal imaging camera that is loaded with features to make troubleshooting fast and easy. The imager is handheld and is provided with an easy-to-use interface. With a standard 76,800 pixel resolution (320 x 240) the Ti450 includes a SuperResolution mode which provides a massive 307,000 pixel resolution (640 x 480) for incredible clarity.

The Fluke Ti450 Infrared Camera has a measurement range of -4 to 2192°F (-20 to 1200°C) and an accuracy of ±2°C or 2% (whichever is greater). The imager is equipped with both MultiSharp focus to captures clear, accurate image throughout the field of view as well as LaserSharp auto focus which uses a laser distance meter to identify the perfect focal distance for perfectly focused images. Simply place the red laser sighting dot on the object you are inspecting, then pull and release the trigger for a perfect in-focus image. The Ti450 has an on-screen emissivity correction, on-screen reflected background temperature compensation and on-screen transmission. The image capture frequency is 60Hz.

The Ti450 detects issues faster with patented Fluke IR-Fusion technology with AutoBlend mode which overlays digital and thermal images making it easier to identify problems. Faster communication is provided via Fluke Connect which permits wireless image transfer directly to your PC, Apple iPhone or iPad. The Ti450 features a ruggedized high resolution 640x480 capacitive touch screen for quick menu navigation. Audio nor text annotations help provide context of the images when they are viewed at a later time.

Spec Sheets

Fluke Ti450 SF6 Leak Detector & Infrared Camera Datasheet PDF (2.4 MB)

Application Notes and White Papers

Fluke Professional Tool Backpack

Durable high-quality polyester, injection molded plastic bottom base, six storage compartments.

$238.99

Here's how some of our customers use this product...

Detect Gas Leaks While Inspecting Substations

The Background: Our customer is an electric utility that utilizes Gas-Insulated Substations (GIS) and needs to implement an inspection protocol to detect leaks of Sulphur hexafluoride.

The Problem: Gas-Insulated Substations use Sulphur hexafluoride (SF6) as a gaseous dielectric medium for high-voltage circuit breakers, switchgear, and other electrical equipment, often replacing oil filled circuit breakers (OCBs) that can contain harmful PCBs. SF6 is, however, an extremely powerful greenhouse gas such that regulations require periodic inspections for leaks.

The Solution: The Fluke Ti450 leak detector and infrared camera is the perfect instrument for inspecting Gas-Insulated Substations. Not only does it detect and pinpoint the exact location of an SF6 leak without shutting down equipment, it’s also a 76,800 pixel thermal imager with a measuring range of -4 to 2192°F enabling it to identify potential risks due to loose connections and other electrical hazards.
