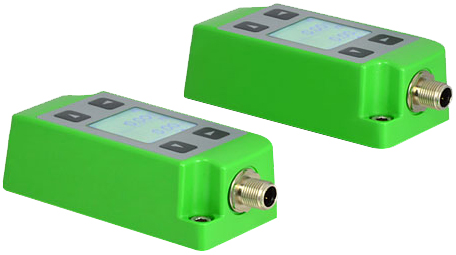

E+E EE741 Inline Flow Meter

Modular, compact, inline flow meter for compressed air and gases, hot film sensor element.

Starting at $1,293.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs

Features

  • Modular design
  • Hot film sensor element
  • Selectable pipe sizes / ranges:
    • 1/2 to 1in (DN15 to DN25) up to 124.71 SCFM
    • 1-1/4 to 2in (DN32 to DN50) up to 493.35 SCFM
  • Application-specific adjustment under pressure
  • Output options
    • 0/4 to 20mA, Pulse, & Switch
    • Modbus RTU
    • M-Bus
  • 18 to 30 VDC supply
  • Mounting blocks ordered separately

The E+E EE741 Inline Flow Meter is dedicated for accurate metering and monitoring of compressed air and technical gases.

The thermal measuring principle and the well-proven E+E hot film sensor element lead to best long-term stability and fast response time. Outstanding measuring accuracy, even in the lower measuring range is achieved by an application-specific multi-point factory adjustment, which is performed at 102 psi (7 bar). This allows reliable leak detection and corresponding energy savings. The construction of the EE741 is optimized for easy installation and maintenance.

Applications for the EE741 include:

  • Compressed air consumption measurement
  • Flow measurement of technical gases (O2, N2, Ar, CO2)
  • Nitrogen generators
  • Leak detection

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+E EE741 Mounting Block
E+E EE741 Mounting Block

Required mounting block for the EE741 Inline Flow Meter, BSP or NPT thread options.

Starting at $283.00

Accessories

Please consider these optional accessories.

E+E HA010824 M12x1 Cable
E+E HA010824 M12x1 Cable

4 pole 2m female cable.

$17.00
E+E Inlet & Outlet Path BSP Thread
E+E Inlet & Outlet Path BSP Thread

Stainless steel for mounting block.

Starting at $228.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Measuring Total Oxygen Consumption

The Background: Our customer is an industrial fabricator seeking a means to measure the amount of oxygen being used by the numerous cutting torches used at their facility.

The Problem: The shop floor includes many cutting torches which use a great deal of oxygen. The customer has never measured the total amount of oxygen used by these torches. In an effort to control costs, they now want to measure the total oxygen used.

The Solution: We recommended the E+E EE741 Inline Flow Meter which has been optimized for accurate metering and monitoring of compressed air and technical gases. The sensing element provides long-term stability and a fast response time. Outstanding measuring accuracy, even in the lower measuring range is achieved by an application-specific multi-point factory adjustment. This set-up has allowed the customer to carefully track their oxygen usage.
