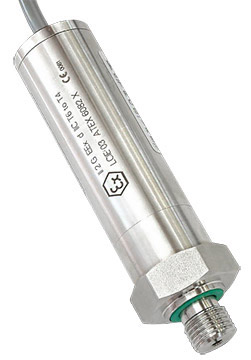

Keller 23 Ed / 25 Ed Pressure Transmitters
Piezoresistive pressure transmitters with pressure proof housing are approved for use in explosion risk areas of group II.
Overview
Features
- Pressure range: -1 up to 300 bar
- Analog electronics
- Accuracy: 0.2 %FS
- Temp range: 14 to 176°F(-10 to 80°C)
- Material options: stainless steel 1.4435 (316L) or Viton
- PUR-cable, length 2m electrical connection
Description
The Keller 23 Ed / 25 Ed Pressure Transmitters are analog piezoresistive pressure transmitters with pressure proof housing are approved for use in explosion risk areas of group II. They provide stable and accurate measurements of absolute and gauge pressures of liquid and gaseous media in the pressure range between 0,1 and 300 bar.
The modular structure of this product range allows highly flexible applications and solutions that are tailored to users‘ requirements. Numerous versions are available, for example with different pressure connections, materials and filling oils, or versions for use with oxygen and with special performance characteristics.
This series is based on the stable piezoresistive transducer with analog electronics. The zero point and sensitivity, and the temperature coefficients for the zero point and sensitivity, are compensated by resistors and/or potentiometers.
Documents
Applications
This product can be used in the following applications:
- Agricultural
- Automotive
- Brewing & Fermentation
- Building Automation Systems
- Cold Chain Storage Monitoring
- Compressed Air
- Environmental Monitoring
- Explosive or Hazardous Areas
- Food / Beverage
- HVAC/R System Monitoring
- Intrinsically Safe
- Oil, Gas and Petrochemical
- Paper
- Pharmaceutical
- Pipe and Tube Inspection
- Refrigeration Control / Monitoring
- Research and Development
- Utilities
- Waste-water and Grey Water
