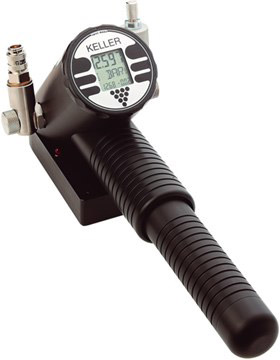

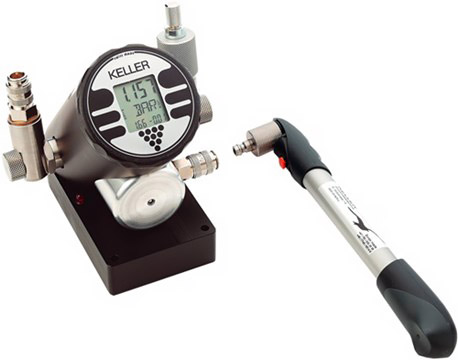

Keller Pressure Calibrators
Highly accurate, MPX, LPX and HPX portable pressure calibrators for ranges from vacuum to 700 bar.
Overview
Features
- Ranges:
- LPX: -0.85 to 10 bar
- MPX: -0.85 to 25 bar
- HPX: 0 to 700 bar
- Accuracy: < 0.05% of the full pressure range
- Measurement interval: 0.5 seconds
- Power supply: 3V battery, type CR2430
- Battery lifetime: > 2000 h in continuous operation
- USB interface converter included
- Compensated temperature range: 0 to 50 °C
- Operating temperature range: 0 to 50 °C
- Operating humidity range: 5 to 95% RH
- CE compliant / RoHS compliant
What's in the Box
- Hand pump
- Carrying case
- Spare battery
- Y-coupler (MPX)
- Hose nipple (LPX, MPX)
- Connection nipple, G 1/4" (LPX, MPX)
- Sealing rings (G 1/8" + G 1/4") (LPX, MPX)
- CrNi filter (LPX, MPX)
- Vacuum pump (LPX, MPX)
- Test object adapter G 1/4"–G 3/8" (HPX)
- Test object adapter G 1/4"–G 1/2" (HPX)
- Allen key (HPX)
- USB interface converter
- KELLER software CD
- Test record 5 points
- Operating instructions
Description
Keller pressure calibrators are highly accurate calibration instruments used to generate pressure in order to check and calibrate mechanical and electronic pressure measurement devices with the help of comparative measurements. Available in ranges from vacuum to 700 bar, these calibrators are completely self-contained and can provide power to the transmitter being calibrated, making possible field calibrations in remote locations where power is not available.
Keller pressure calibrators are easy to use. Both the pressure generator and the pressure display are integrated into functional housing. The pressure on a test object that is fitted to the calibrator can be built up quickly, and tracking is made easy thanks to the display. Measurement work is made easier by a wide range of functions, such as setting any desired pressure zero point, display of peak and trough pressure values, or leak measurements. Furthermore, the applied pressure can be displayed directly on a computer via the integrated interface (USB converter), after which it can be saved and processed or managed in any desired manner.
Documents
Spec Sheets
- Keller LPX Low Pressure Calibrator Datasheet PDF (628 KB)
- Keller MPX Medium Pressure Calibrator Datasheet PDF (634 KB)
- Keller HPX High Pressure Calibrator Datasheet PDF (587 KB)
Manuals
- Keller LPX Low Pressure Calibrator Manual PDF (1.3 MB)
- Keller MPX Medium Pressure Calibrator Manual PDF (1.3 MB)
- Keller HPX High Pressure Calibrator Manual PDF (1.3 MB)
Software
Links
Applications
This product can be used in the following applications:
