ScanSense Wing Union Pressure Transmitter

Intrinsically safe hammer union pressure transducer designed for use in harsh environments like offshore drilling.

Starting at $5,320.00

View Company Reviews
Manufactured
Includes
Availability
Product Specs (2 Files)

Features

  • ±0.2% accuracy
  • Range options from 5000 to 20,000psi max pressure
  • Safe overpressure to 1.5x rated pressure
  • Bursting pressure at 2.5x rated pressure
  • Integrated PT-1000 temperature transmitter (optional)
  • < ±0.1% FS/year drift
  • 0.02% full scale output repeatability
  • < ±0.05% FS hysteresis
  • < ±0.1% FS BSL linearity
  • 4-20mA (two wire) output
  • < 2ms response time
  • IP68 protection
  • EEx ia IIC T4, II 2 G, ATEX directive 94/9/EC
  • RFI/EMI protected
  • CE approved

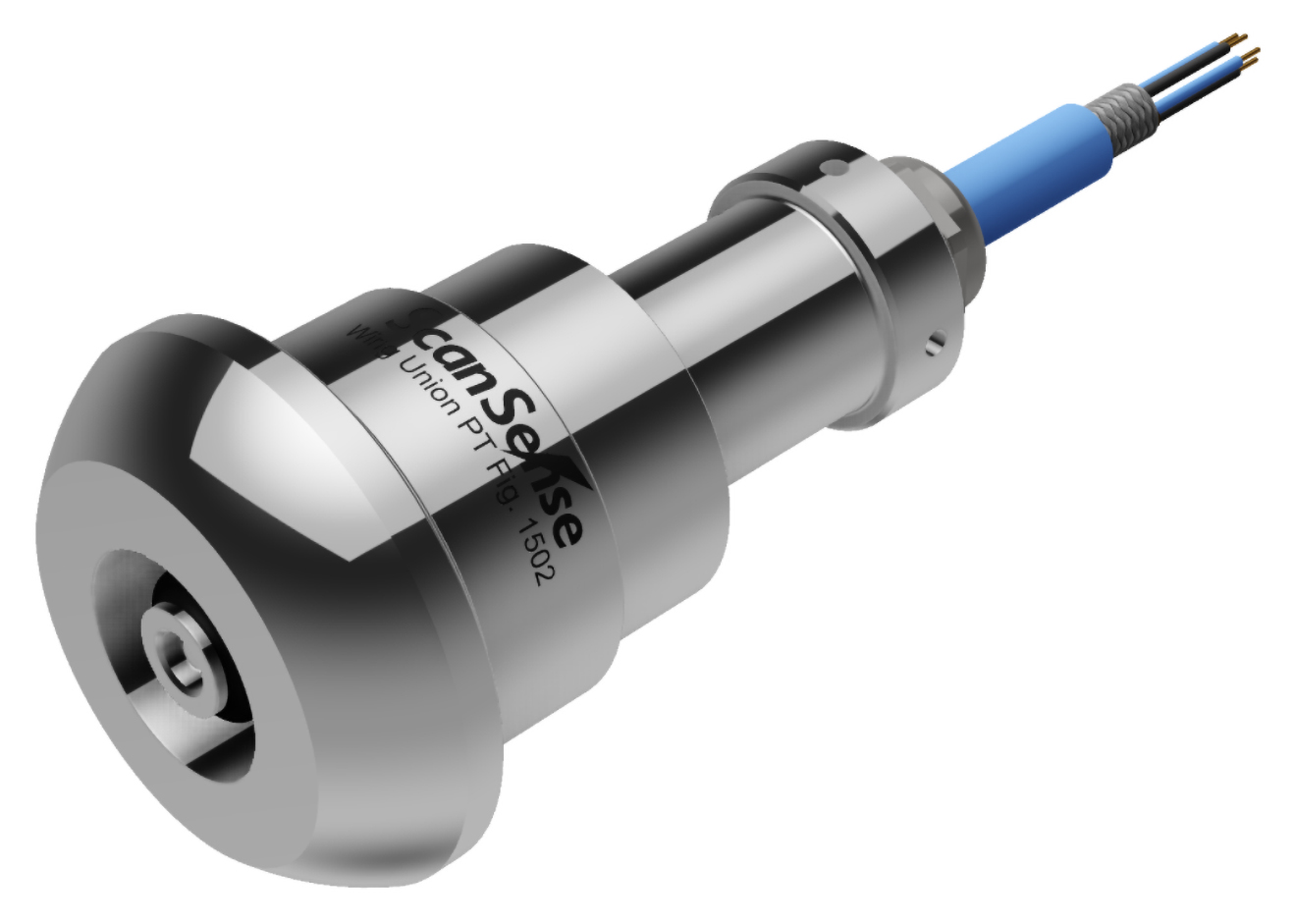

The ScanSense wing union pressure transmitter is an extremely rugged pressure sensor designed for use with the two-inch wing union in the rough and demanding environment of high-pressure applications for both on-shore and off-shore industries.

This hammer union pressure transducer includes a diaphragm with a thin film single bridge strain gauge and a PT-1000 temperature sensor which eliminates long-term signal drift in the field. The electronic circuits are calibrated and temperature compensated in digital mode with an analog 4-20mA output signal.

The hammer union pressure transmitter is designed to withstand vibration and shock as well as pressure peaks during operation. The union compatible fittings are machined of Hastelloy C22 providing service with highly abrasive and corrosive media. Both configurations of the pressure transducer comply with international accepted standards for materials operating in corrosive environments.

Wing Union Transmitter Applications include:

  • Mudlogging
  • Wellhead Measurements
  • Drilling
  • Fracturing
  • Cementing
  • Acidizing

This product can be used in the following applications:

Part Number Model Pressure Rating Connection Integral RTD Price Available
5WU1502-20-10-3
Show Full Configuration

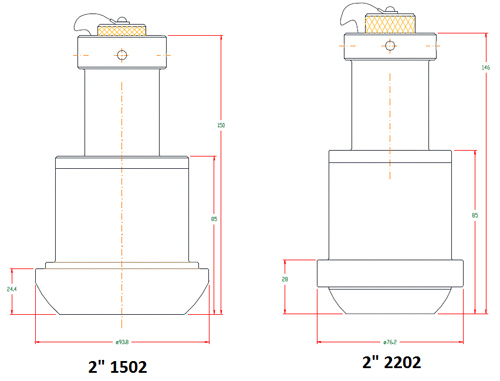

Model 1502 (See schematic for exact dimensions)
10,000 psi
10 meter fixed cable (Draka BFOU(i) 250V; Subsea)
Without
 $5,049.33 2 in stock
5WU2202-20-15-3PT
Show Full Configuration
Model 2202 (See schematic for exact dimensions)
15,000 psi
10 meter fixed cable (Draka BFOU(i) 250V; Subsea)
With PT1000 RTD
 $5,402.66 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
