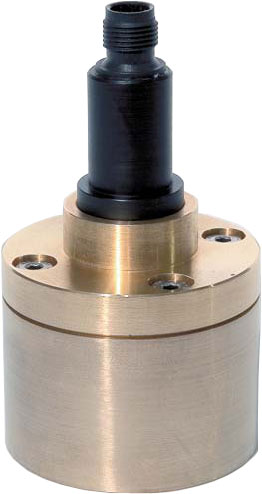

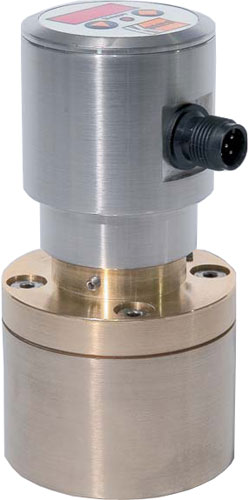

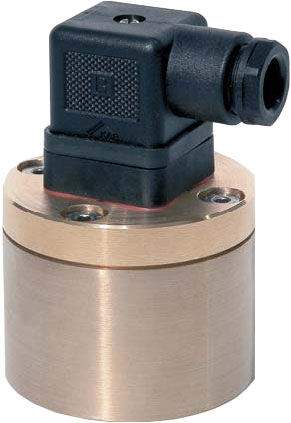

Kobold DRZ Series Positive Displacement Flow Meter

Piston type positive displacement flow meter with flow ranges from 1.6 to 110 GPH .

Kobold DRZ Series Positive Displacement Flow Meter — Kobold DRZ Series Piston Type Positive Displacement Flow Meter

Kobold DRZ Series Piston Type Positive Displacement Flow Meter
Kobold DRZ Series Piston Type Positive Displacement Flow Meter
Kobold DRZ Series Piston Type Positive Displacement Flow Meter
Kobold DRZ Series Piston Type Positive Displacement Flow Meter

Retired products cannot be ordered

View Company Reviews

Manufactured

By Kobold

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Low and medium viscosity liquids
Flow range: 1.6 - 110 GPH
Accuracy: ±1.0% of reading
Repeatability: ±0.2% of reading
5 - 100 cSt viscosity range
Maximum pressure: 580 PSI

The Kobold DRZ series rotary piston positive displacement flow meter combines economy with high performance. The DRZ series is designed to measure any clean liquid with lubricating properties and viscosity ranging from 5 to 100 centistoke.

The unique design uses a single piston rotating on a camshaft to meter very precise volume of liquid with each rotation of the piston. Piston rotation is detected by a Hall effect sensor. The signal is processed by electronics into a blind pulse output (PNP or NPN based on model ordered) or a full featured controller with flowrate indication, analog output and switches.

An economical brass body is rugged and provides a pressure rating to 580 PSIG. The DRZ has a low pressure drop of 20 PSI maximum.

Use the DRZ with lubricating media such as:

Lubricating oil
Diesel fuel
Glycol mixtures
Waxes/pastes
Paint
Latex polymers
Sugar solutions
Detergents
