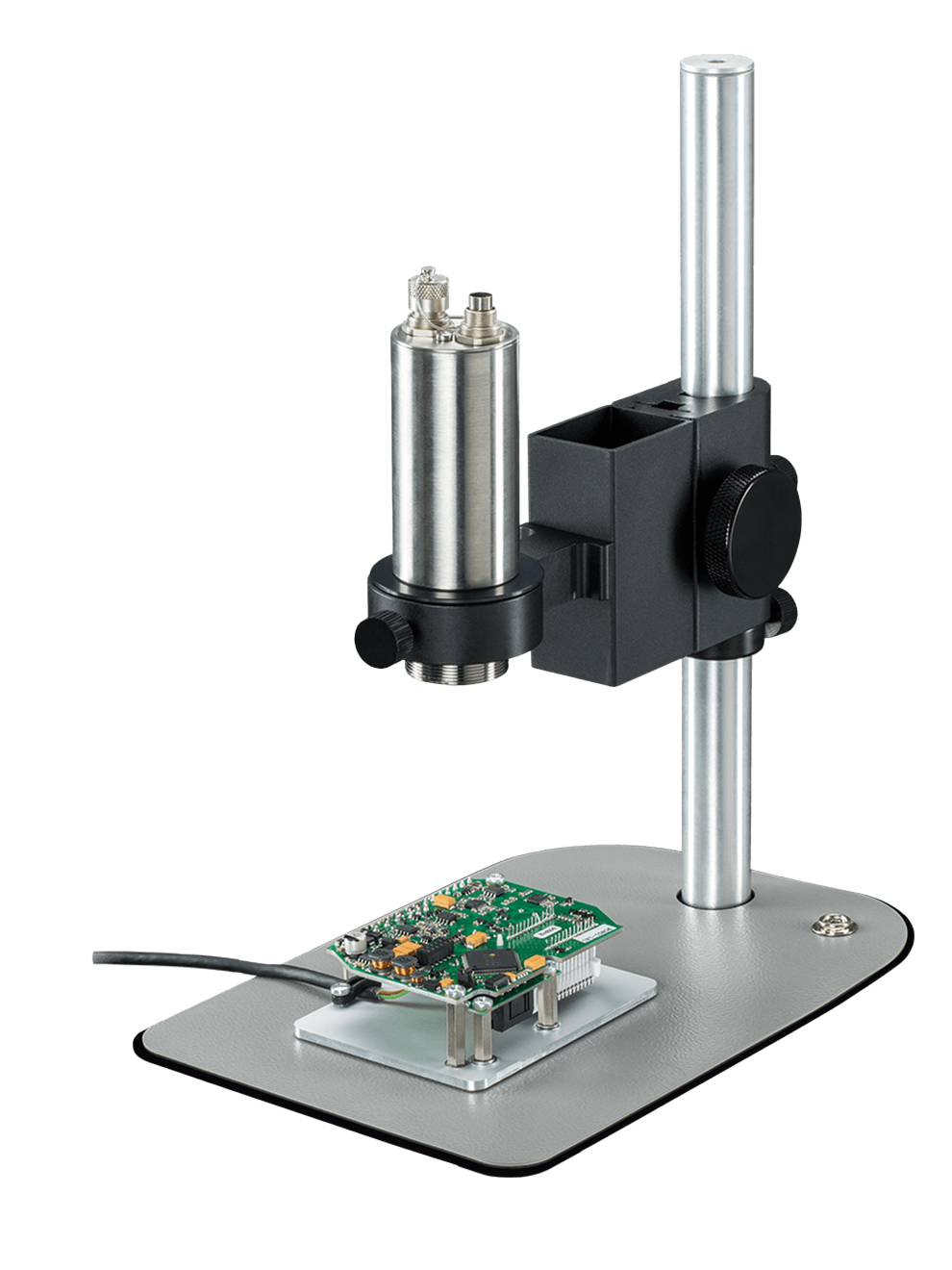

Optris OPTXI40LTF20CFKT090 Xi 410 Microscope Kit

382x288 pixel resolution, scalable temperature range up to 2732°F, 80mK sensitivity. Ideal for use in assembled circuit board inspections.

$2,850.00

View Company Reviews
Part Number
  • OPTXI40LTF20CFKT090
Manufactured
Includes
Availability
  • Manufacturer has 3 in stock
    This stock is typically available to ship in 2 - 3 working days.
Product Manual Product Specs

Features

  • Optical resolution: 382x288 pixels
  • Temperature range (scalable):
    • –20 to 100°C (–4 to 212°F)
    • 0 to 250°C (32 to 482°F)
    • 200 to 1500°C (392 to 2732°F)
  • Thermal sensitivity (NETD): 80mK @ 27Hz
  • MFOV: 240µm at 90mm
  • Smallest measuring spot (FOV): 81µm at 90mm
  • Instantaneous Field of View (IFOV): 80µm
  • Spectral range: 8 – 14µm
  • Microscope optics: 18° x 14° (f = 20mm)
  • Frame rate: 80 / 27Hz
  • Manual motor focus
  • Ambient temperature range: 0 to 50°C (32 to 122°F)
  • Detector: FPA, uncooled (17µm pitch)
  • Accuracy: ±2°C or ±2% (±4°F or ±2%), whichever is greater
  • PC interface: USB 2.0
  • Process interface (PIF): 0–10V input, digital input (max. 24V), 0–10V output
  • Certifications/approvals: IP67, NEMA 4, IEC 60068-2-27/6/64
  • Tripod mount: 1/4-20 UNC
  • Power supply: USB powered

What's in the Box

  • Optris Xi 400 infrared camera
  • Xi macro lens stand with ESD pad
  • USB cable (1m) (additional lengths available up to 20m upon request)
  • Standard PIF cable (1m) including terminal block
  • Mounting bracket with nut
  • PIX Connect Thermography Software package (compatible with Windows 7 through 11)

The Optris OPTXI40LTF20CFKT090 Xi 410 Microscope Kit centers the Xi 400 infrared camera with 382x288 pixel resolution, scalable temperature ranges starting from -4 to 212°F up through 392 to 2732°F, and a thermal sensitivity of 80mK. The unit's enclosure is IP67 (NEMA 4) rated, with shock and vibration protections. The OPTXI40LTF20CFKT090 is ideal for assessing circuit board components for defective parts, incorrectly sized circuit pathways and/or poorly soldered joints. The measuring range of the unit is between 90 and 110mm, with the smallest analyzable object starting at 240µm.

The manual motor focus feature allows for easy adjustments via the standard-issued thermography software package, PIX Connect. This license-free software allows the user to easily work with radiometric recordings, analyze temperature data in real time, set level alarms, and make other adjustments to best suit the application at hand. The USB 2.0 connection both allows the user to interface with a PC for datalogging and analysis via the license-free PIX Connect Thermography Software package included with each unit.
