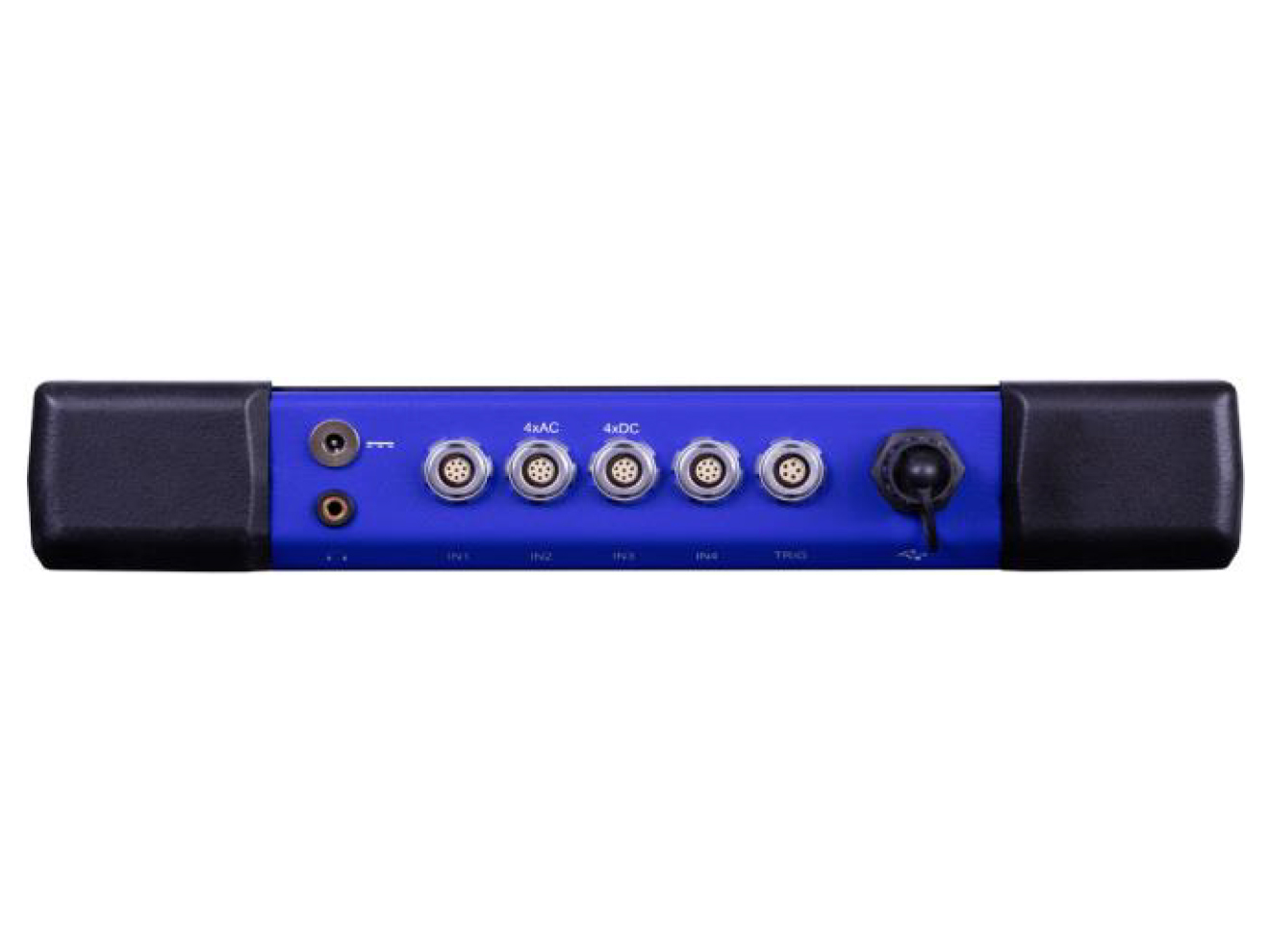

Adash A4500 VA5 Pro Vibration Analyzer

High powered vibration analyzer capable of measuring 4 process and 4 vibration signals along with speed simultaneously. Kits include transport gear and diagnostic software upgrades.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Adash A4500 VA5 Pro Four Channel Vibration Analyzer:
    • Sampling mode: fully simultaneous for 4 channels
    • 4 AC inputs for vibration measurement
    • 4 DC inputs for process values measurement
    • Tacho input (speed/trigger)
    • Input range:
      • AC +/- 12V peak-peak
      • DC +/- 24V
    • AD conversion: 24 bit, 64 bit internal signal processing (no auto-gain)
    • Frequency ranges (-3dB):
      • maximum range: 0.35 Hz - 90 kHz (1 Ch, 194 kHz sampling)
      • maximum range: 0.35 Hz - 25 kHz (4 Ch, 64 kHz sampling)
      • minimum range: 0.35 Hz - 25 Hz (4 Ch, 64 Hz sampling)
    • FFT Resolution: 3,276,800 lines
    • Memory/Route: 64GB max. 16GB for one route
    • USB 3.0 (2.0 compatible)
    • Operating temperature range: -10 to 50˚C
    • Lithium Ion battery: 8 hours of operation, AC 230V
    • Touch screen display
    • Built in camera (thermal imaging camera sold separately)

What's in the Box

  • Adash A4500 VA5 Pro Four Channel Vibration Analyzer (A4500 INST)
  • Charger
  • VA5 Pro leather cover and shoulder strap (Kits only) [A4500 LHS]
  • VA5 Pro Transport Case (Kits only) [A4500 STC]
  • 1 licensed seat for Digital Diagnostics Professional Software (VA5 Pro Kit only) [DDS PRO 01]

The Adash A4500 VA5 Pro Four Channel Vibration Analyzer is a powerful, portable vibration analyzer with thermal imaging and ultrasound capabilities. The A4500 VA5 Pro is compatible with triaxial sensors, and can simultaneously measure up to four vibration signals, four process values and speed. This program runs with FFT with a resolution maximum over 3.25 million lines. Featuring a 9 inch touch screen display and 64GB of storage, the A4500 VA5 Pro has plenty of memory for extensive data collection and analysis, with a user-friendly interface that makes on site review a breeze.

A library of modules is pre-installed on the A4500 VA5 Pro to provide the user with access to an expert level analysis program, including but not limited to: route measurements, dynamic balancing, raw signal recording, machine noise logging, automatic fault detection, bump tests, ultrasound, and thermal imaging analysis(see Accessories tab for thermal camera attachment and ultrasound microphone). With extensive data collection options, a modular design and an 8 hour battery life, the A4500 VA5 Pro is a premier choice for vibration analysis applications. Experience a taste of the A4500 VA5 Pro's capabilities before purchase with the free download of Adash's Software Environment Emulator(see Documents tab).

The Adash A4500 VA5 Pro Vibration Analyzer Kit options have been configured to give the user access to all essential hardware and software basics for a cutting edge vibration analysis program. Purchase of a VA5 Base Kit provides the user with all the logistical gear for safe transport of the analyzer and its accessories, including a leather cover, shoulder strap and hard-shell carrying case. For more advanced analysis capabilities, the VA5 Pro Kit provides a licensed seat to the professional version of Adash's Digital Diagnostics Software (DDS).

Experience a taste of the A4500 VA5 Pro's capabilities before purchase with the free download of Adash's Software Environment Emulator(see Documents tab).

Adash A4500 TUP Infrared Camera
Adash A4500 TUP Infrared Camera

Thermal imaging camera attachment for use with the Adash A4500 VA5 Pro Four Channel Vibration Analyzer and DDS software. Integrates via micro USB.

Call for pricing
Adash A4500 MCC Current Clamp Assembly
Adash A4500 MCC Current Clamp Assembly

Enables motor circuit analysis data collection. Includes three current clamps and cable adapters. For use with the Adash A4500 VA5 Pro Four Channel Vibration Analyzer.

Call for pricing
Adash LM-BP8-K UE Lubrication Monitoring Package
Adash LM-BP8-K UE Lubrication Monitoring Package

Includes tuned 42kHz accelerometer, 6ft cable, 8in probe. For use with the Adash A4500 VA5 Pro Four Channel Vibration Analyzer and DDS software.

Call for pricing
Adash US-100-AB Airborne Ultrasound Microphone
Adash US-100-AB Airborne Ultrasound Microphone

Utilize to monitor 30‐50kHz airborne ultrasound levels for air leaks. For use with Adash A4500, A4404, and A4300 Vibration Analyzers.

Call for pricing
Adash ACC-1AC-K Route Sensor Collector Package
Adash ACC-1AC-K Route Sensor Collector Package

Single channel portable route data collection kit. Includes side‐exit accelerometer, 6ft coiled cable, 75lb pull-tested two pole magnet.

Call for pricing
Adash ACC-BAL4-010-K 4-Cable Balance Package
Adash ACC-BAL4-010-K 4-Cable Balance Package

Includes four 10ft straight cables, four top‐exit accelerometers, one Mini‐laser, one 6ft laser cable, magnetic stand, four 75lb pull-tested 2-pole magnets, reflective tape.

Call for pricing
Adash ACC-BAL2-010-K 2‐Cable Balance Package
Adash ACC-BAL2-010-K 2‐Cable Balance Package

Includes two 10ft straight cables, one top‐exit accelerometer; one side‐exit accelerometer; one Mini‐laser, 6ft laser cable, magnetic stand, two 75lb pull-tested magnets, reflective tape.

Call for pricing
Adash ACC-3AC-K Triaxial Sensor Package
Adash ACC-3AC-K Triaxial Sensor Package

Includes triaxial accelerometer with M12 connector, 6ft coiled cable, and 90lb pull-tested 2 pole magnet.

Call for pricing
Adash A4500 LHS VA5 Pro Cover and Shoulder Strap
Adash A4500 LHS VA5 Pro Cover and Shoulder Strap

Leather cover and shoulder strap for the Adash A4500 VA5 Pro Four Channel Vibration Analyzer.

Call for pricing
Adash A4500 STC VA5 Pro Transport Case
Adash A4500 STC VA5 Pro Transport Case

Hard‐shell professional transport case for use with the Adash A4500 VA5 Pro Four Channel Vibration Analyzer. Pre‐molded internal foam customized to fit the unit and accessories.

Call for pricing
