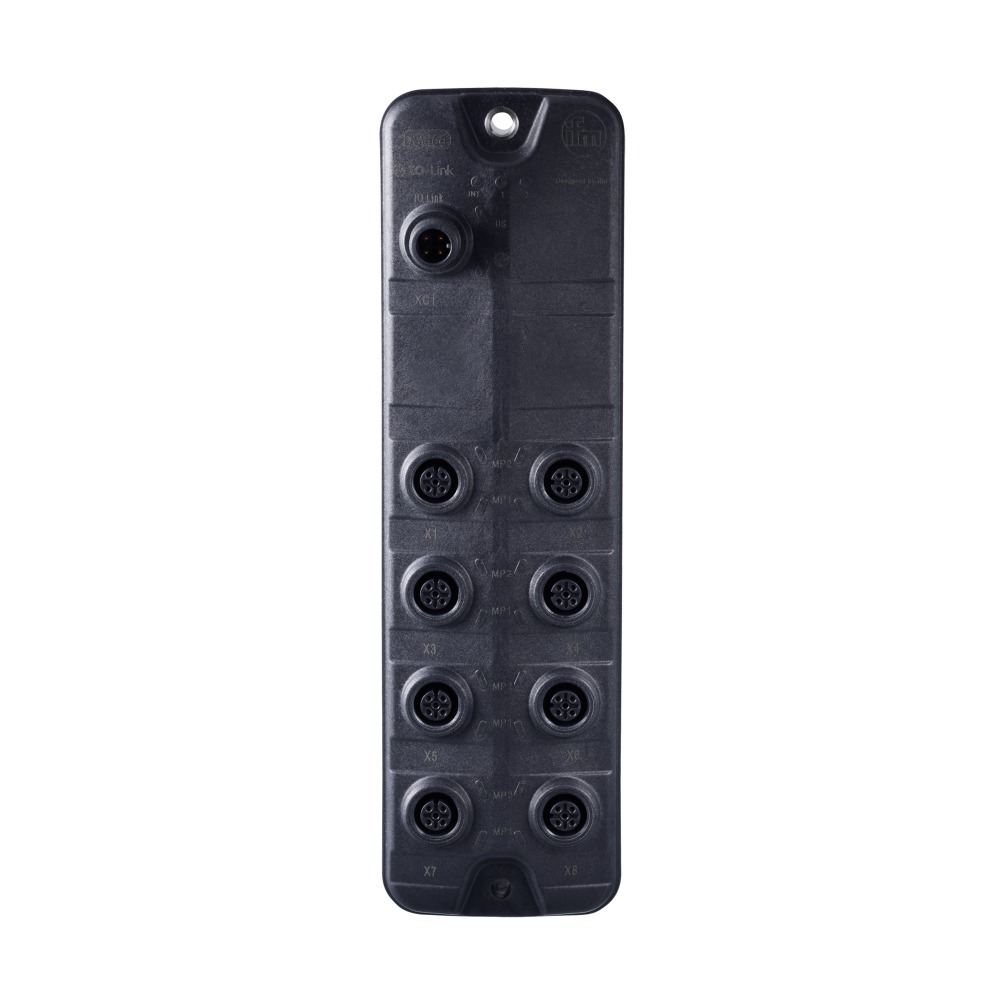

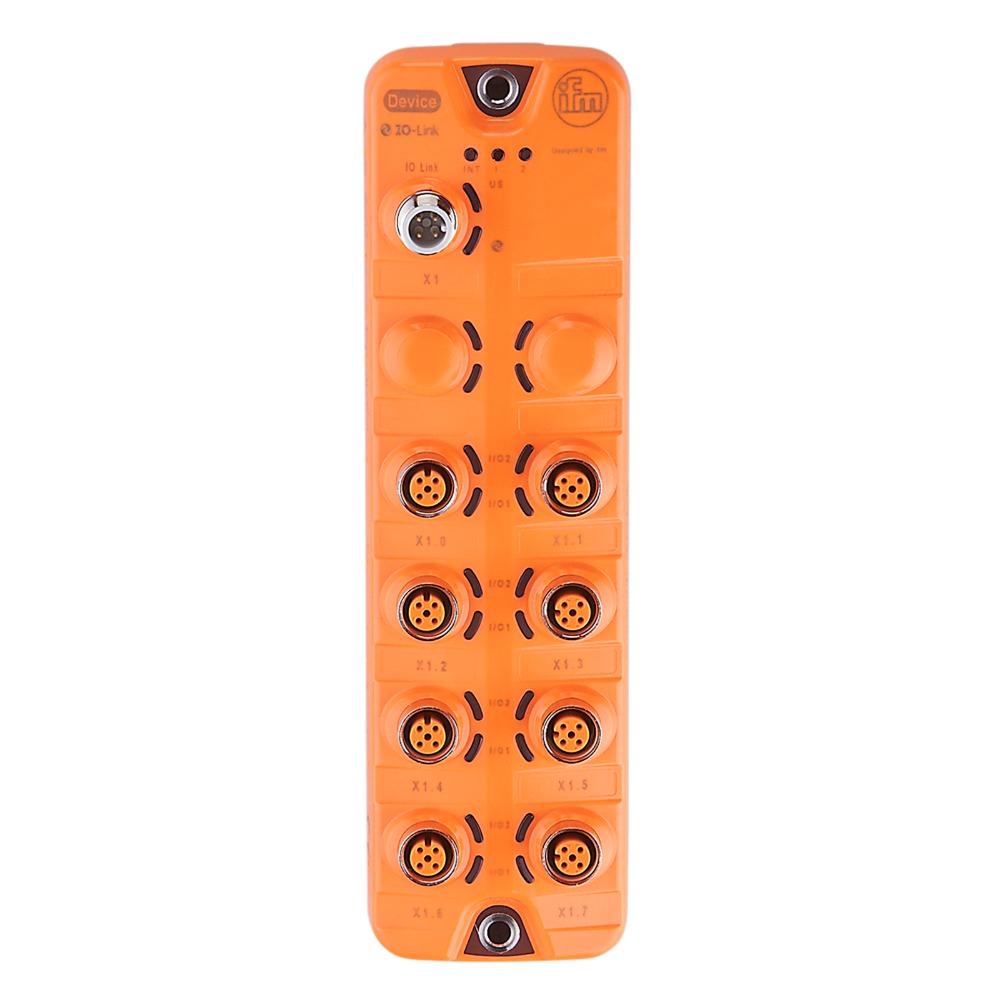

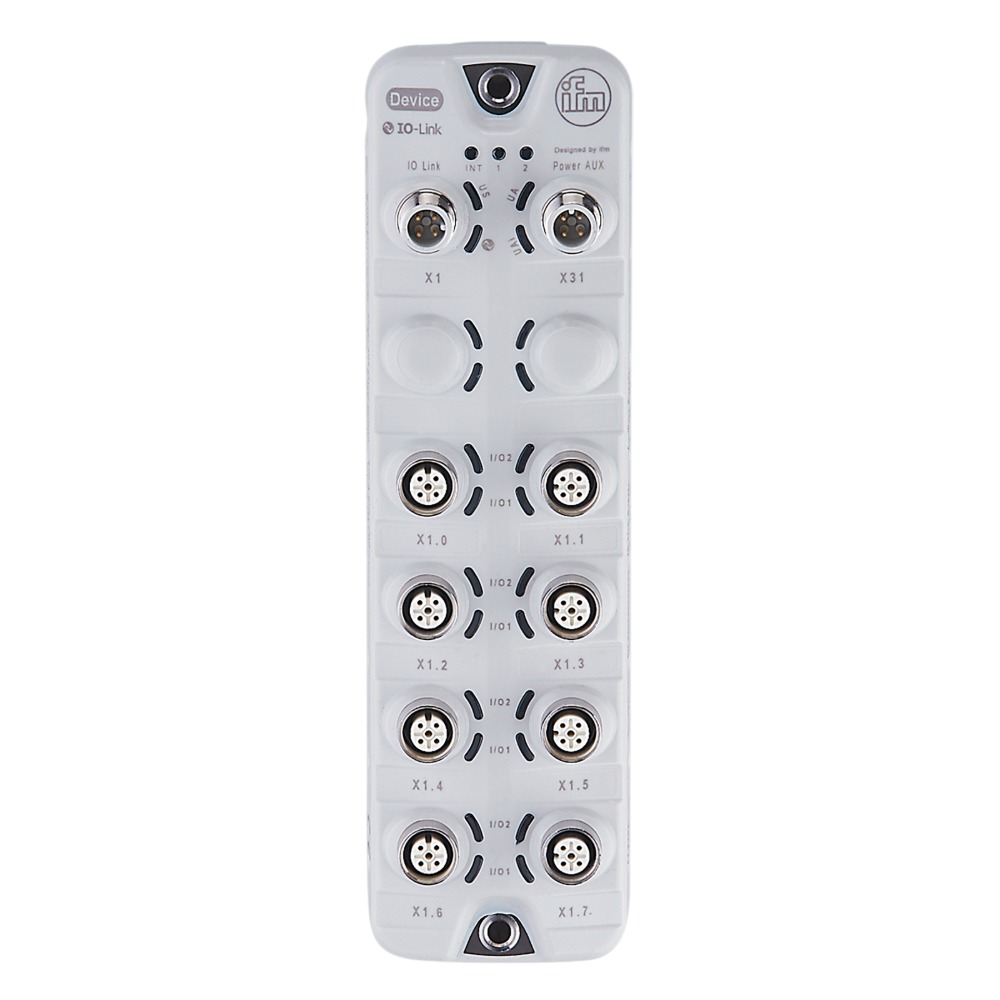

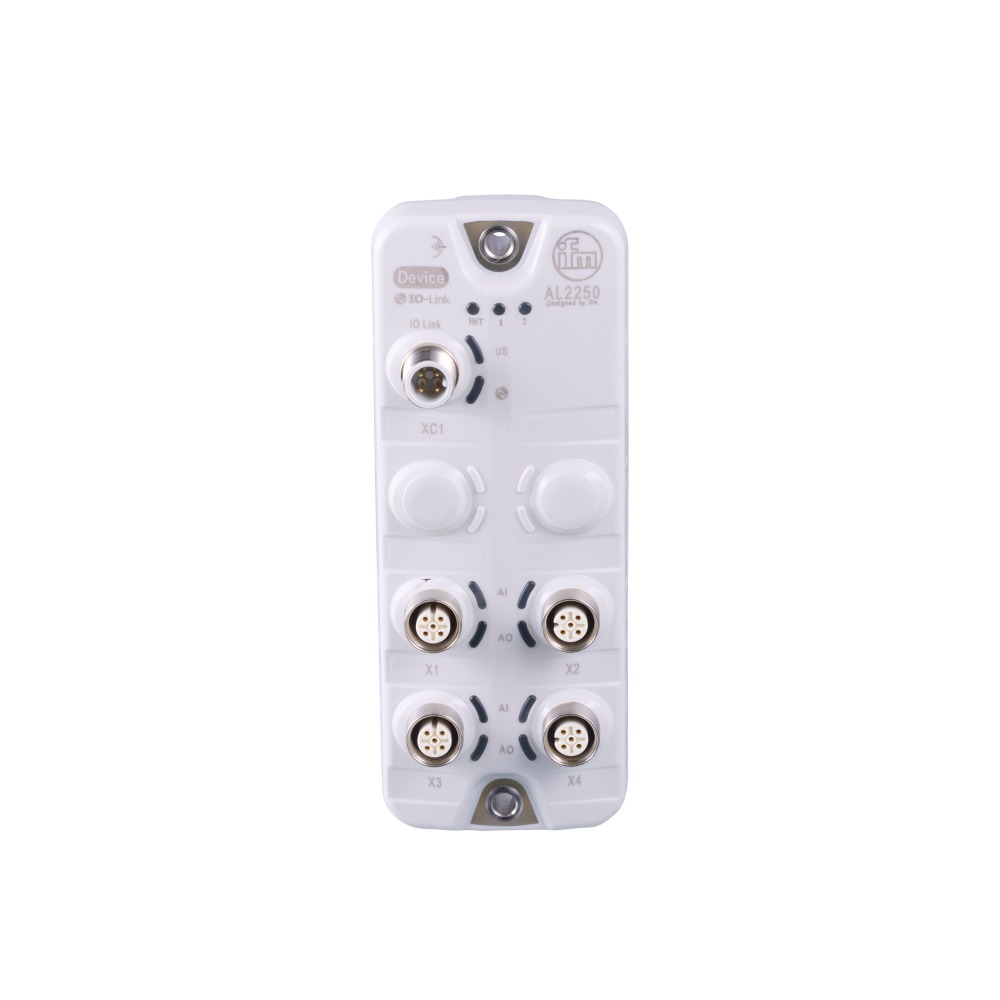

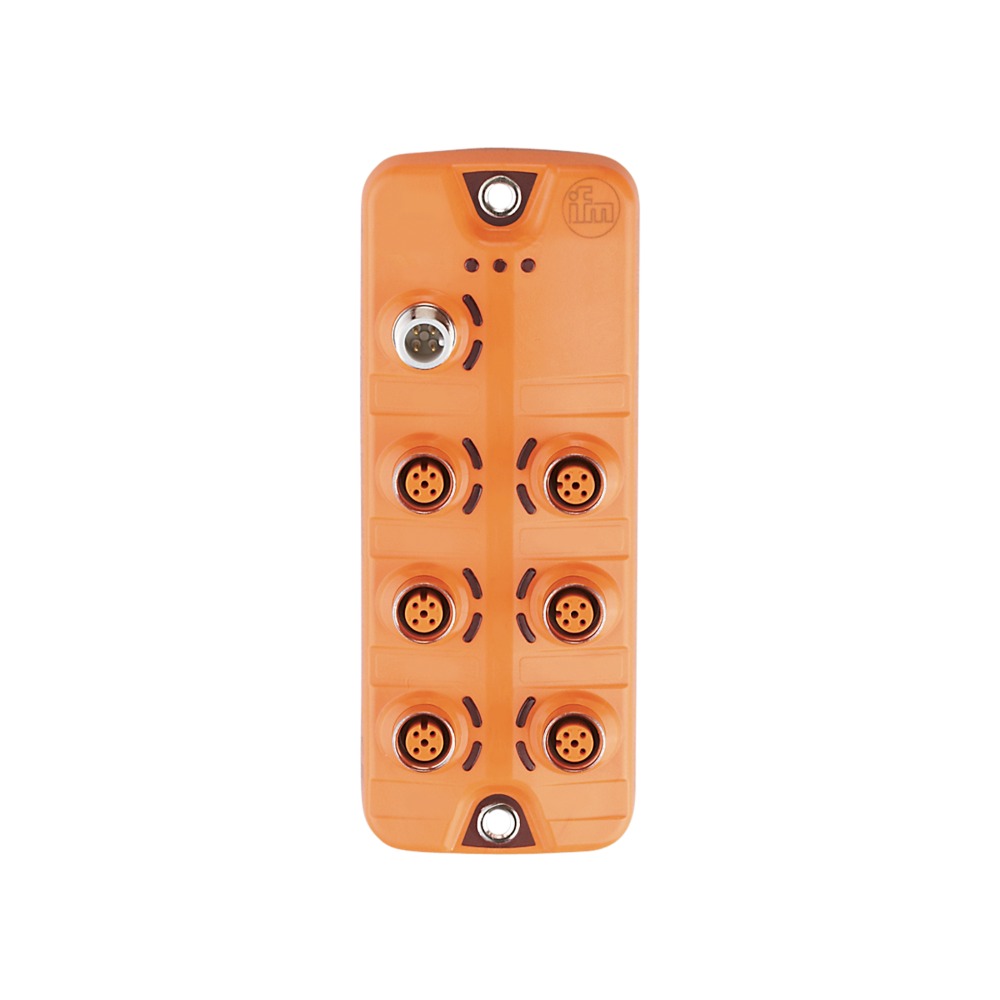

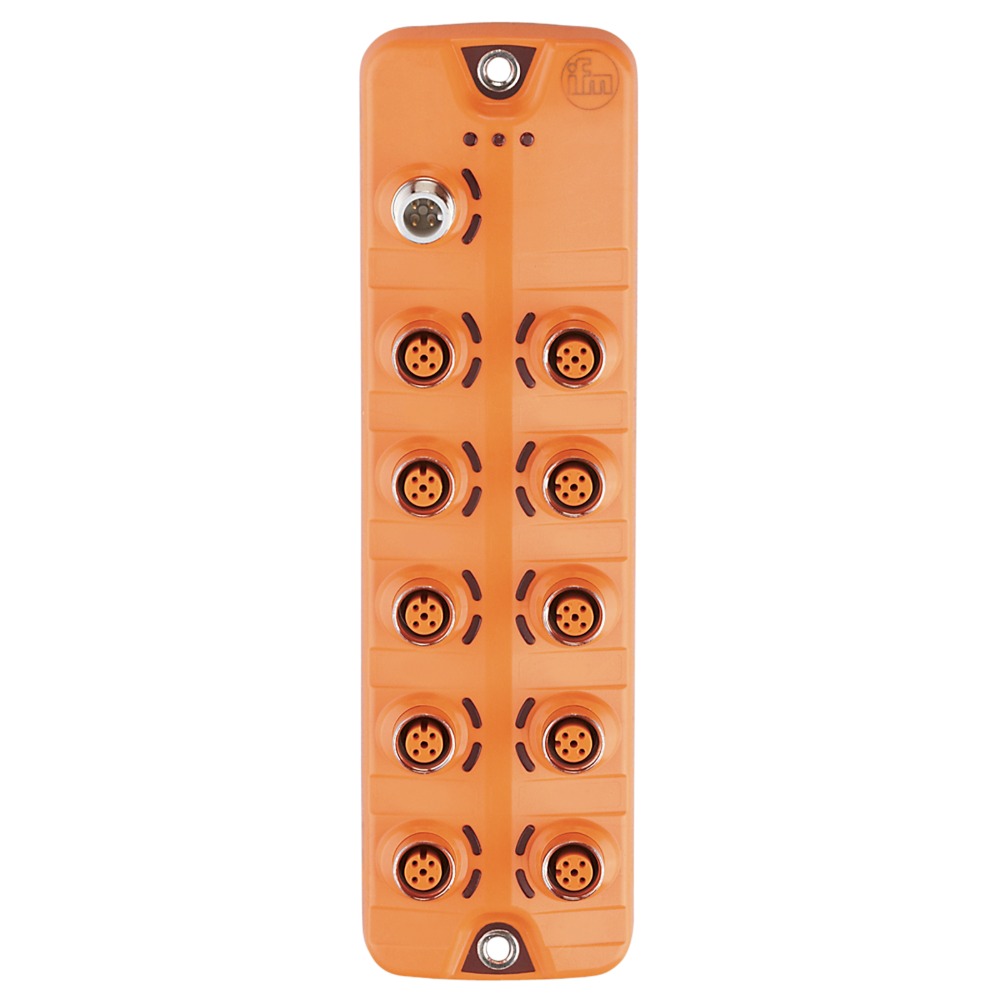

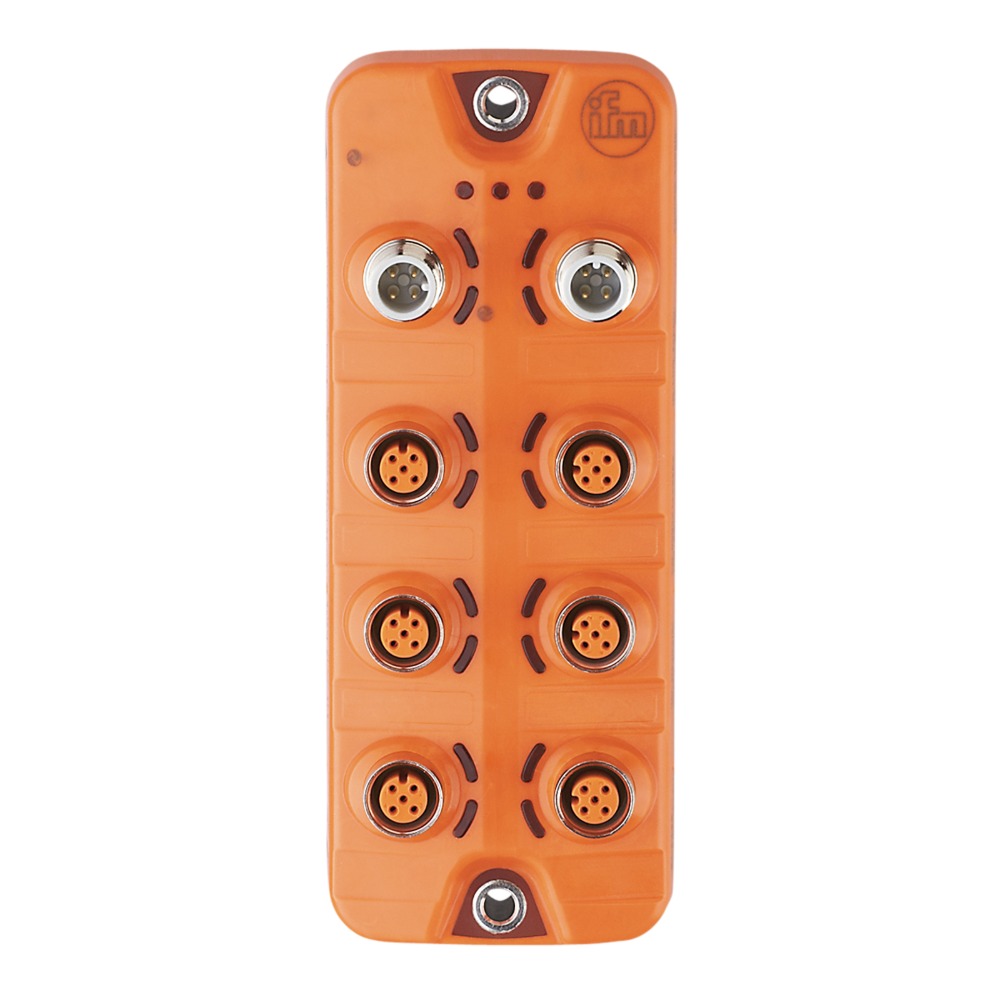

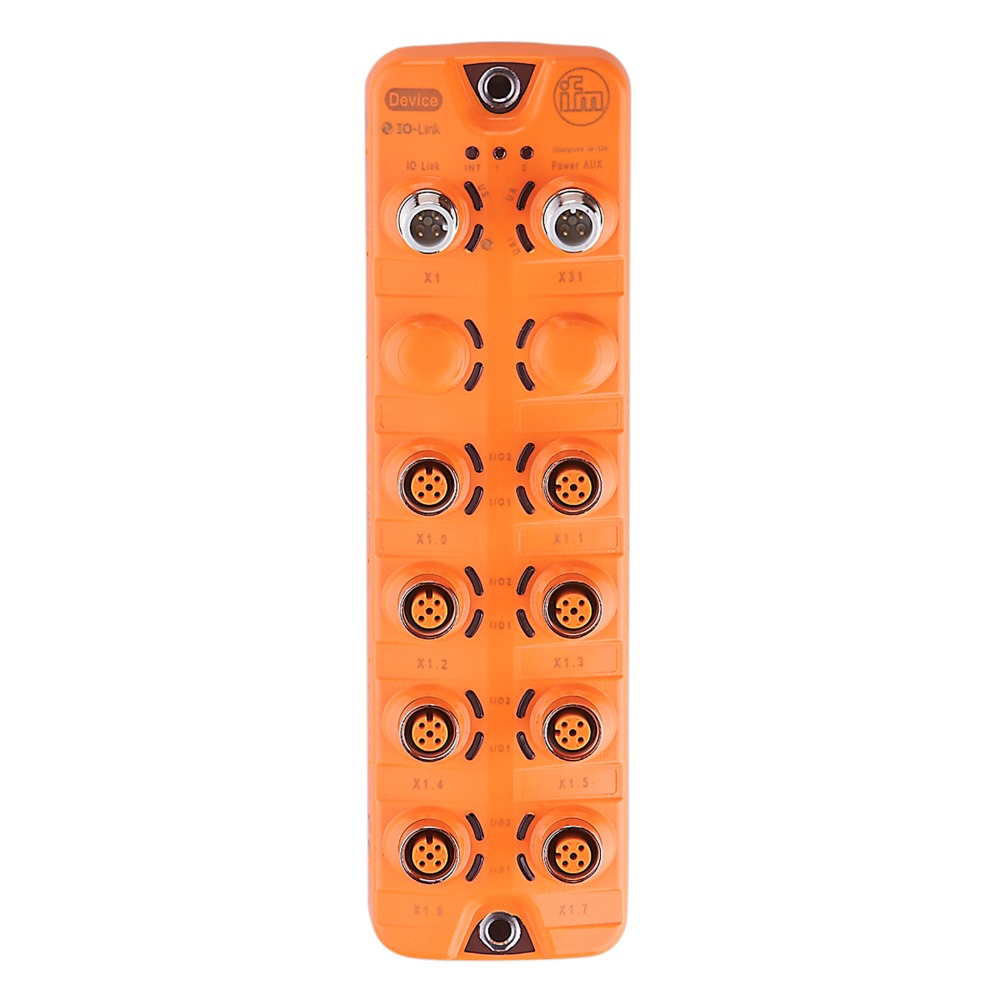

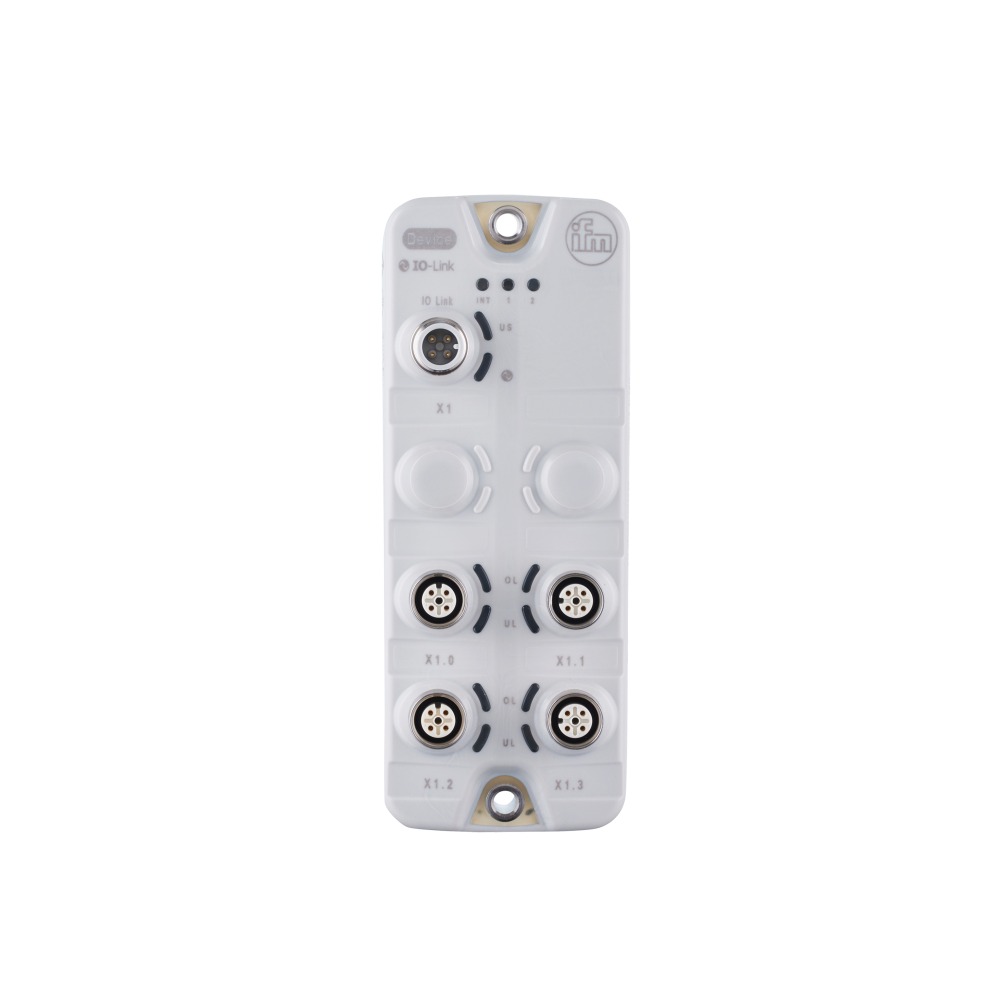

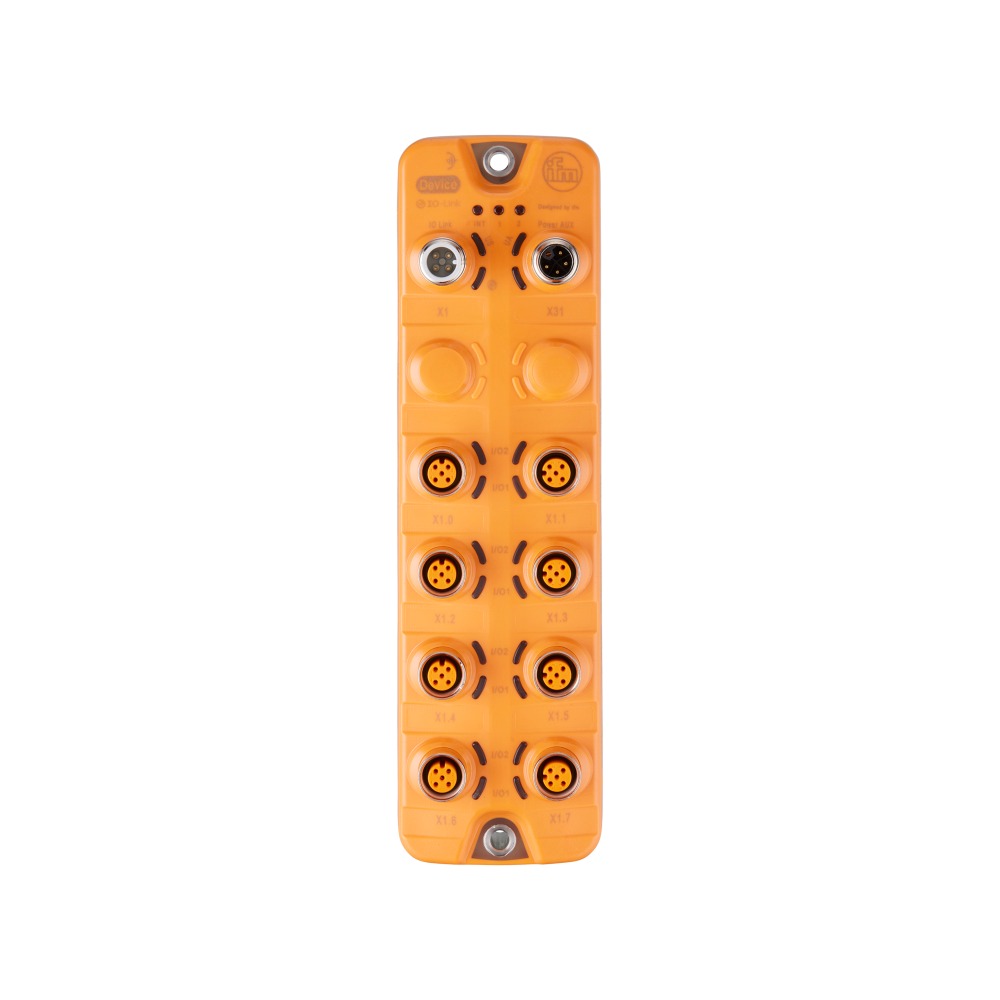

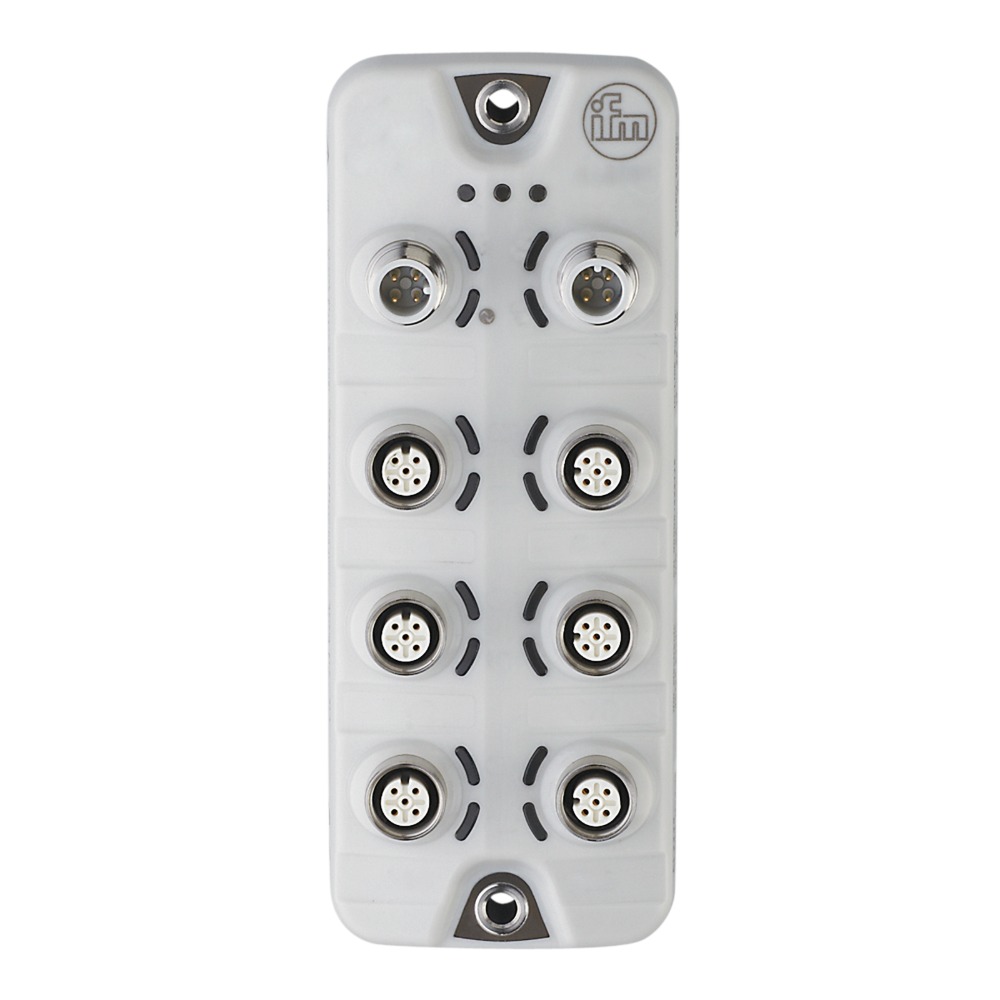

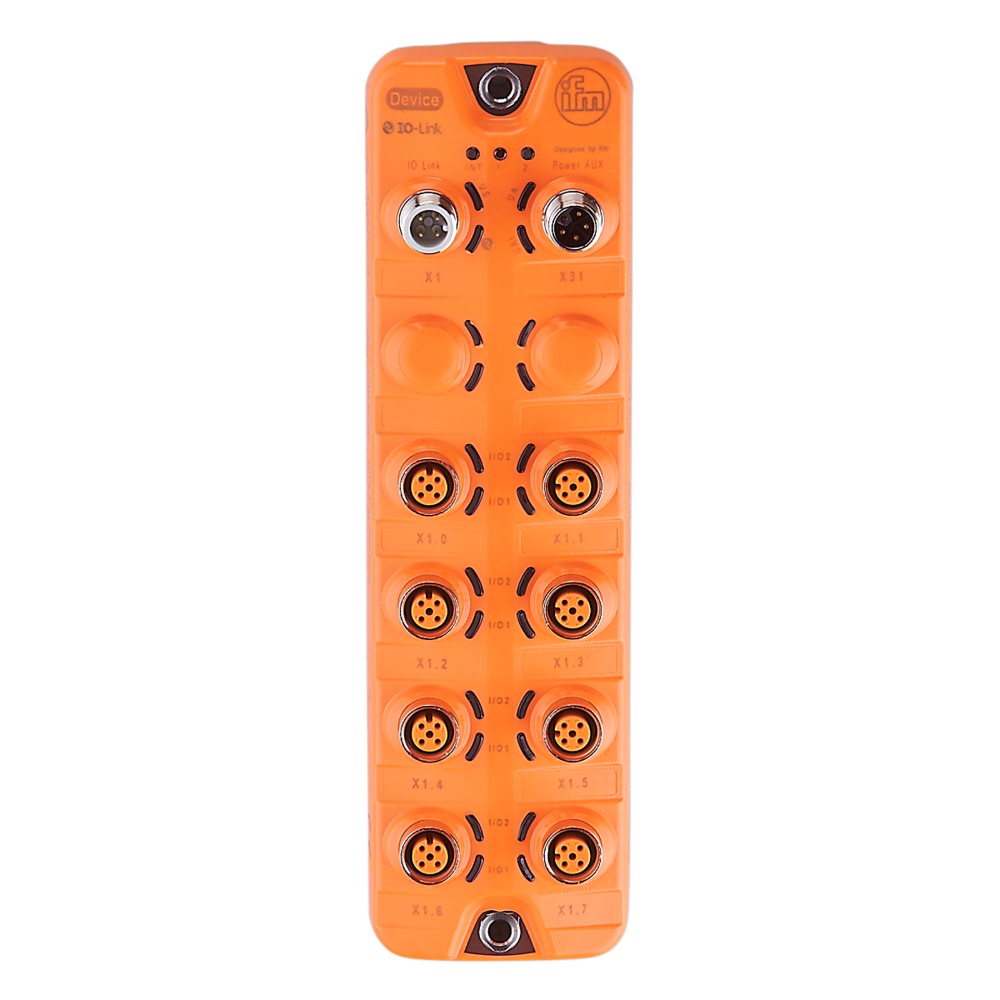

ifm efector IO-Link Module with M12 Connector

IO-Link Modules with M12 connectors. Rugged IP67 hubs with optional food-grade IP69K protection. Connect standard digital and analog sensors and actuators to any IO-Link master.

Starting at $384.70

Effective March 30th, 2026, ifm effector has added an 8% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-3 business days
Product Manual Product Specs (30 Files)

Features

  • IO-Link multiport module
    • Digital inputs, digital outputs, or configurable digital/analog I/O (varies by model)
  • 4 to 10 M12 sockets (model dependent)
  • PNP (IEC 61131-2) I/O type
  • 18 to 30 VDC operating voltage
  • Power supply:
    • IO-Link master Class A or Class B port
    • External M12 A-coded / L-coded supply (model dependent)
  • Connection:
    • IO-Link: M12 male, A-coded
    • I/O: M12 female sockets, A-coded
  • IO-Link Revision 1.1
  • SDCI Standard IEC 61131-9
  • -25 to 60°C (-13 to 140°F) operating temperature
    • Select models up to 70°C (158°F)
  • Protection Rating: IP65 / IP67, IP69K available
  • Material:
    • Housing: Polyamide (PA)
    • Socket: Nickel-plated brass
      • Stainless steel on IP69K models
    • Sealing: FKM
  • Green LED (operation)
  • Red LED (error)
  • Yellow LED (switching status)
  • EMC EN 61000-6-2, EN 61000-6-4
  • Approvals: CE, cULus, UKCA

The ifm efector IO-Link Module with M12 Connector product line integrate standard digital and analog sensors and actuators into an IO-Link system, so simple switching signals and smart sensor data is streamlined in one network. Each module plugs into an IO-Link master port with a standard unshielded M12 cable and gives you 4 to 10 M12 I/O sockets. Models include digital inputs, digital outputs, and configurable hubs that mix digital and analog I/O. On configurable models, each port can be set up independently, and ports can detect from the PLC logic whether to act as an input or an output. Depending on the model, power comes from the master’s Class A or Class B port or from an external A-coded or L-coded M12 supply for high-current outputs. LED indicators show operation, switching status, and faults at each port, optimizing setup and troubleshooting.

These modules are built for the field, with a fully potted polyamide housing, nickel-plated brass M12 sockets, FKM seals, IP65/IP67 protection, and resistance to oils, coolants, shock, and vibration. Food-grade versions with stainless steel sockets and IP69K protection are available for hygienic and washdown areas. Because I/O is gathered next to the process and sent back over one cable, these hubs cut wiring and installation time.
