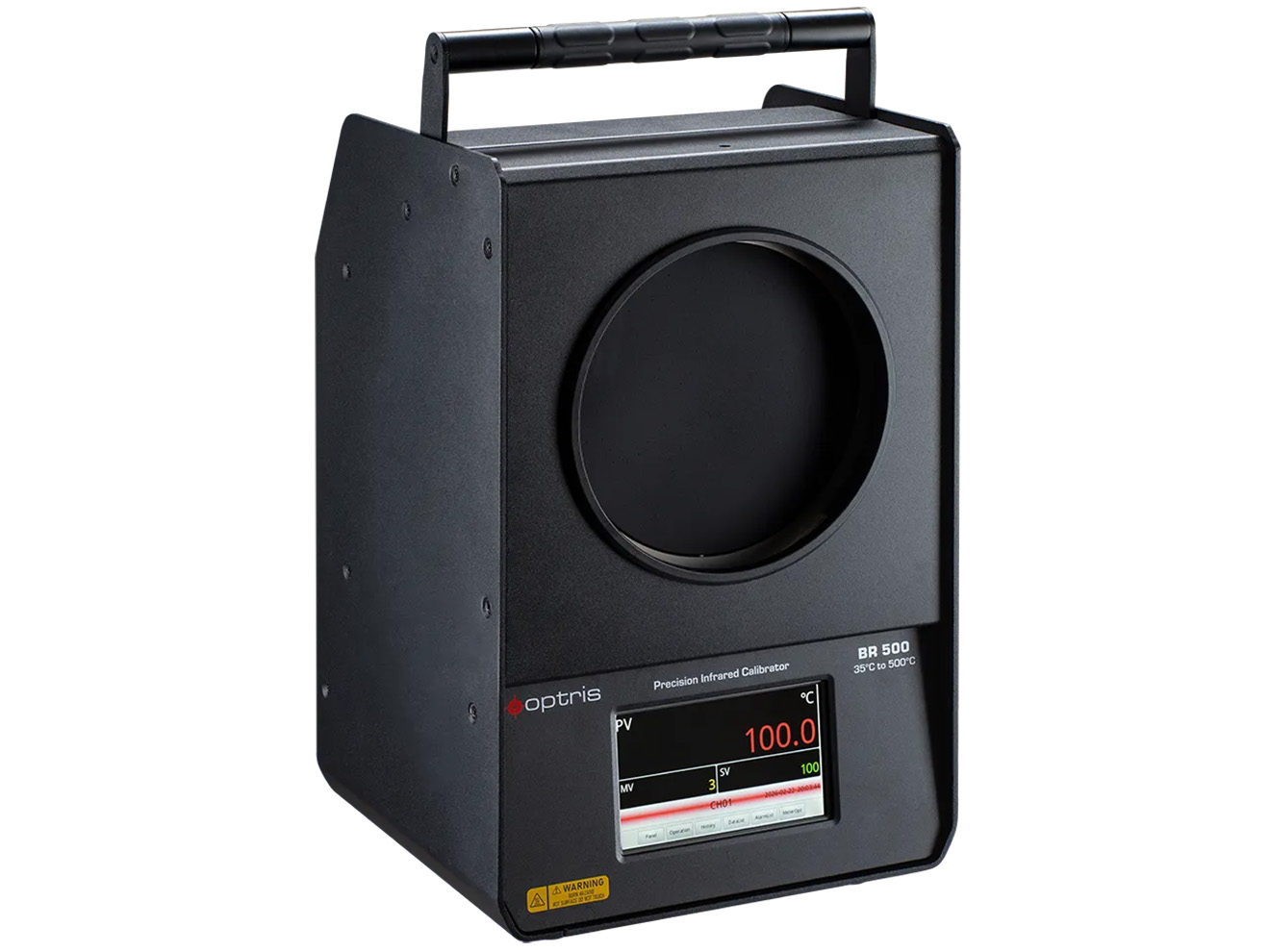

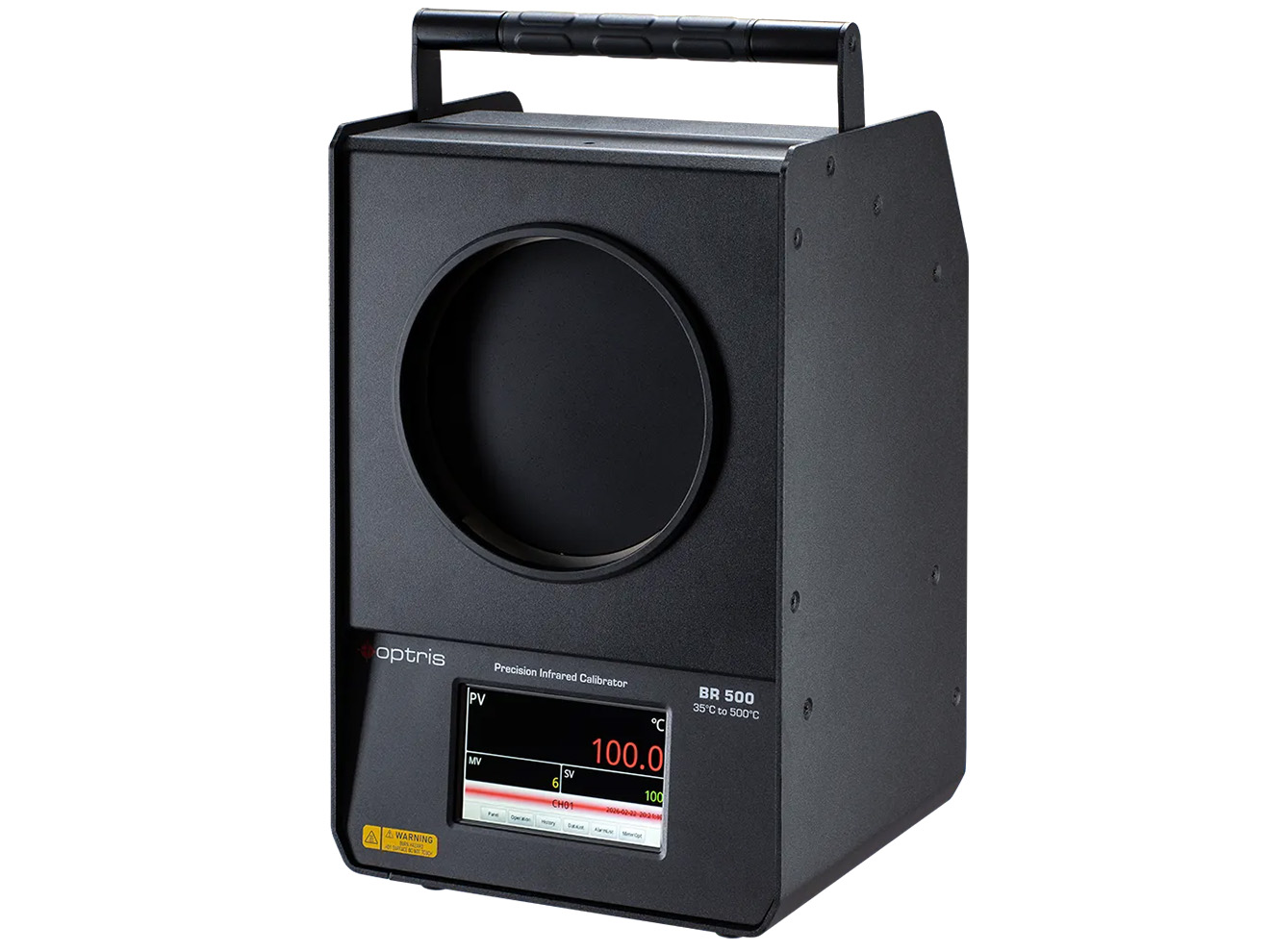

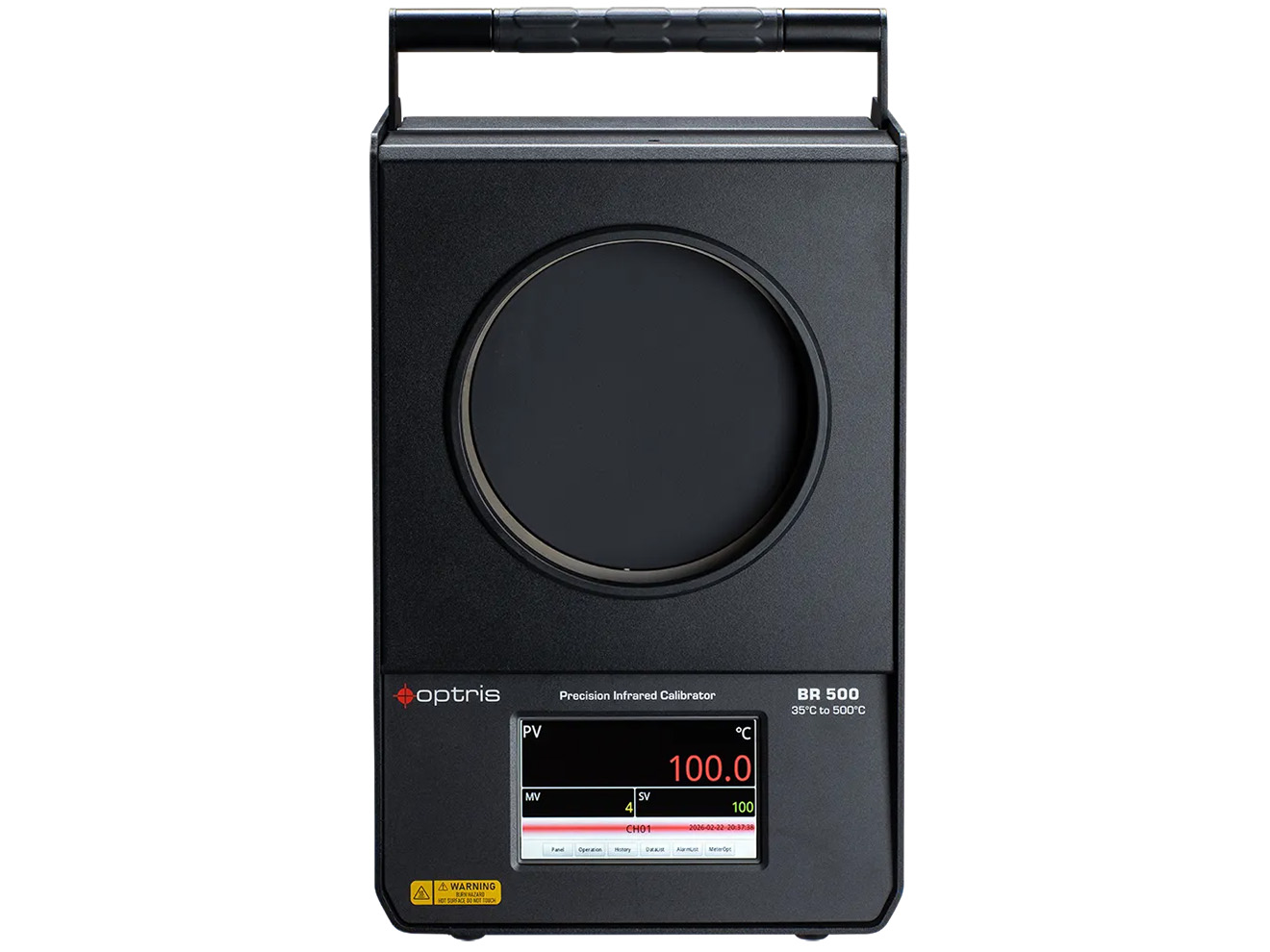

Optris BR500 Calibration Source

A compact blackbody calibrator with a 95 to 932°F temperature range, high accuracy, and a large 152mm aperture for calibrating and testing infrared temperature sensors.

$7,500.00

View Company Reviews
Part Number
  • OPTBR500V1
Manufactured
Includes
Availability
  • Usually ships in 6 weeks
Product Manual Product Specs

Features

  • Temperature range: 95 to 932°F
  • Accuracy: up to ±3.42°F at 932°F
  • Aperture: 152mm
  • Emissivity: 0.95
  • Temperature resolution: down to 0.018°F (at lower ranges)
  • Warm-up time:
    • 20 min (95 to 842°F)
    • 10 min (842 to 932°F)
  • Cool-down time:
    • 40 minutes (932 to 212°F)
    • 40 minutes (212 to 95°F)
  • Operating ambient temperature: 41 to 86°F
  • Power consumption: max 1000 W (230 V AC ±10%)

The Optris BR500 calibration source primarily used to provide a stable temperature reference for infrared sensor testing. It operates over a range of 95 to 932°F with a fixed emissivity of 0.95 and a 152mm aperture. Temperature control is managed using a Pt100 sensor with PID regulation, and stated accuracy varies from about ±0.63°F at lower temperatures to ±3.42°F at the maximum range.

The unit requires a warm-up period of 10 to 20 minutes depending on temperature level and has defined cool-down times between operating ranges. It runs on 230 V AC (optional 110 V) with a maximum power consumption of 1000 W and is specified for operation in ambient temperatures between 41 and 86°F.
