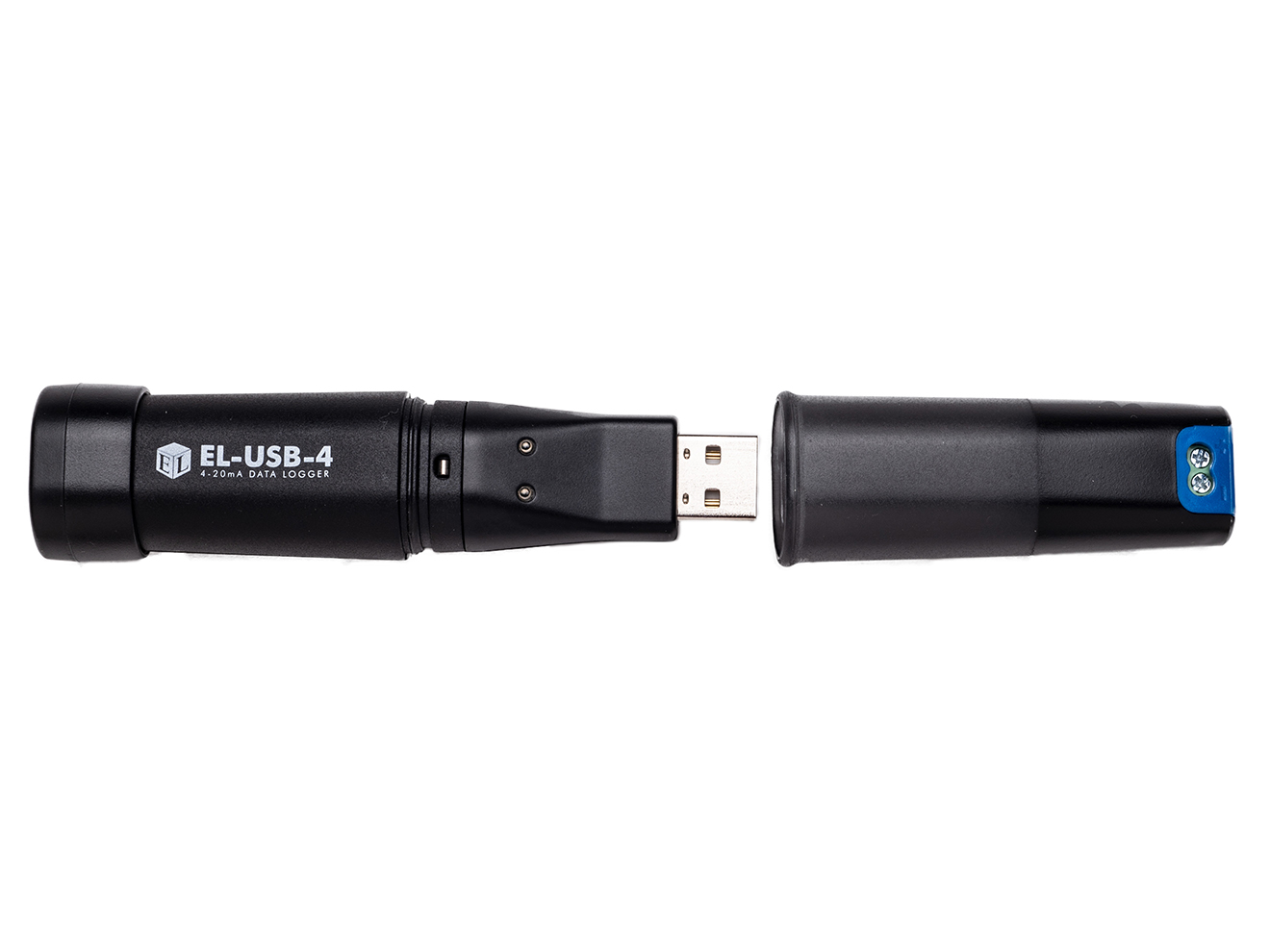

CDI Meters EL-USB-4C Data Logger
Compact, easy-to-use data logger with attachment cable for use with CDI Meters 5000 Series Compressed Air Flow Meters.
Overview
Features
- Accuracy: ±1%
- Storage: 32,510 Readings
- Logging rate: user selectable between 1 second & 12 hours
- Operating temperature range: -35 to +80°C (-31 to +176°F)
- Measurement range: 4 to 20mA DC
- Internal resolution: 0.05mA DC
- Input impedance: 110 Ohms
- Battery life: 3 years
- Status indication via red and green LEDs
- Free EasyLog USB software
- Includes cable for connection to CDI Meters 5000 Series Compressed Air Flow Meters
- two screw terminal connection
What's in the Box
- Battery (BAT 3V6 1/2AA)
- 4-20mA Range Cap (USB-CAP-4-20)
- Mounting Bracket (EL-USB WALL BRACKET)
- Measurement Leads (EL-USB-LEADS)
This product is an accessory for the following products:
Description
The CDI Meters EL-USB-4C Data Logger records the CDI Meters 5000 Series Compressed Air Flow Meters readings via the 4-20mA output. The EL-USB-4C features easy to configure settings such as alarm thresholds, logging rate, and immediate vs delayed starts. The EL-USB-4C comes with free EasyLog software that allows the collected data to be graphed, printed and exported to other in-use applications in excel, jpeg and and PDF formats.
