CDI Meters 5250 Hot-Tap Compressed Air Flow Meter

Two ring flow meter for compressed air and nitrogen, no system shutdown required during install.

Starting at $1,105.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-5 business days
Product Manual Product Specs (2 Files)

Features

  • No system shutdown needed for install
  • Accuracy: 5% of reading
  • Temperature Compensation Range: 20 to 120°F (-7 to 49°C)
  • Fluids: Compressed air and nitrogen
  • Nominal Sizes: 25mm to 1.5in
  • Operating pressure: 130psig maximum
  • Input power: 250 mA at 24 VDC
  • Output resistance: 600 Ohms max.
  • Materials: stainless steel, gold, thermal epoxy and Viton (seal)
  • Ring material: Aluminum
  • Convertible pulse/threshold output available
  • Housing can be oriented for vertical/horizontal install
  • Four-digit LED display
  • Quick response time
  • RS-485 output available
  • Pressure sensing available

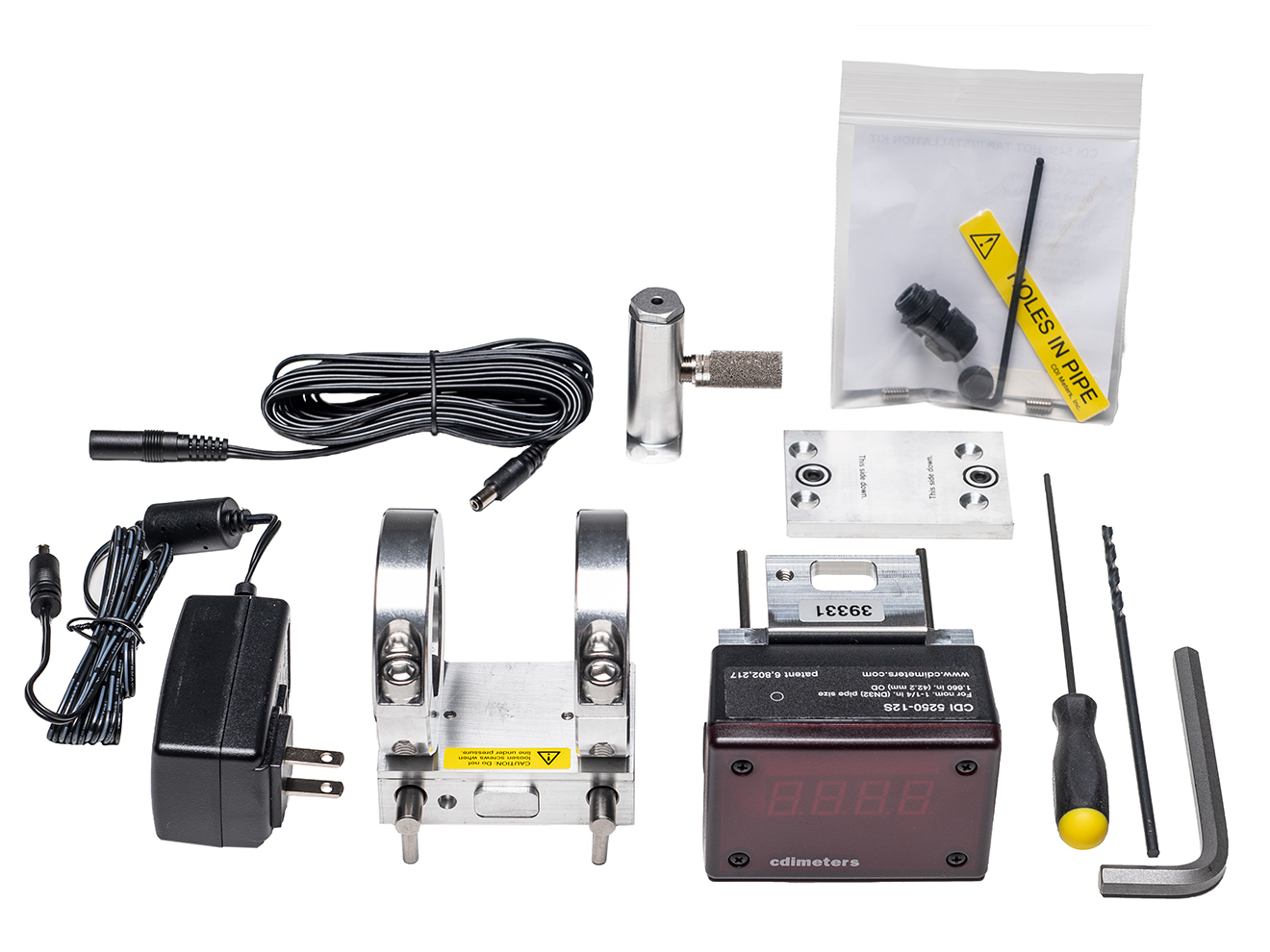

What's in the Box

  • CDI 5250 Flow Meter
  • Hot Tap Drill Guide (5250-DG)
  • Wall-plug DC supply for 110 to 230V AC main with 6ft cable
  • 14ft extension cable
  • Installation Kit

The CDI Meters 5250 Hot-Tap Compressed Air Flow Meter features a thermal mass design, gauging the flow rate of compressed air and nitrogen via the heat required to maintain the differential between its probes. The CDI 5250 is a modified version of the The CDI Meters 5200 Compressed Air Flow Meter, allowing for installation without system shutdown. A two-ring clamp design, the CDI 5250 has two valves through which the probes pass into the pipe, and a muffler which collects metal chips during the installation process. The CDI 5250 comes with a drill guide included for a safe and easy installation process.

Built to operate accurately up to 130psig with weather resistant materials and inbuilt surge protection to further drive home its low maintenance design and reduce user labor. In addition to an easy to read LED display, the CDI 5250 offers streamlined navigation. The user is able to utilize a single button on the front of the meter to alternate between rate, daily usage and cumulative usage, as well as select a default display option, change units of measurement, and reset totals. The CDI 5250 has an optional eight banks of memory for continuous logging of flow history, with a one million+ sample capacity per bank. Optional RS-485 output for networking is also available.

The CDI 5250 comes with a wall-plug DC supply for 110 to 230V AC main with a 6ft cable plus a 14ft extension cable. Alternatively the user can hardwire the meter to a 24VDC supply. The CDI 5250 features an inbuilt milliamp output, and is shipped with a jumper to power it directly from the flow meter's DC power supply.

The CDI 5250 comes with a standard three year warranty.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

CDI Meters 5200-PS Power Supply
CDI Meters 5200-PS Power Supply

24VDC wall-plug power supply and 14ft extension cable for use with the CDI Meters 5000 Series Compressed Air Flow Meters.

$25.00

Accessories

Please consider these optional accessories.

CDI Meters EL-USB-4C Data Logger
CDI Meters EL-USB-4C Data Logger

Compact, easy-to-use data logger with attachment cable for use with CDI Meters 5000 Series Compressed Air Flow Meters.

$135.00
CDI Meters 5200-CC Configuration Cable
CDI Meters 5200-CC Configuration Cable

Configuration cable used in conjunction with CDI Meters CDIMS software, compatible with CDI Meters 5000 Series Compressed Air Flow Meters.

$105.00
CDI Meters 5000-MEM
CDI Meters 5000-MEM

Retrofit eight bank memory option for in-the-field CDI Meters 5000 Series Compressed Air Flow Meters, used in conjunction with CDI Meters MeterGrapherM Software.

$195.00

This product can be used in the following applications:
