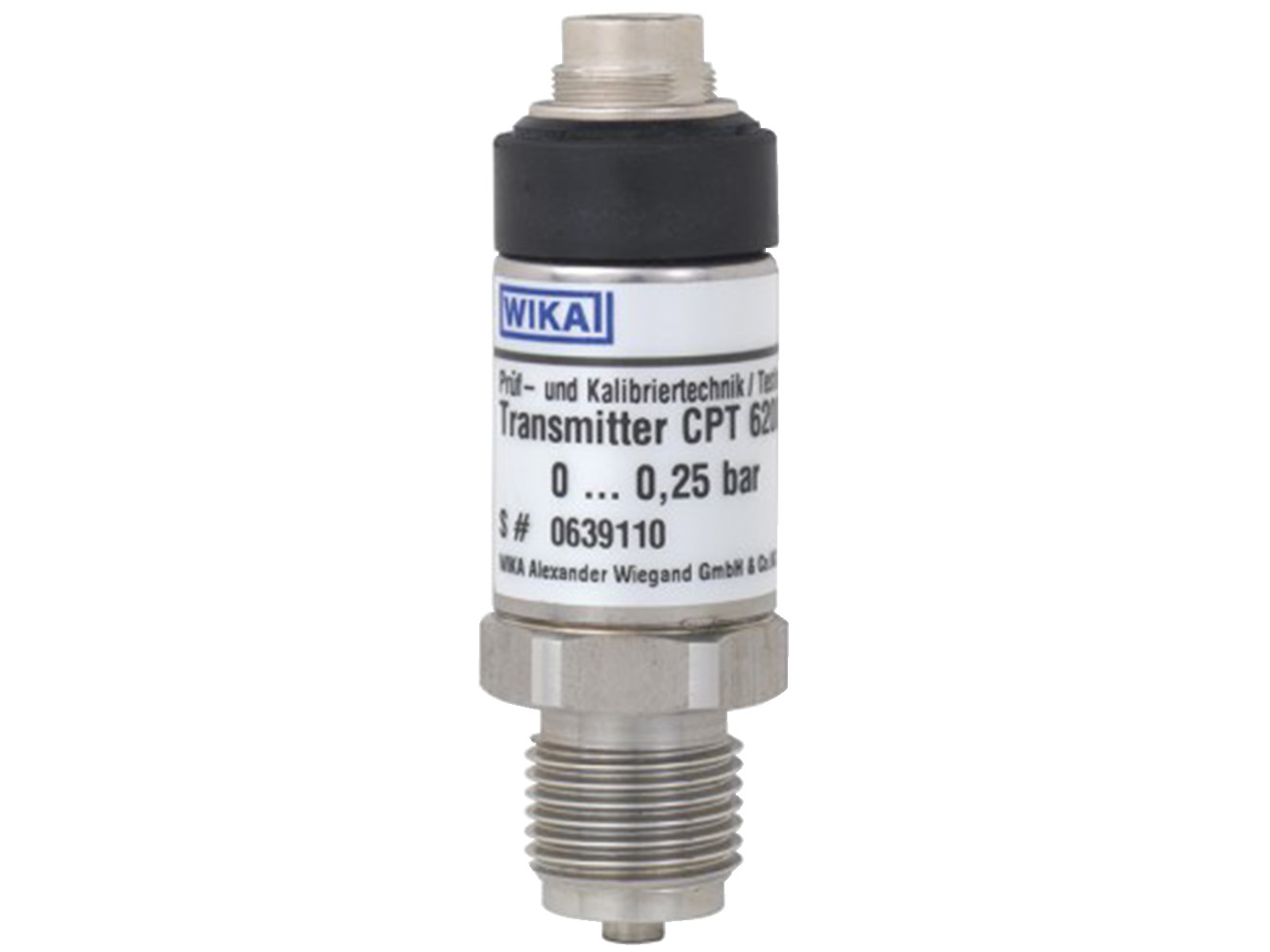

WIKA CPT6210 Pressure Sensor

Intrinsically safe reference pressure sensor with up to 0.1% accuracy and ranges to 1000 bar for calibration applications.

Starting at $897.53

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs

Features

  • Accuracy: 0.1% of span (0.2% standard)
  • Gauge or absolute pressure in choice of range:
    • up to 1,000 bar gauge
    • up to 25 bar absolute
  • Intrinsically safe option (ATEX Zone 1, CPT62I0)
  • Plug-and-play with CPH6200, CPH6300, and CPH62I0
  • 7-pin bayonet connection
  • Stainless steel wetted parts
  • IP65 / IP67IP
  • Temperature range:32 to 176°F

The WIKA CPT6210 pressure sensor designed for calibration and verification of pressure instruments in laboratory and field service applications. The sensor supports gauge, absolute, vacuum, and differential pressure measurement depending on configuration and system setup. Measuring ranges extend from 0 to 100mbar up to 0 to 1,000bar, covering low-pressure and high-pressure applications. Accuracy is specified up to 0.1% of span with calibration, with 0.2% as standard performance. An intrinsically safe version is available for hazardous area use (ATEX Zone 1).
