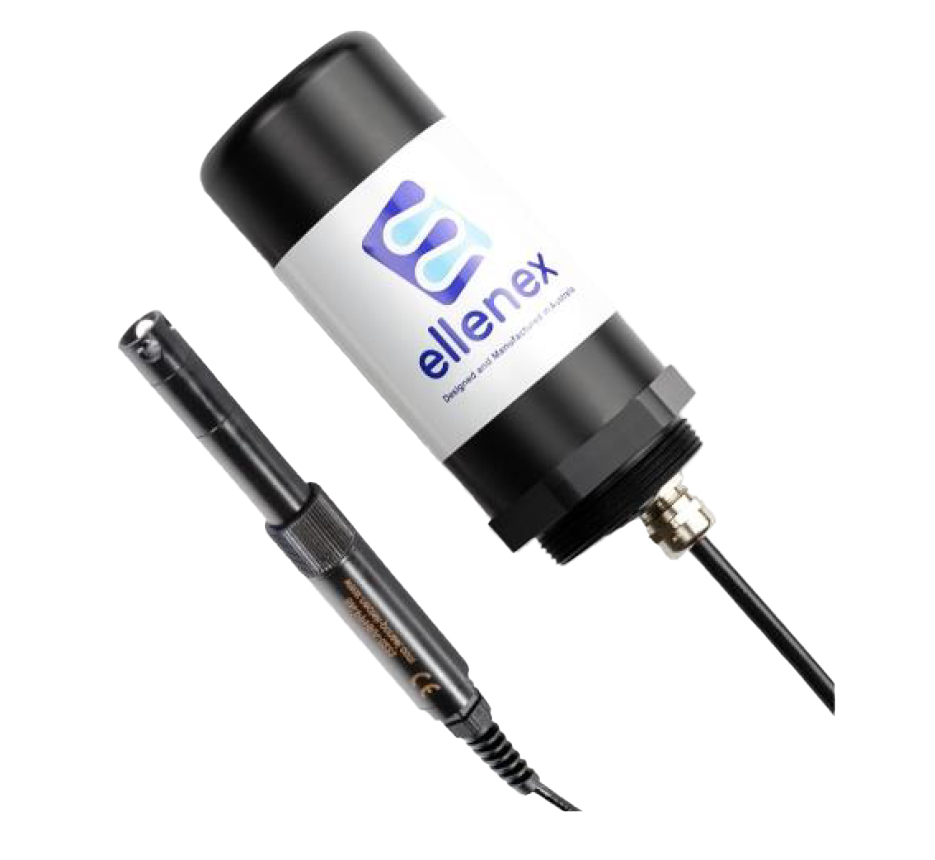

Ellenex CPH2-N Low Power pH / ORP Temperature Sensor

pH and ORP sensor with 0 to 14pH, -1000 to 100mV and 0 to 50°C measurement ranges. Cat-NB1 (NB-IoT) or LTE Cat-M1 operation.

Starting at $2,098.80

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs

Features

  • Measurement range:
    • pH: 0 to 14
    • ORP: -1000 to 1000mV
    • Temperature: 0 to 50°C
  • Built-in Replaceable 3.6V Lithium Battery
  • Cat-NB1 (NB-IoT) or LTE Cat-M1 operated sensor
  • Compatibility with common communication protocols
    • UDP, LwM2M, MQTT, NIDD
  • Materials of construction:
    • Sensor Head: PVC, DELRIN, special pH glass, platinum, polyamide
    • Cable: Coaxial armoured, Polyurethane
    • Enclosure: ASA or POM
  • External antenna as standard
  • IP66 or IP68, UV Protected enclosure
    • IP68 sensor head

The Ellenex CPH2-N Low Power pH / ORP Temperature Sensor is designed for reliable water quality measurement across various industries including water/wastewater, oil/gas, mining and construction. The CPH2-N Series offers NB-IoT or Cat-M1 communication standards, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the CPH2-N ensures efficient, extended operation, with a pre-configured interface which removes the need for additional programming or hardware setting.

Applications:

  • Bore Hole Mineral Level
  • Wastewater Tank
  • Water Resources
  • Industrial Wastewater
  • Surface Water, Rivers and Catchments
  • Regulatory Automated Reporting
  • Sea Water
  • Drinking Water
