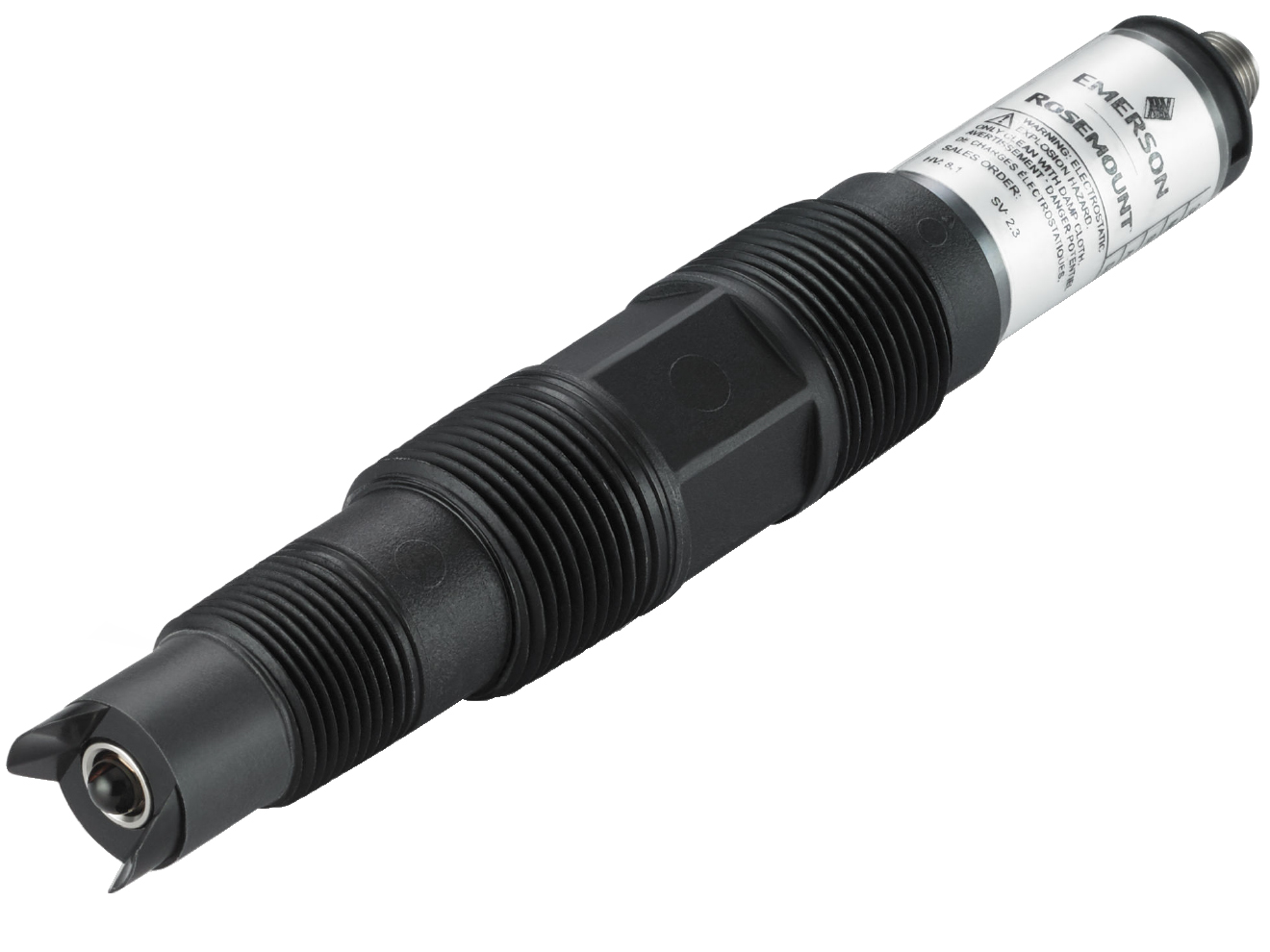

Rosemount 396A Anti-Coating pH/ORP Sensor

Anti-coating pH/ORP sensor with digital M12 output for fast reliable measurements in dirty, high-solid, and coating applications.

Starting at $1,568.77
Effective April 15th, 2025 Rosemount has added a 6.7% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2 weeks
Product Manual Product Specs

Features

  • Anti-Coating pH/ORP Sensor
  • Poisoning-resistant helical reference design extends sensor life
  • Materials: polypropylene body, EPDM O-ring
  • Mounting: 3/4in and 1in NPT front-facing, 1in rear-facing threads
  • Measurement: pH 0 to 14, ORP -1500 to 1500mV
  • Operating Range: 32 to 212°F, 0 to 10.3 bar, minimum conductivity 100 μS/cm
  • Rating: IP67/IP68, resistant to vibration, EMI, and ground loops
  • Optional: calibration certificate, material traceability certificate, stainless steel tag

The Rosemount 396A anti-coating pH/ORP sensor is designed for tough pH and ORP applications where coating, fouling, or high solids are present. It provides digital output through an M12 connector or integral cable for fast, reliable readings and includes advanced diagnostics with predictive sensor health indicators. The sensor features anti-coating reference technology and a poisoning-resistant helical reference pathway to ensure stable pH and ORP signals and maximize sensor life.

The sensor has a reinforced polypropylene body with an EPDM O-ring and versatile mounting options, including 3/4in and 1in NPT front-facing threads and 1in NPT rear-facing threads. It measures pH from 0 to 14 and ORP from -1500 to 1500mV. Operating conditions are 32 to 212°F and 0 to 10.3bar, with a minimum conductivity of 100μS/cm. The sensor is rated IP67/IP68 and is resistant to vibration, EMI, and ground loops. Optional calibration and material traceability certificates are available.
