ifm efector E4 Series E43002 Level Sensor Welding Adapter

Name: ifm efector E4 Series E43002 Level Sensor Welding Adapter
Price: 68.0 USD
Availability: BackOrder

$68.00

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Numbers

E43002
WELDING ADAPTER 50/D16

Manufactured

By ifm efector

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Product Specs

Features

Ø16mm sensor connection
Ø50mm welding adapter process connection
0.5 bar (0.05 MPa) pressure rating
32 to 176°F ambient temperature range
Materials:
- Spacer: brass
- Clamping ring: FKM
- Flange: stainless steel
- Knurled nut: stainless steel
Easy adjustment of the sensor immersion depth

This product is an accessory for the following products:

ifm efector LI Series Capacitive Point Level Detection Sensor

Point level monitoring in tanks and containers in 132 - 737mm probe lengths .

Starting at $289.50

ifm efector LK Series Electronic Level Sensor

Suitable for water, oils and coolants.

Starting at $584.00

ifm efector LT Series Electronic Level and Temperature Sensor

Reliable level detection in containers and tanks.

Starting at $702.50

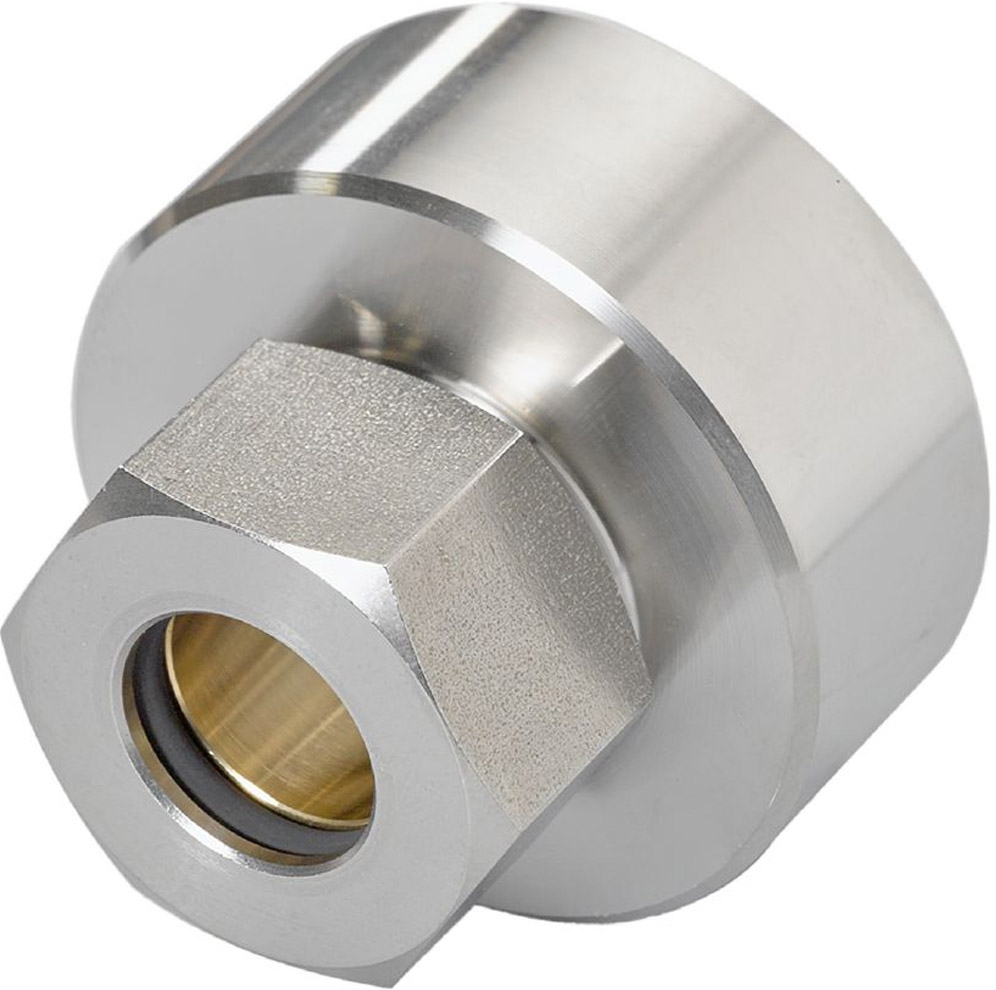

The ifm efector E4 Series E43002 Level Sensor Welding Adapter allows for safe installation of capacitive level sensors in containers in industrial environments. This adapter features a 0.5 bar (0.05 MPa) pressure rating and can withstand ambient temperatures between 32 and 176°F. The E43002 welding adapter has a clamp fitting installation type with an Ø16mm sensor connection and an Ø50mm welding adapter process connection.
