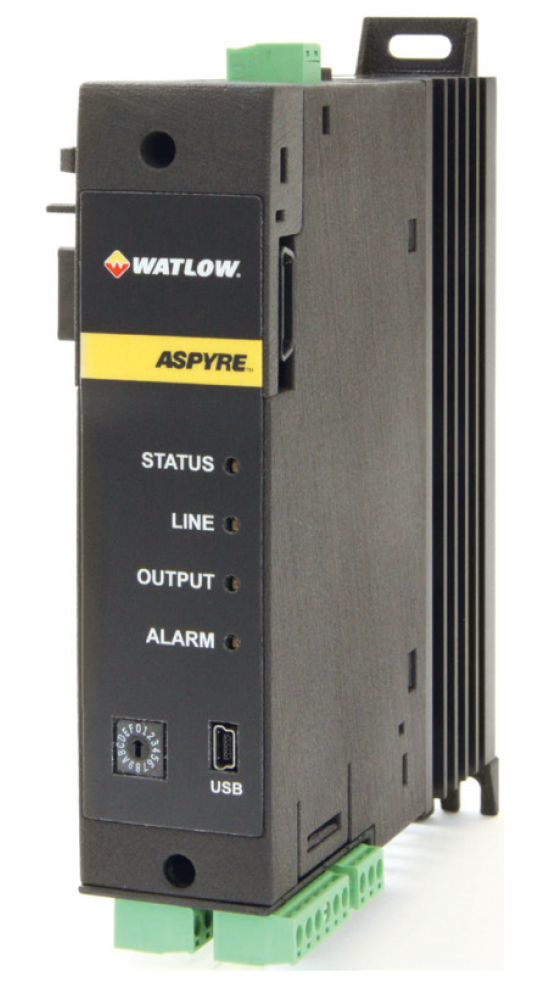

Watlow ASPYRE AT Smart Power Controller
Integrates easily with EZ-ZONE RM, PM PLUS and RMA PLUSTM controllers.
Overview
Features
- 12, 24 and 48 amps options
- 480V max line and load voltage
- ±2% of range accuracy
- 10Hz update rate
- 24V output voltage
- 4 to 20mA, 0 to 20mADC, 100Ω impedance current (analog input)
- 0 to 20mADC ±120μA or 4 to 20mADC into 500Ω max. load with 30μA nominal resolution (analog output)
- UL 508 Listed
- IP20
Description
The Watlow ASPYRE AT Smart Power Controller is a flexible, compact and scalable smart SCR power controllers that features multiple advanced firing and control mode algorithms combined with sophisticated diagnostics. It performs closed-loop control on current, voltage and power, which can improve temperature control by quickly responding to voltage sags or other load issues. The ASPYRE AT can connect with a PM PLUS or other Watlow controller via the inter-module bus to receive its set point signal. It is also possible to send the set point signal via a communications protocol such as Modbus RTU. The ASPYRE AT is also available with analog and digital inputs that allow it to receive a signal from other controllers.
Applications that benefit from a smart power controller include applications that demand precise temperature control, applications where system monitoring is important to reduce scrap and applications where there is a high likelilhood the line voltage variation will affect temperature control.
