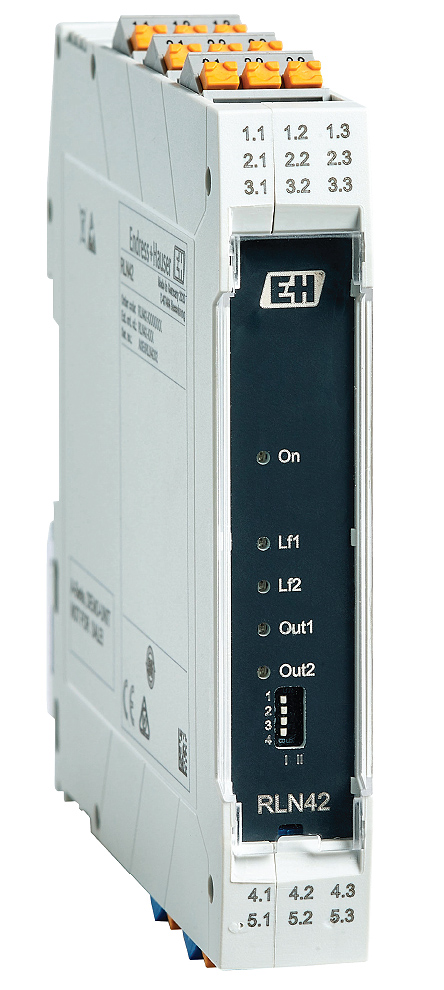

E+H RLN42 NAMUR Isolating Amplifier

Name: E+H RLN42 NAMUR Isolating Amplifier
Price: 255.24 USD
Availability: InStock

Two-channel NAMUR isolating amplifier for the transmission of binary switch signals.

Starting at $255.24

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Power supply: 20 to 250 V AC/DC
Loop power supply: 8 V DC
Function: 2-channel, changeover contact
Certificates
- ATEX IECEx II(1)G [Ex ia Ga] IIC, II(1) D [Ex ia Da] IIIC, II3G Ex ec nC IIC Gc
- DNV
For ambient temperatures -40 to 140°F (-40 to 60°C)

The E+H RLN42 NAMUR isolating amplifier is designed for operation of proximity switches according to EN 60947-5-6 (NAMUR) as well as open and mechanical contacts with resistive coupling elements. It has a universal power supply (24 to 230 V _AC/DC) and one relay output (changeover) per channel. The device is approved for intrinsically safe (Ex i) circuits up to zone 0 (gas) and zone 20 (dust) in the Ex area. RLN42 can be used in safety equipment up to SIL 2 in accordance with IEC 61508.

This isolating amplifier monitors the input circuits for line faults, such as line breaks and short-circuits (LFD). It is disengageable. Contains input for proximity sensors acc. to NAMUR (EN 60947-5-6); floating contacts or contacts with resistance circuit. The output-side relay contacts as signal output, direction of action can be selected via DIP switches. Configurable with resistive coupling element for line monitoring of mechanical switching contacts.

Spec Sheets

E+H RLN42 NAMUR Isolating Amplifier Datasheet (1020 KB)

Manuals

E+H RLN42 NAMUR Isolating Amplifier Manual (1.5 MB)

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
RLN42-AA2A	Call for information	14	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
