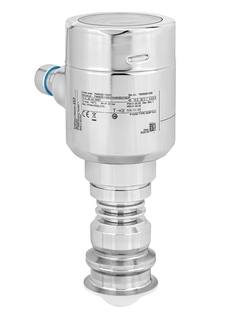

E+H Micropilot FMR63B Radar Sensor
80GHz radar sensor designed for continuous non-contact level measurement of liquids in applications with hygienic requirements.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- ±1mm (0.04in) accuracy
- -40 to 392 °F (-40 to 200 °C) process temperature
- Vacuum to 25bar (363psi) process pressure
- 80m (262ft) maximum measurement distance
- PEEK or PTFE antenna
- ~80GHz W-band
- SIL2 as per IEC 61508
- SIL3 for homogeneous redundancy
- Commission, operate, and troubleshoot with Bluetooth capability
Description
The E+H Micropilot FMR63B radar sensor is part of the new generation of 80 GHz radar sensors. The FMR63B's complete hygienic design makes it suitable for continuous non-contact level measurement in free space hygienic applications up to 80m. It offers high beam focusing for vessels with many internal fittings.
Wizards guide users through commissioning, proof tests, and verification of the devices to guarantee a simple operation. Heartbeat Technology offers process monitoring, verification of the radar's accuracy, and diagnostics to identify anomalies. The display's backlighting highlights errors immediately by changing from green to red. The FMR63B's digital communication allows simple device integration into asset management systems.
Documents
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 4 working days
Part Number | Price | Available | |
---|---|---|---|
FMR63B-URBAFDMJGMTA3EKB |
$4,979.73 | 3 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
