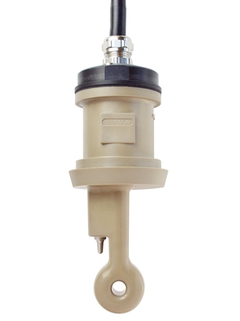

E+H Indumax CLS52 Analog Conductivity Sensor
Inductive conductivity sensor for applications with fast temperature changes.
Overview
Features
- Measurement range: 0.1 to 2000mS/cm
- Process temperature: Max. 257°F/125°C (short time up to 284°F/140°C)
- Process pressure: Max. 232 psi at 194°F (Max. 16 bar at 90°C)
- Ingress protection: IP 67
- Inductive conductivity measurement measuring principle
- ATEX certification
Description
The Indumax CLS52 analog conductivity sensor is equipped with a stainless steel temperature sensor that is an integrated Pt100 in a heat contact nut. Intended for use in the food industry, the sensors are injection-molded and made from high-resistance PEEK, allowing them to see the hygienic requirements of the food industry. The inductive conductivity cell contains an outside temperature sensor.
