Bently Nevada SCOUT200-IS Condition Monitor - Rental Program

Name: Bently Nevada SCOUT200-IS Condition Monitor - Rental Program
Price: 1000.0 USD
Availability: BackOrder

Intrinsically Safe (IS) hazardous-rated portable data collector, 2 sensor input channels.

Ready to purchase? Visit the Bently Nevada SCOUT200-IS for purchase options.

Bently Nevada SCOUT200-IS Condition Monitor - Rental Program — Bently Nevada SCOUT200-IS Condition Monitor - Unit with Included Accessories

Bently Nevada SCOUT200-IS Condition Monitor - Unit with Included Accessories
Bently Nevada SCOUT200-IS Condition Monitor

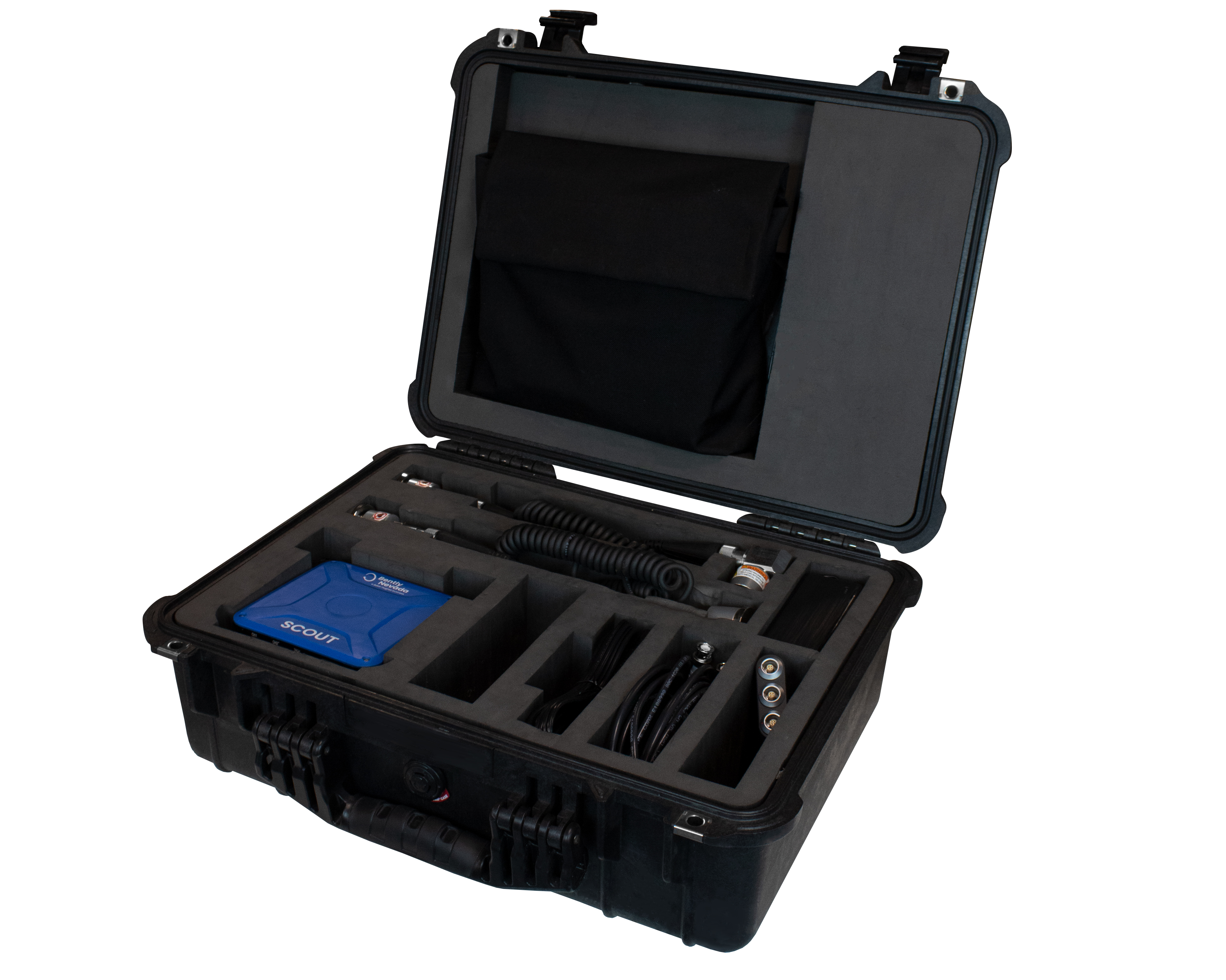

Bently Nevada SCOUT200-IS Condition Monitor - Hard Carrying Case

Starting at $1,000.00

View Company Reviews

Manufactured

By Bently Nevada

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Call for availability

Features

Intrinsically Safe (IS) hazardous-rated portable data collector
2 sensor input channels
Accelerometer, Velocity & displacement compatible
AC coupled range: 16 V peak-peak
DC coupled range: 0 to 20 V, -10 to 10 V, -20 to 0 V
Accuracy ±(0.1% + 1cpm)
Frequency range 25 to 40,000 Hz
Bluetooth communication

What's in the Box

SCOUT240IS-05
108M4044 + PLUS0230 Power Supply
AM3100T2-Z0 Accelerometer, top exit qty 3
AS3100S2-Z0 Accelerometer, side exit qty 1
138M7749 Transducer cable, 4 ft qty 4
113M5585 Accelerometer magnetic base qty 4
109M2385-012 BNC to silver-LEMO cable. Connects rack buffered outputs to CH1/CH2 inputs. qty 2
110M8172-012 BNC to black-LEMO cable. Connects rack buffered Keyphasor to Tach input. qty 1
113M9350 Channel 2-4 Breakout Cable qty 1
109M2384-01 Anti-static neck strap with Sensor Keeper qty 1
112M4551 Hard carrying case qty 1
109M1269 User guide qty 1
109M1270-01 Quick start guide qty 1
Bently_Manuals DVD qty 1
157M5734-01 Tablet, Class 1 Div 1 Rated qty 1
Tablet Case

Our rental units can be rented for a week or a month at a time. This unit is ready to use and has all the accessories that someone in the field needs. Contact us today to learn more.

The Bently Nevada SCOUT200-IS Condition Monitor Rental is an intrinsically safe portable data collector solution designed for hazardous environments. You can use this small form-factor, rugged device to take vibration recordings and upload the collected data for detailed analysis in Bently Nevada's System 1 Evolution (offered separately from Bently Nevada).

The overall system consisting of the data collector and the industrial handheld is rated ATEX Zone 1 / Zone 21 for non conductive dust, and CSA Class 1 Zone 1. The SCOUT200-IS data collector also gives you access to sites requiring hot work permits.

The data collector uses Bluetooth to communicate with the industrial handheld which is also rated for hazardous environments. The S1 Collector app exchanges data with System 1 Evolution via Wi-Fi or a cellular network.
