Bourdon MPG6 Pressure Gauge
Solid front gauge with ± 0.5% accuracy and fire retardant PBT case.
- By Bourdon
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- 4.5in (115mm) nominal size
- 0 to 10,000psi pressure range

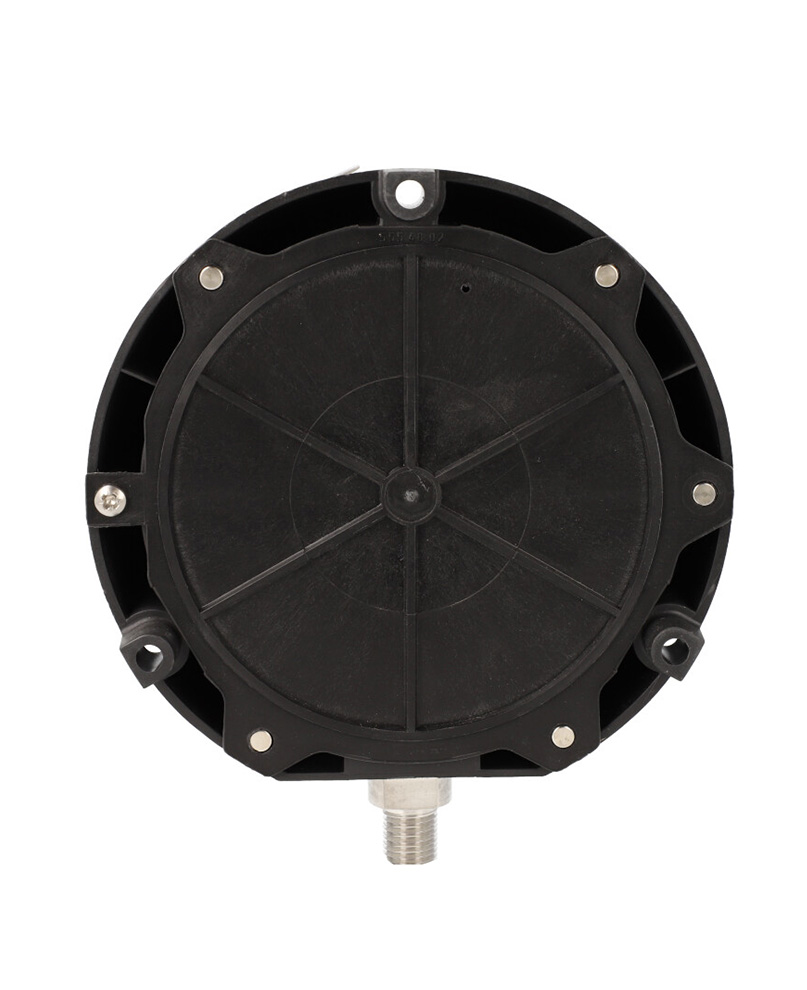

- Solid front gauge with solid front and pressure relief back
- For corrosive gases and liquids
- Stainless steel wetted parts

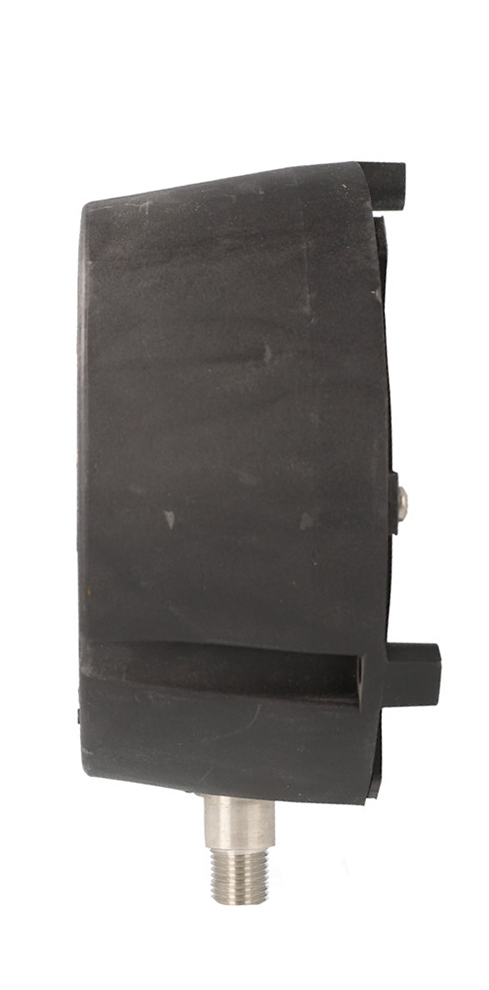

- Bottom connection
- Dry and liquid-filled versions
- IP 67 (EN 60529) protection rating
Description

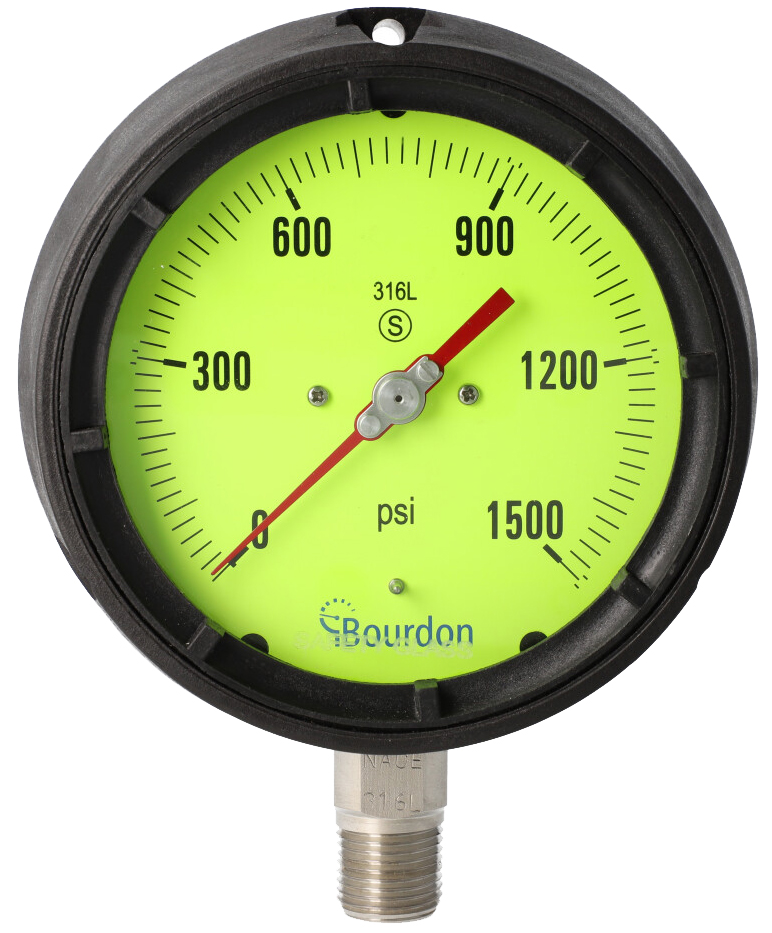

The Bourdon MPG6 pressure gauge is an analog, solid front gauge for pressure ranges from vacuum to 10,000psi, including compound and metric ranges. Designed for use with corrosive gases and liquids, the MPG6 has a fire retardant PBT (UL94 V0) case and bezel ring. With a nominal size of 4.5in (115mm), the gauge has a stainless steel process connection and Bourdon tube that is protected against leakages due to overpressure. Available process connections include 1/4 or 1/2in NPT. Standard accuracy is ± 0.5% (Class 2A).
The Bourdon MPG6 pressure gauge is available in a dry or liquid-filled version, with liquid fill options of low viscosity glycerin, high viscosity glycerin, silicone oil, silicone oil for lower temperatures, or fluorinated oil. Intelligent filling management requires less damping fluid.
Documents
Accessories
In Stock
Manufacturer Stock
| Part Number | Price | Available | |
|---|---|---|---|
|
MPG6-A50.H21 |
$237.93 | 359 in stock | |
|
MPG6-A60.H26 |
$237.93 | 167 in stock | |
|
MPG6-A50.H22 |
$237.93 | 131 in stock | |
|
MPG6-A60.H31 |
$267.97 | 118 in stock | |
|
MPG6-A50.H19 |
$237.93 | 111 in stock | |
|
MPG6-A60.H25 |
$237.93 | 93 in stock | |
|
MPG6-A60.H30 |
$267.97 | 89 in stock | |
|
MPG6-A60.H21 |
$237.93 | 83 in stock | |
|
MPG6-A60.H27 |
$237.93 | 80 in stock | |
|
MPG6-A60.H23 |
$237.93 | 76 in stock | |
|
MPG6-A60.H38 |
$267.97 | 75 in stock | |
|
MPG6-A60.H34 |
$267.97 | 71 in stock | |
|
MPG6-A60.H19 |
$237.93 | 53 in stock | |
|
MPG6-A50.H30 |
$267.97 | 29 in stock | |
|
MPG6-A60.H22 |
$237.93 | 26 in stock | |
|
MPG6-A60.H73 |
$286.46 | 25 in stock | |
|
MPG6-A60.H79 |
$286.46 | 25 in stock | |
|
MPG6-A50.H23 |
$237.93 | 23 in stock | |
|
MPG6-A60.H15 |
$273.70 | 18 in stock | |
|
MPG6-A50.H75 |
$286.46 | 16 in stock | |
|
MPG6-A60.H2C |
$286.45 | 14 in stock | |
|
MPG6-A63.H27 |
$273.33 | 14 in stock | |
|
MPG6-A50.H17 |
$237.93 | 13 in stock | |
|
MPG6-A60.B26 |
$237.93 | 12 in stock | |
|
MPG6-A62.H26 |
$270.83 | 12 in stock | |
|
MPG6-A60.H75 |
$286.46 | 11 in stock | |
|
MPG6-A50.H26 |
$237.93 | 7 in stock | |
|
MPG6-A50.H15 |
$273.70 | 6 in stock | |
|
MPG6-A50.H34 |
$267.97 | 6 in stock | |
|
MPG6-A50.H40 |
$286.46 | 6 in stock | |
|
MPG6-A50.H79 |
$286.46 | 6 in stock | |
|
MPG6-A60.H40 |
$286.46 | 6 in stock | |
|
MPG6-A60.H78 |
$286.45 | 6 in stock | |
|
MPG6-A60.H82 |
$286.46 | 6 in stock | |
|
MPG6-A50.H25 |
$237.93 | 5 in stock | |
|
MPG6-A62.H81 |
$319.36 | 5 in stock | |
|
MPG6-A50.H27 |
$237.93 | 4 in stock | |
|
MPG6-A60.H81 |
$286.46 | 4 in stock | |
|
MPG6-A62.H40 |
$319.36 | 4 in stock | |
|
MPG6-A62.H75 |
$319.36 | 4 in stock | |
|
MPG6-A51.H25 |
$270.83 | 3 in stock | |
|
MPG6-A62.H19 |
$270.83 | 3 in stock | |
|
MPG6-A62.H21 |
$270.83 | 3 in stock | |
|
MPG6-A60.D72 |
$286.46 | 2 in stock | |
|
MPG6-A61.H34 |
$300.87 | 2 in stock | |
|
MPG6-A63.H17 |
$273.33 | 2 in stock | |
|
MPG6-A50.H59 |
$286.46 | 1 in stock | |
|
MPG6-A60.D22 |
$237.93 | 1 in stock | |
|
MPG6-A60.D77 |
$286.46 | 1 in stock | |
|
MPG6-A60.H13 |
$273.70 | 1 in stock | |
|
MPG6-A61.H25 |
$270.83 | 1 in stock | |
|
MPG6-A62.H23 |
$270.83 | 1 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Click here to select options
