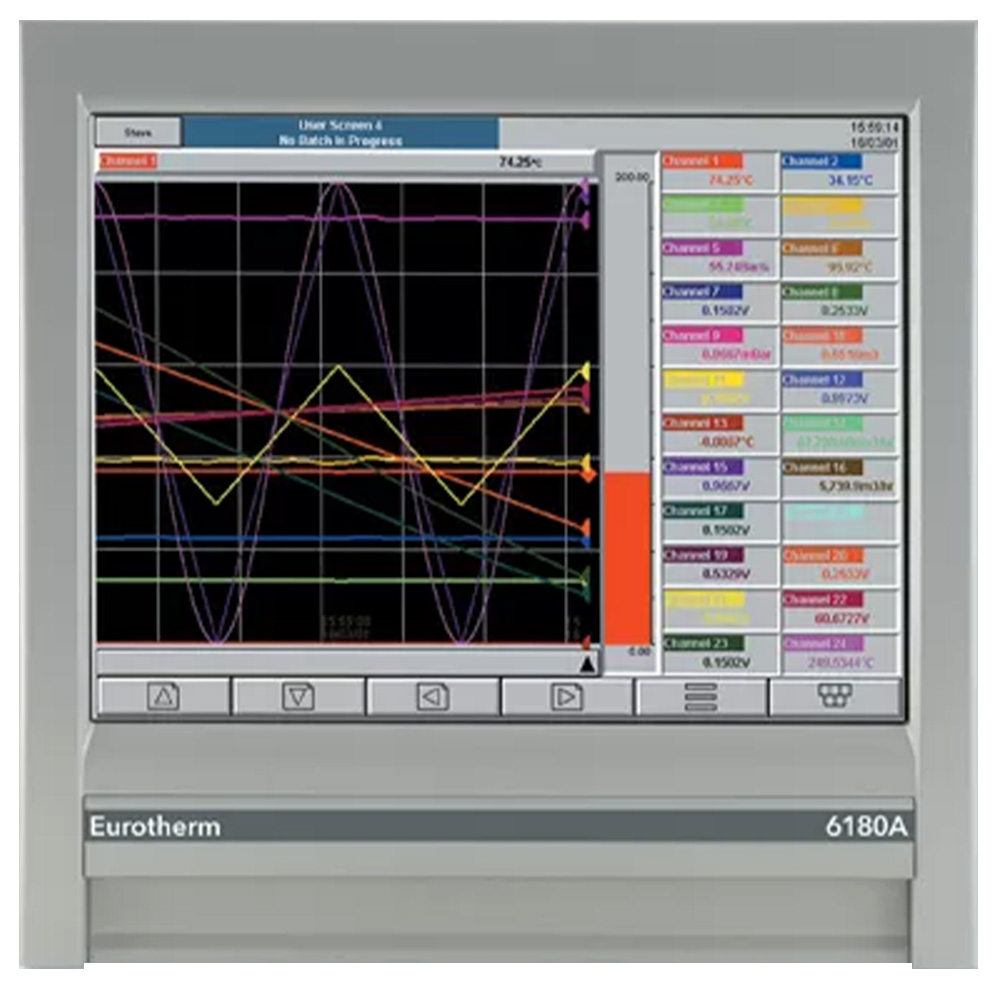

Eurotherm 6000A Series Graphic Recorder
Provides secure data recording with up to 48 universal input channels, 125ms recording interval, and full audit trail capability.
Overview
Features
- Channels:
- 6100A: up to 18
- 6180A: up to 48
- Relays:
- 6100A: 12
- 6180A: 27
- 8 analog outputs
- Up to 128 virtual channels
- 4 alarms per channel
- Up to 96 MB non-volatile flash memory
- Display:
- 6100A: 5.5in
- 6180A: 12.1in
- IP66 rated protection
Description
The Eurotherm 6100A and 6180A graphic recorders have been designed to meet industry requirements for data integrity of process records in pharmaceutical, aerospace, automotive, and food/beverage applications.
The 6100A and 6180A provides high input accuracy with a 125ms total sample rate for up to 48 input channels and the input channels are configurable to suit process requirements. Each instrument has a touch screen display to enable operators to clearly view process data in a variety of formats. The data can also be encrypted during transmission to archive or backup servers, utilizing SFTP to prevent interception or falsification of packets. Data redundancy is provided using a store and forward mechanism to avoid data loss if a network connection fails.
