MRU OPTIMAX Biogas Analyzer
Biogas, Landfill & Engine Exhaust systems for measurements of up to 7 gas components with up to 32,000 point data storage.
Overview
Features
- Biogas pressure measurement of 0 to +/‐300mbar
- O2 measurement of 0 to 25%
- CH4 measurement of 0 to 100%
- CO2 measurement of 0 to 100%
- Optional gas measurement for H2S, CO, NO, NO2
- 0 to 2,000ppm (5,000ppm overload) H2S
- 0 to 4,000ppm (20,000ppm overload) CO
- 0 to 1,000ppm (5,000ppm overload) NO
- 0 to 200ppm (1,000ppm overload) NO2
- Dual Bluetooth (Biogas and Engine Exhaust models only)
- Internal gas flow monitoring / alarm
- IRDA interface for high speed infrared thermal printer (sold seperately)
- Mini‐USB interface for cable data transfer to PC
- WLAN Interface
- Integrated SD card reader for additional data storage and data transfer to PC
- 4in TFT display with LED backlit
- High energy Li-Ion battery (up to 15 hours operation time)
Description
The MRU OPTIMAX Biogas Analyzer can simultaneously measures of up to 7 gas components. The biogas measurements include O2, H2S, CH4 and CO2 (infrared for CO2/CH4). The emissions measurements include O2, CO, NO, NO2 and CO2.
The biogas and engine exhaust models includes all combustion calculations and automatic measurement with user-specific adjustable determination of average value storing on SD card. These models also add the following accessories:
- Gas sampling probe for exhaust gas emission monitoring with 9ft Viton hose

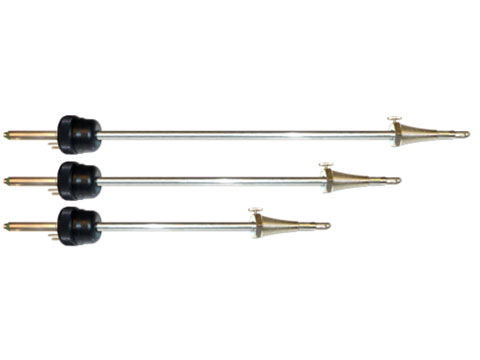

- 12in probe tube
- Heat deflector
- Transport case
The landfill model provides gas flow velocity measurement capable using Pitot tube (not included). It includes a US landfill gas probe with K-Type t/c input with 6in insertion cable, Type K thermocouple with 6in insertion cable, and transport case. All landfill models include a spare part set (O-rings, filter, and condensate show glass).
Landfill models with H2S gas measurement option also include the following:
- HC "sniffer" for gas leakage detection with 1.5 meter cable and swan neck
- AUX universal auxiliary port - connection for external gas sniffer
- Auto data logging function
