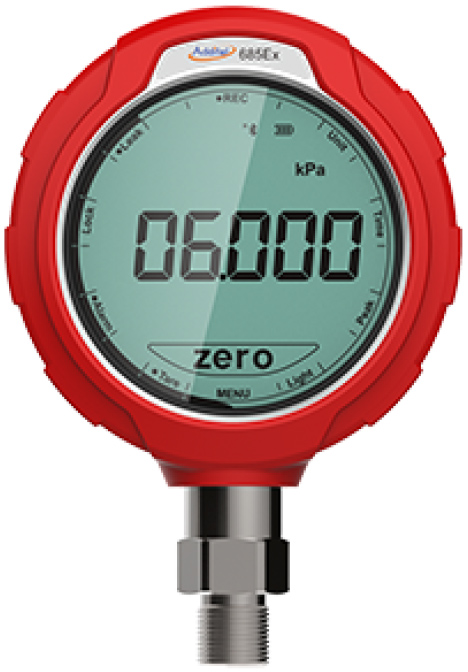

Additel ADT685 Digital Pressure Gauge

Pressure ranges up to 60,000psi (4,200bar), touch screen display, built-in barometer, intrinsically safe option available.

Additel ADT 685 Digital Pressure Gauge
Additel ADT 685 Digital Pressure Gauge

Starting at $2,072.00

View Company Reviews

Manufactured

By Additel

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

Pressure ranges up to 60,000 psi (4,200 bar)
0.02%, 0.05%FS or 0.1%RD accuracy
Fully temperature compensated accuracy
Gauge or absolute pressure
Built-in barometer
Touchscreen display
Intrinsically safe version 685Ex option
Bluetooth and USB communications
Data logging option
IP67 rated
ISO 17025 accredited calibration certificate with data

The Additel ADT685 digital pressure gauges feature microprocessor technology, state-of-the-art silicon pressure sensors and plenty of onboard storage capacity, these attractive and fully temperature compensated gauges provide high performance, durability and reliability. To provide support for intrinsically safe needs, the ADT685Ex comes ready to provide pressure measurements and recordings in the most demanding of environments. Each Additel 685 is also IP67 rated to protect your investment in dusty and/or wet environments.

The ADT685 digital pressure gauges contain a built-in barometer sensor which allows for the pressure reading to display in gauge pressure or absolute pressure with a simple menu selection. The built-in barometer is calibrated and certified to an accuracy of 50 Pa. With this unique feature, the ADT685 can be a solution for two common applications: gauge and absolute pressure measurement, and barometric or atmosphere pressure measurement.

Carrying case for one ADT673, ADT681A, ADT685, or ADT686 digital pressure gauge.

$257.00

Part Number	Price	Available
ADT685-02-GP300-PSI-N-DL Show Configuration	$2,800.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks. Call for expedite options". Click here to select options
