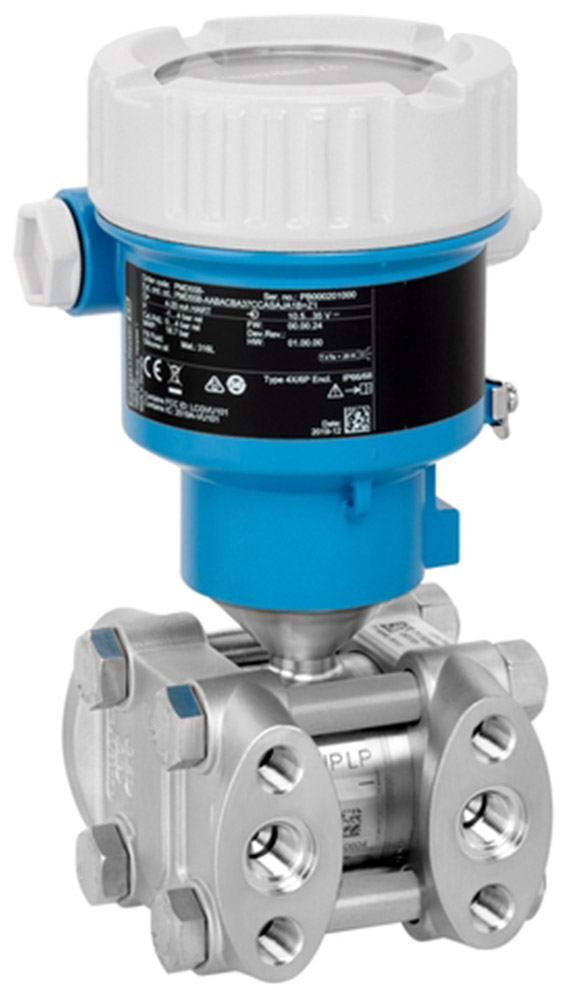

E+H Deltabar PMD55B Differential Pressure Transmitter

Smart transmitter with metal membrane for differential pressure monitoring in liquids and gases.

E+H Deltabar PMD55B Differential Pressure Transmitter
E+H Deltabar PMD55B Differential Pressure Transmitter

Starting at $2,000.80

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

30mbar to 40bar (0.45 to 600psi) pressure measuring range
Standard accuracy up to 0.075%
Platinum accuracy up to 0.055%
-40° to 110°C (-40° to 230°F) process temperature
100:1 max turn down
Optional Bluetooth connectivity for remote operation

The E+H Deltabar PMD55B differential pressure transmitter is robust and easy to operate either locally or remotely via the app on a mobile device using a secure Bluetooth connection. The software is designed to simplify the handling utilizing intuitive wizards that guide you through the setup and proof testing of the device which minimizes operating errors. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
PMD55B-AABADBH37HEASAJA1D Show Configuration	$1,905.00	6 in stock
PMD55B-AABADBH37HJASAJA1D Show Configuration	$1,976.34	2 in stock
PMD55B-AABACBH37HJGSAJA7D Show Configuration	$1,867.45	1 in stock
PMD55B-CDBADBH37HFGSBJA1D Show Configuration	$1,963.25	1 in stock

Base Price:: $1,540.94
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART (+$128.17)
Display and Operation: Segment display w/o buttons + Bluetooth (+$153.40)
Housing and Material: Single compartment; Alu, coated (+$31.44)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 45psi
Calibration and Unit: Nominal value; inH2O/ftH2O
Installation: Horizontal impulse line, left side high pressure, with side vent (+$51.05)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM
Reference Accuracy: Standard, 0.075%
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $1,540.94
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART (+$128.17)
Display and Operation: Segment display w/o buttons + Bluetooth (+$153.40)
Housing and Material: Single compartment; Alu, coated (+$31.44)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 45psi
Calibration and Unit: Customized linear; see additional spec. (+$71.34)
Installation: Horizontal impulse line, left side high pressure, with side vent (+$51.05)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM
Reference Accuracy: Standard, 0.075%
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $1,540.94
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART (+$128.17)
Display and Operation: Segment display w/o buttons (+$95.56)
Housing and Material: Single compartment; Alu, coated (+$31.44)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 45psi
Calibration and Unit: Customized linear; see additional spec. (+$71.34)
Installation: Vertical impulse line, left side high pressure, with vent
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Inert oil
Seal: FKM
Reference Accuracy: Standard, 0.075%
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $1,540.94
Approval Type: CSA C/US
Approval: CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
Output: 2-wire 4-20mA HART (+$128.17)
Display and Operation: Segment display w/o buttons + Bluetooth (+$153.40)
Housing and Material: Single compartment; Alu, coated (+$31.44)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 45psi
Calibration and Unit: Nominal value; psi
Installation: Vertical impulse line, left side high pressure, with vent
Process Connection: NPT1/4-18 DIN19213 M10, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM
Reference Accuracy: Standard, 0.075%
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMD55B-AABACBH37DFASAJA1BNUNZ	Call for information	4	Call to order
PMD55B-AABADBH37HFKSAJA1BNRNXQ2	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
