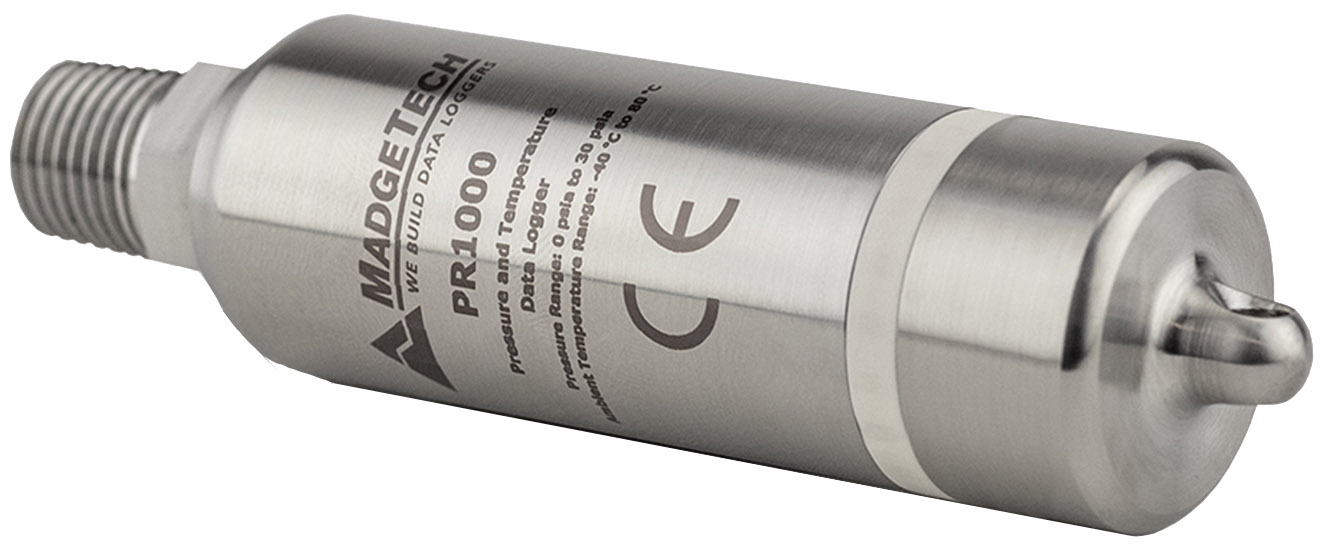

MadgeTech PR1000 Data Logger
Temperature, pressure and transient pressure data logger. Includes ISO/IEC 17025 Accredited Certificate.
Overview
Features
- 0 to 30/100/300/500 PSIA/PSIG; 0 to 1000/5000 PSIA
- 1000 and 5000 PSIA pressure range
- -40 to 80°C (-40 to 176°F) temperature range
- ±2.0°C temperature calibrated accuracy
- 316 Stainless Steel/Radel construction
- ISO/IEC 17025 certified
Description
The MadgeTech PR1000 Data Logger is a temperature, pressure and transient pressure data logger. This device is fully submersible and available in 10 models ranging from 30 to 5000psi.
Standing just under 4 inches tall and an inch in diameter, the PR1000 is compact for easy placement and features a ¼ inch NPT fitting for quick connection. The PR1000 can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40° to 80°C (-40 to 176°F) with an accuracy of ±2.0°C.
The PR1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
