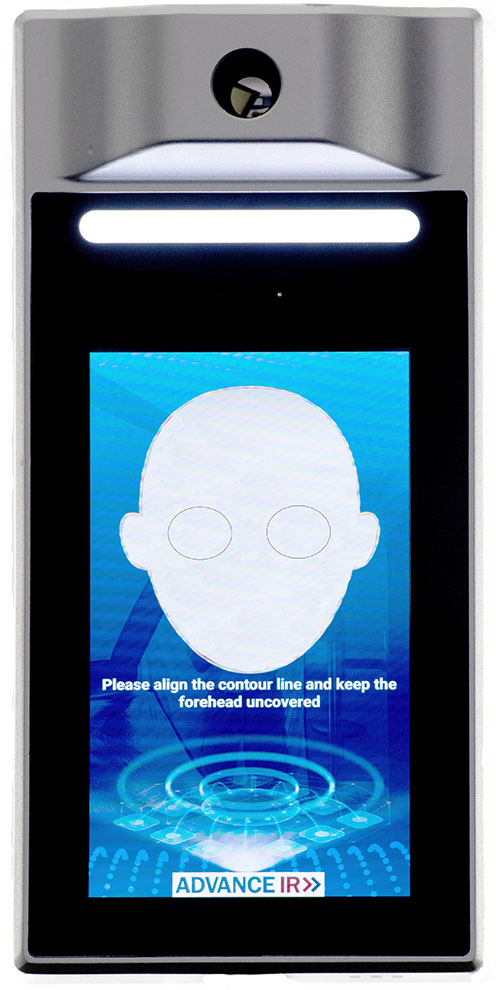

Advance IR TSCAN-750 Temperature Scanning Kiosk
Combines infrared (IR) temperature measurement and facial recognition with door lock integration to control entry.
Overview
Features
- 89.6°F to 113°F (32°C to 45°C) temperature measurement range
- ±0.9°F (±0.5°C) temperature measurement accuracy
- 8 - 20in (0.2 - 0.5m) temperature measurement distance
- Facial recognition library up to 50,000
- 99% Identification accuracy
- 16GB of storage with support for external storage
- WiFi and Bluetooth 4.0 wireless connection support
What's in the Box
- Power Adapter
- 4 Power International Adapter Plugs: 1x Type A, 1x Type C, 1x Type G, 1x Type O No Ground
- 4 Cables: 1x 2 pin, 1x 6 pin, 1x 7 pin, and 1x 11 pin
- Port Cover
- Wall mount kit with hardware
Description
The Advance IR TSCAN-750 temperature scanning kiosk combines infrared (IR) temperature measurement with facial recognition and door lock integration to control entry.
Simple operation requires that the user stands in front of the device, and within one second, their identity and body temperature are automatically logged and recorded. After the user's identity is authenticated and a normal body temperature is recorded, the user is granted entry/access to pass. If the user's body temperature exceeds a normal value, the system will automatically alarm and prohibit passage.
- Full and partial facial recognition with capability to detect a user while wearing a face mask
- Accurate, fast response, non-contact forehead temperature scanning with high temperature alarms
- Connects to secure gate entry systems
- Various modes of operation for use in a wide range of settings, including workplaces, educational facilities, sports venues, retail stores, and airports
- HTML user interface for data access on a local network for use by employers and educational campuses
- Individual record keeping of time (entry/exit) and attendance with body temperature readings
- Quick Screening Mode enables user access when individual data records are not required
