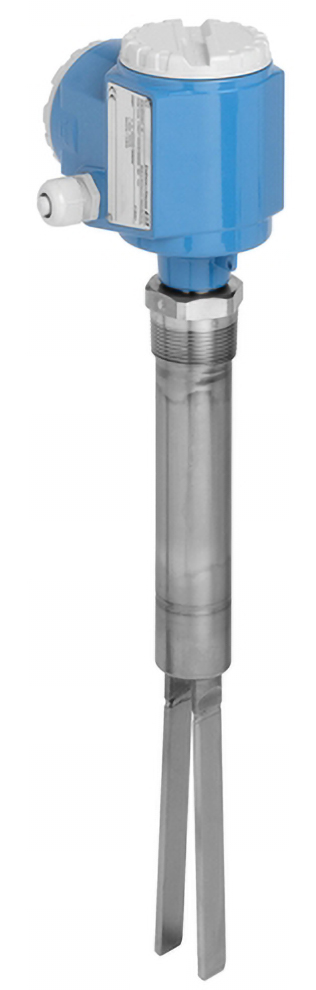

E+H Soliphant FTM51 Level Switch

Name: E+H Soliphant FTM51 Level Switch
Price: 1547.0 USD
Availability: InStock

For use in silos containing fine-grained or powdery solids even with a low bulk density.

Starting at $1,547.00

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

Threads, flanges and hygienic process connection
-60 to 540°F (-50 to 280°C) temperature
-1 to +25bar (-14.5 to +360psi) pressure
11.81in to 157.48in (300mm to 4,000mm) sensor length
316L (3,2µm, 0,8 µm, PTFE coated, ETFE coated) sensor material
International explosion protection certificates
SIL2 in accordance with IEC 61508

E+H Soliphant FTM51 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

Spec Sheets

E+H Soliphant FTM51 Level Switch Data Sheet PDF (1.9 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Process Connection	Sensor Length	Electronics and Output	Type of Probe	Price	Available
FTM51-5AFAM1AH2AC [300mm] Show Full Configuration	ATEX II 1/2G Ex de IIC T6 ATEX II 1/2D Ex ta/tb IIIC T90oC	NPS 2in Cl.150 RF flange ASME B16.5	300 mm	FEM51; 2-wire 19-253VAC	Compact	$3,009.03	23 in stock
FTM51-DAG2Q4A57AA [18in] Show Full Configuration	FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2	NPS 3in Cl.150 RF flange ASME B16.5	18 inches	FEM54; relay DPDT, 19-253VAC/55VDC	Compact	$2,394.55	10 in stock
FTM51-DAG2Q4A57AA [12in] Show Full Configuration	FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2	NPS 3in Cl.150 RF flange ASME B16.5	12 inches	FEM54; relay DPDT, 19-253VAC/55VDC	Compact	$2,356.39	8 in stock
FTM51-DAG2Q4A57AA [14in] Show Full Configuration	FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2	NPS 3in Cl.150 RF flange ASME B16.5	14 inches	FEM54; relay DPDT, 19-253VAC/55VDC	Compact	$2,369.11	4 in stock
FTM51-AGJBU4A13AA [12in] Show Full Configuration	Non-hazardous area	Thread ANSI NPT1-1/2, d=43mm/1.69in sensor combinable w sliding sleeve	12 inches	FEM54; relay DPDT, 19-253VAC/55VDC	Compact	$2,392.23	3 in stock
FTM51-DGK2Q4A57AA [12in] Show Full Configuration	FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2	Thread ANSI NPT1-1/4, d=36mm/1.42in sensor	12 inches	FEM54; relay DPDT, 19-253VAC/55VDC	Compact	$1,837.69	3 in stock
FTM51-DAG2Q4A57AA [15in] Show Full Configuration	FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2	NPS 3in Cl.150 RF flange ASME B16.5	15 inches	FEM54; relay DPDT, 19-253VAC/55VDC	Compact	$2,375.47	2 in stock
FTM51-AAG2P4A37AA [20in] Show Full Configuration	Non-hazardous area	NPS 3in Cl.150 RF flange ASME B16.5	20 inches	FEM54; relay DPDT, 19-253VAC/55VDC	Compact	$2,224.10	1 in stock
FTM51-AGX2Q2A37AA [12in] Show Full Configuration	Non-hazardous area	Thread ANSI NPT1-1/2, d=36mm/1.42in sensor	12 inches	FEM52; 3-wire PNP 10-55VDC	Compact	$1,631.13	1 in stock
FTM51-DGJ2Q4AH7AA [12in] Show Full Configuration	FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2	Thread ANSI NPT1-1/2, d=43mm/1.69in sensor combinable w sliding sleeve	12 inches	FEM54; relay DPDT, 19-253VAC/55VDC	Compact	$2,105.85	1 in stock
FTM51-DTDAP2A73AA [20in] Show Full Configuration	FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2	Tri-Clamp ISO2852 DN40-51 (2in)	20 inches	FEM52; 3-wire PNP 10-55VDC	Compact	$2,345.50	1 in stock

Base Price:: $1,470.68
Approval Type: ATEX
Approval: ATEX II 1/2G Ex de IIC T6 ATEX II 1/2D Ex ta/tb IIIC T90oC (+$336.50)
Process Connection: NPS 2in Cl.150 RF flange ASME B16.5 (+$407.51)
Material and Surface Refinement: PTFE>316L; fork coated, reduces build-up, no corrosion safety (+$216.82)
Unit of Measurement: Millimeters
Bulk Density: Min 50g/l, short fork
Sensor Length: 300 mm (+$72.84)
Electronics and Output: FEM51; 2-wire 19-253VAC
Type of Probe: Compact
Housing: T13 Alu IP66/68 NEMA Type 4X Encl., separate conn. compartment (+$328.97)
Cable Entry: Gland M20 (Ex d > thread M20)
Additional Option 1: Not selected
Additional Option 2: EN10204-3.1 material (wetted parts), inspection certificate (+$175.71)
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: FM
Approval: FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2 (+$183.17)
Process Connection: NPS 3in Cl.150 RF flange ASME B16.5 (+$542.09)
Material and Surface Refinement: 316L; Ra<=3.2um/126uin, w/o
Unit of Measurement: Inches
Bulk Density: Min 50g/l, short fork
Sensor Length: 18 inches (+$114.48)
Electronics and Output: FEM54; relay DPDT, 19-253VAC/55VDC (+$46.71)
Type of Probe: Compact
Housing: F13 Alu IP66/68 NEMA Type 4X Encl. (+$37.42)
Cable Entry: Thread NPT3/4
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: FM
Approval: FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2 (+$183.17)
Process Connection: NPS 3in Cl.150 RF flange ASME B16.5 (+$542.09)
Material and Surface Refinement: 316L; Ra<=3.2um/126uin, w/o
Unit of Measurement: Inches
Bulk Density: Min 50g/l, short fork
Sensor Length: 12 inches (+$76.32)
Electronics and Output: FEM54; relay DPDT, 19-253VAC/55VDC (+$46.71)
Type of Probe: Compact
Housing: F13 Alu IP66/68 NEMA Type 4X Encl. (+$37.42)
Cable Entry: Thread NPT3/4
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: FM
Approval: FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2 (+$183.17)
Process Connection: NPS 3in Cl.150 RF flange ASME B16.5 (+$542.09)
Material and Surface Refinement: 316L; Ra<=3.2um/126uin, w/o
Unit of Measurement: Inches
Bulk Density: Min 50g/l, short fork
Sensor Length: 14 inches (+$89.04)
Electronics and Output: FEM54; relay DPDT, 19-253VAC/55VDC (+$46.71)
Type of Probe: Compact
Housing: F13 Alu IP66/68 NEMA Type 4X Encl. (+$37.42)
Cable Entry: Thread NPT3/4
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: Non-hazardous
Approval: Non-hazardous area
Process Connection: Thread ANSI NPT1-1/2, d=43mm/1.69in sensor combinable w sliding sleeve
Material and Surface Refinement: PTFE>316L; completely coated, reduces build-up, no corrosion safety (+$616.84)
Unit of Measurement: Inches
Bulk Density: Min 10g/l, surface refinement, standard fork
Sensor Length: 12 inches (+$258.00)
Electronics and Output: FEM54; relay DPDT, 19-253VAC/55VDC (+$46.71)
Type of Probe: Compact
Housing: F16 Polyester IP66/67 NEMA Type 4X Encl. + transparent cover
Cable Entry: Thread NPT1/2
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: FM
Approval: FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2 (+$183.17)
Process Connection: Thread ANSI NPT1-1/4, d=36mm/1.42in sensor (+$23.39)
Material and Surface Refinement: 316L; Ra<=3.2um/126uin, w/o
Unit of Measurement: Inches
Bulk Density: Min 50g/l, short fork
Sensor Length: 12 inches (+$76.32)
Electronics and Output: FEM54; relay DPDT, 19-253VAC/55VDC (+$46.71)
Type of Probe: Compact
Housing: F13 Alu IP66/68 NEMA Type 4X Encl. (+$37.42)
Cable Entry: Thread NPT3/4
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: FM
Approval: FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2 (+$183.17)
Process Connection: NPS 3in Cl.150 RF flange ASME B16.5 (+$542.09)
Material and Surface Refinement: 316L; Ra<=3.2um/126uin, w/o
Unit of Measurement: Inches
Bulk Density: Min 50g/l, short fork
Sensor Length: 15 inches (+$95.40)
Electronics and Output: FEM54; relay DPDT, 19-253VAC/55VDC (+$46.71)
Type of Probe: Compact
Housing: F13 Alu IP66/68 NEMA Type 4X Encl. (+$37.42)
Cable Entry: Thread NPT3/4
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: Non-hazardous
Approval: Non-hazardous area
Process Connection: NPS 3in Cl.150 RF flange ASME B16.5 (+$542.09)
Material and Surface Refinement: 316L; Ra<=3.2um/126uin, w/o
Unit of Measurement: Inches
Bulk Density: Standard fork, 10 to 50 g/l solids density (light media)
Sensor Length: 20 inches (+$127.20)
Electronics and Output: FEM54; relay DPDT, 19-253VAC/55VDC (+$46.71)
Type of Probe: Compact
Housing: F17 Alu IP66/67 NEMA Type 4X Encl. (+$37.42)
Cable Entry: Thread NPT3/4
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: Non-hazardous
Approval: Non-hazardous area
Process Connection: Thread ANSI NPT1-1/2, d=36mm/1.42in sensor (+$46.71)
Material and Surface Refinement: 316L; Ra<=3.2um/126uin, w/o
Unit of Measurement: Inches
Bulk Density: Min 50g/l, short fork
Sensor Length: 12 inches (+$76.32)
Electronics and Output: FEM52; 3-wire PNP 10-55VDC
Type of Probe: Compact
Housing: F17 Alu IP66/67 NEMA Type 4X Encl. (+$37.42)
Cable Entry: Thread NPT3/4
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: FM
Approval: FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2 (+$183.17)
Process Connection: Thread ANSI NPT1-1/2, d=43mm/1.69in sensor combinable w sliding sleeve
Material and Surface Refinement: 316L; Ra<=3.2um/126uin, w/o
Unit of Measurement: Inches
Bulk Density: Min 50g/l, short fork
Sensor Length: 12 inches (+$76.32)
Electronics and Output: FEM54; relay DPDT, 19-253VAC/55VDC (+$46.71)
Type of Probe: Compact
Housing: T13 Alu IP66/68 NEMA Type 4X Encl., separate conn. compartment (+$328.97)
Cable Entry: Thread NPT3/4
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $1,470.68
Approval Type: FM
Approval: FM + CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSAC/US DIP Cl.II,III Div1+2 (+$183.17)
Process Connection: Tri-Clamp ISO2852 DN40-51 (2in) (+$272.90)
Material and Surface Refinement: PTFE>316L; fork coated, reduces build-up, no corrosion safety (+$216.82)
Unit of Measurement: Inches
Bulk Density: Standard fork, 10 to 50 g/l solids density (light media)
Sensor Length: 20 inches (+$127.20)
Electronics and Output: FEM52; 3-wire PNP 10-55VDC
Type of Probe: Compact
Housing: F15 316L hygiene IP66/67 NEMA Type 4X Encl. (+$74.73)
Cable Entry: Thread NPT1/2
Additional Option 1: Not selected
Additional Option 2: Not selected
Marking: Not included
Tagging Options: NA

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
FTM51-DGJBU4AH7AA 21.75"	Call for information	1	Call to order
FTM51-AGJ2M4A37AA 1,000mm	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
