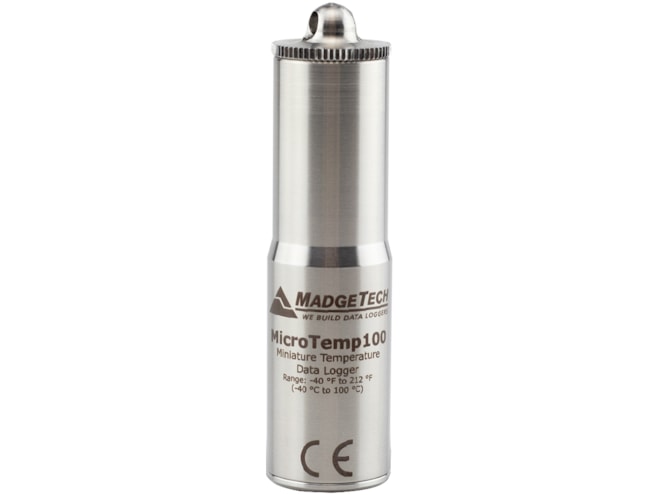

MadgeTech MICROTEMP100 Data Logger
Miniature data logger built to withstand temperatures up to 212 °F (100°C).
Overview
Features
- 2.6in tall
- Submersible up to 230ft
- Programmable high/low alarms
- Measures temperatures up to 212°F (100°C)
- Memory: 32,767 readings
- Reading rate: 1 reading every 2s up to 1 reading every 12hrs
- Includes ISO17025 accredited calibration certificate
Description
The MadgeTech MICROTEMP100 Data Logger is built to withstand temperatures up to 212°F (100°C). Only 2.6 inches (66 mm) tall and 0.7 inches (18 mm) in diameter, this data logger can easily fit into the smallest spaces. The MicroTemp100 measures and records temperatures ranging from -40 to 212°F (-40 to 100°C) and is submersible up to 230 feet (70 m). The MicroTemp100 has a storage capacity of 32,767 readings and is equipped with an LED alarm to warn when user-specified high/low temperature limits are breached.
The The MicroTemp100 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units, including Pasteurization Units (PU).
