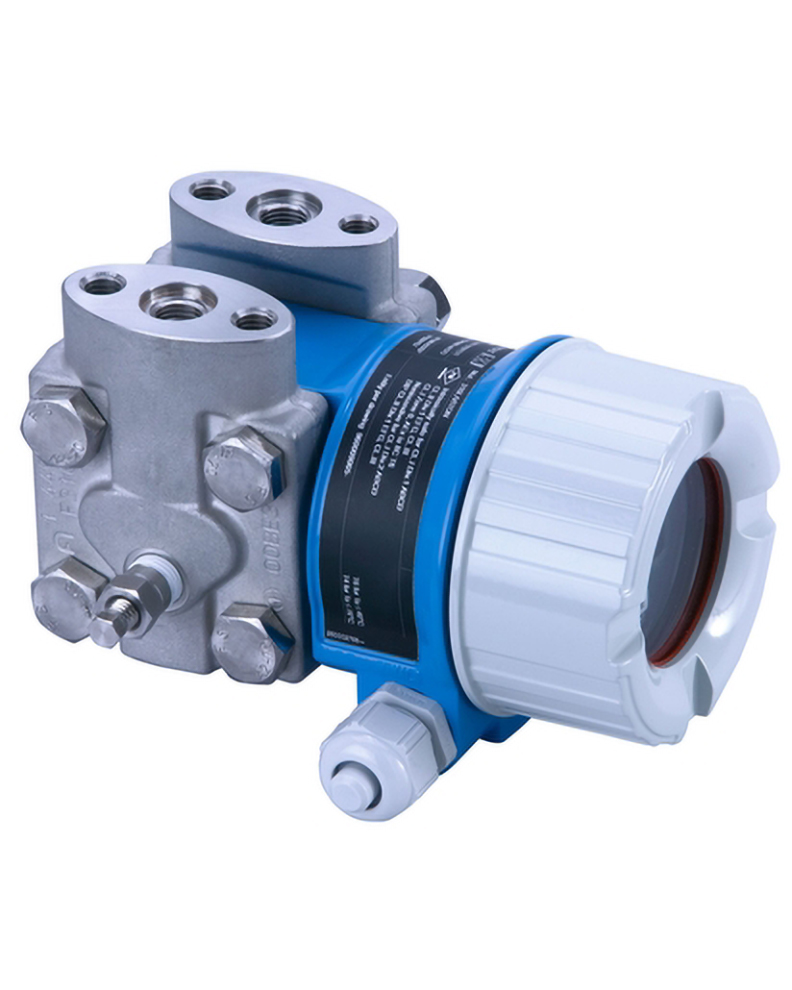

E+H Deltabar PMD55 Pressure Transmitter

Differential pressure transmitter with piezoresistive sensor and welded metallic membrane, typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases.

E+H Deltabar PMD55 Pressure Transmitter
E+H Deltabar PMD55 Pressure Transmitter 2

Starting at $2,223.87

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

Threaded process connections
-40 to 185°F (-40 to 85°C) process temperature
0.5mbar to 40bar (0.0072 to 600psi) measuring range
±0.1%, "Platinum" ±0.075% (optional) accuracy
4 to 20mA HART outputs
HART digital communication
ATEX, FM, CSA, IECEx, INMETRO, NEPSI, TIIS
SIL
NACE MR0103, NACE MR0175, EN10204-3.1

The E+H Deltabar PMD55 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

Spec Sheets

E+H Deltabar PMD55 Pressure Transmitter Data Sheet (2.4 MB)

Manuals

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Links

All possible part numbers

Part Number	Approval	Output	Display and Operation	Housing	Electrical Connection	Nominal Pressure PN	Sensor Nominal Value	Calibration and Unit	Process Connection	Price	Available
PMD55-FC21BD27CGJHAJA1AZ1 [52006326] Show Full Configuration	FM DIP Cl.II,III Div.1 Gr.E-G, zone 21,22	4-20mA HART	LCD, push button on display/electronics	F30 Alu, glass window	Thread NPT1/2, IP66/67 NEMA4X/6P	1bar/100kPa/14.5psi	30mbar/3kPa/0.45psi	Customized pressure	NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90°	$2,372.45	2 in stock

Base Price:: $1,566.49
Approval: FM DIP Cl.II,III Div.1 Gr.E-G, zone 21,22 (+$40.72)
Output: 4-20mA HART (+$359.71)
Display and Operation: LCD, push button on display/electronics (+$147.28)
Housing: F30 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/67 NEMA4X/6P
Nominal Pressure PN: 1bar/100kPa/14.5psi
Sensor Nominal Value: 30mbar/3kPa/0.45psi
Reference Accuracy: Standard
Calibration and Unit: Customized pressure (+$73.62)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90° (+$150.39)
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM Viton
Additional Operation Language: Without
Calibration: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Tagging, see additional spec
Tagging Options: Tag plate Stainless Steel (+$34.24)
Bus Address Options: Without

Reconfigure

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Output	Display and Operation	Housing	Electrical Connection	Nominal Pressure PN	Sensor Nominal Value	Calibration and Unit	Process Connection	Price	Available
PMD55-AA21BD67LGFHAJA1J Show Full Configuration	Non-hazardous area	4-20mA HART	LCD, push button on display/electronics	F30 Alu, glass window	Thread NPT1/2, IP66/67 NEMA4X/6P	70bar/7MPa/1015psi	16bar/1.6MPa/240psi	Nominal value; psi	NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90°	$2,223.87	8 in stock
PMD55-AA21BD67GGEHAJA1A Show Full Configuration	Non-hazardous area	4-20mA HART	LCD, push button on display/electronics	F30 Alu, glass window	Thread NPT1/2, IP66/67 NEMA4X/6P	70bar/7MPa/1015psi	1bar/100kPa/15psi	Nominal value; inH2O/ftH2O	NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90°	$2,223.87	1 in stock
PMD55-AA21BD67LGEHAJA1APB Show Full Configuration	Non-hazardous area	4-20mA HART	LCD, push button on display/electronics	F30 Alu, glass window	Thread NPT1/2, IP66/67 NEMA4X/6P	70bar/7MPa/1015psi	16bar/1.6MPa/240psi	Nominal value; inH2O/ftH2O	NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90°	$2,367.99	1 in stock
PMD55-FD21BD67GGJHAJA1AAA Show Full Configuration	FM NI Cl.I Div.2 Gr.A-D, zone 2	4-20mA HART	LCD, push button on display/electronics	F30 Alu, glass window	Thread NPT1/2, IP66/67 NEMA4X/6P	70bar/7MPa/1015psi	1bar/100kPa/15psi	Customized pressure	NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90°	$2,338.21	1 in stock

Base Price:: $1,566.49
Approval: Non-hazardous area
Output: 4-20mA HART (+$359.71)
Display and Operation: LCD, push button on display/electronics (+$147.28)
Housing: F30 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/67 NEMA4X/6P
Nominal Pressure PN: 70bar/7MPa/1015psi
Sensor Nominal Value: 16bar/1.6MPa/240psi
Reference Accuracy: Standard
Calibration and Unit: Nominal value; psi
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90° (+$150.39)
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: EPDM
Additional Operation Language: Without
Calibration: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Base Price:: $1,566.49
Approval: Non-hazardous area
Output: 4-20mA HART (+$359.71)
Display and Operation: LCD, push button on display/electronics (+$147.28)
Housing: F30 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/67 NEMA4X/6P
Nominal Pressure PN: 70bar/7MPa/1015psi
Sensor Nominal Value: 1bar/100kPa/15psi
Reference Accuracy: Standard
Calibration and Unit: Nominal value; inH2O/ftH2O
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90° (+$150.39)
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM Viton
Additional Operation Language: Without
Calibration: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Base Price:: $1,566.49
Approval: Non-hazardous area
Output: 4-20mA HART (+$359.71)
Display and Operation: LCD, push button on display/electronics (+$147.28)
Housing: F30 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/67 NEMA4X/6P
Nominal Pressure PN: 70bar/7MPa/1015psi
Sensor Nominal Value: 16bar/1.6MPa/240psi
Reference Accuracy: Standard
Calibration and Unit: Nominal value; inH2O/ftH2O
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90° (+$150.39)
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM Viton
Additional Operation Language: Without
Calibration: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Mounting bracket, wall/pipe, 316L, heavy duty design (+$144.12)
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Base Price:: $1,566.49
Approval: FM NI Cl.I Div.2 Gr.A-D, zone 2 (+$40.72)
Output: 4-20mA HART (+$359.71)
Display and Operation: LCD, push button on display/electronics (+$147.28)
Housing: F30 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/67 NEMA4X/6P
Nominal Pressure PN: 70bar/7MPa/1015psi
Sensor Nominal Value: 1bar/100kPa/15psi
Reference Accuracy: Standard
Calibration and Unit: Customized pressure (+$73.62)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90° (+$150.39)
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM Viton
Additional Operation Language: English
Calibration: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMD55-AA22AD67LGFHA4A1AAAN3PJ	Call for information	1	Call to order
PMD55-AA21BD67HDFHAJA1CN3PJ	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
