E+H Cerabar PMP55 Pressure Transmitter

Digital pressure transmitter with metal diaphragm seal, typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids.

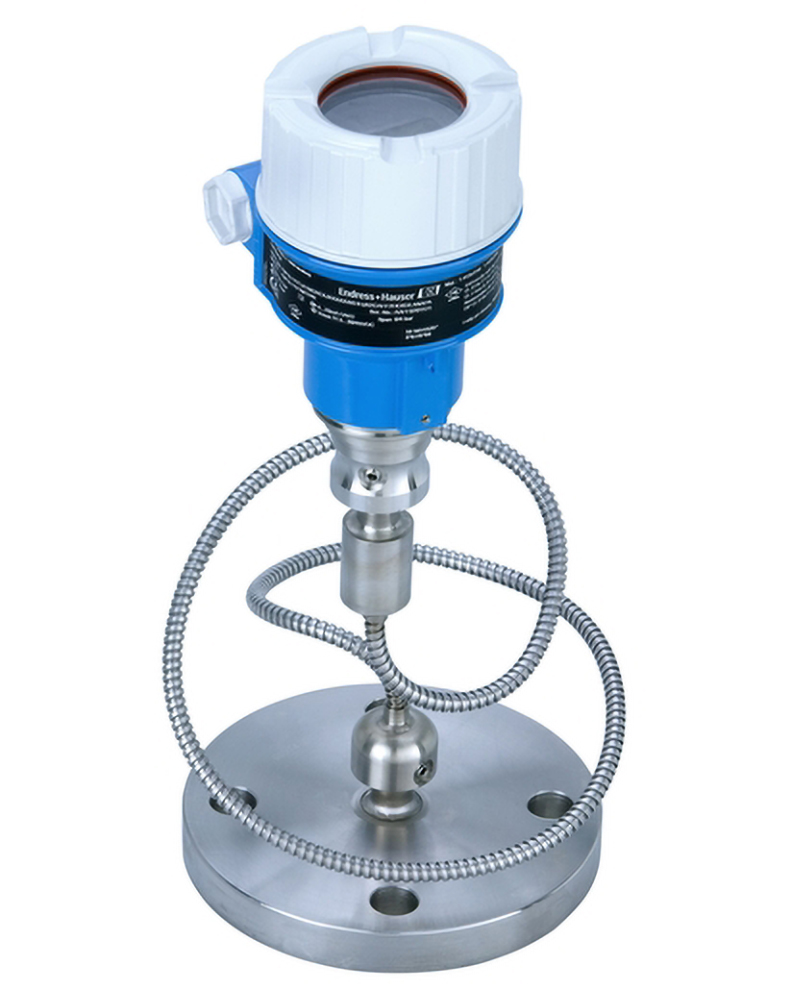

E+H Cerabar PMP55 Pressure Transmitter
E+H Cerabar PMP55 Pressure Transmitter Separate Housing

Starting at $2,366.30

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Single chamber aluminum or stainless steel (316L) housing.
Threads, flanges or hygienic connections process connections
-94 to 752°F (-70 to 400°C) process temperature
-1/0 up to +400bar (-15/0 up to +6,000psi) measuring ranges
±0.15%, accuracy "Platinum" ±0.075%
13,123ft (4000m) H2O max measurement distance
4 to 20mA HART: 11,5 to 45V DC; Ex ia: 11,5 to 30V DC
PROFIBUS PA, FOUNDATION Fieldbus
ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, SIL
3A, EHEDG, CoC ASME-BPE
GL/ ABS/ LR/ BV/ DNV

The Cerabar PMP55 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids. Suitable for high pressure as well as extreme process temperature applications from -70 up to 400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

Spec Sheets

E+H Cerabar PMP55 Pressure Transmitter Data Sheet PDF (3.5 MB)

Manuals

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
PMP55-AA21JD1PGFAFJD1A Show Configuration	$3,524.06	1 in stock

Base Price:: $1,798.31
Approval: Non-hazardous area
Output: 4-20mA HART (+$340.83)
Display and Operation: LCD, push button on display/electronics (+$147.28)
Housing: F31 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 10bar/150psi gauge, 100mH2O/333ftH2O overload: 40bar/600psi
Reference Accuracy: Standard
Calibration and Unit: Sensor range; psi
Process Connection: NPS 2in Cl.150 RF, 316/316L flange ASME B16.5 (+$360.34)
Membrane Material: Tantalum (+$877.30)
Fill Fluid: Silicone oil
Diaphragm Seal Connection: Direct
Language: Without
Calibration: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Flexible Capillary Armoring: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMP55-FD21JD1KGFSDJA1AAA	Call for information	1	Call to order
PMP55-AA21SD1PGFTQJA4A	Call for information	1	Call to order
PMP55-AA22QD1MGJSDJA4ALB	Call for information	1	Call to order
PMP55-AA21SD1KGETDJA4AF1HKJAKB	Call for information	3	Call to order
PMP55-AA21RI1FGJUPJA4ALB	Call for information	2	Call to order
PMP55-FB21JD1HGETIJA4AAAF1	Call for information	37	Call to order
PMP55-AA21SD1KGFTDJA4AF1JALB	Call for information	2	Call to order
PMP55-AA22QA1HGJTJJA4A	Call for information	1	Call to order
PMP55-AA21SD2SGFTJJA4ALB	Call for information	5	Call to order
PMP55-FA21SD1PGFSDJA4A	Call for information	1	Call to order
PMP55-AA21JD1HGASCJA2A	Call for information	1	Call to order
PMP55-AA21SI1PGFSDJA4ELBSA 6.00ft	Call for information	5	Call to order
PMP55-CD22QD1SGFSDJA1BAALB	Call for information	14	Call to order
PMP55-AA21SD1FGFTDJA4AF1JA	Call for information	1	Call to order
PMP55-AA21JD1PGFTJJA1A	Call for information	4	Call to order
PMP55-AA72QI1FGEMSJA4AF1	Call for information	1	Call to order
PMP55-AA21JD1PDJTDJA4AF1HAHKJAJGKB	Call for information	7	Call to order
PMP55-AA21JD1SGFUGJA1B	Call for information	7	Call to order
PMP55-AA11SI1PGFTDJA4A	Call for information	1	Call to order
PMP55-AA21JD2MGJTJJE1A	Call for information	1	Call to order
PMP55-FA22QA2PGJTDJA4A	Call for information	3	Call to order
PMP55-AA21SI1FGETDJA4A	Call for information	1	Call to order
PMP55-AA12IA1MGJTJJA1A	Call for information	3	Call to order
PMP55-AA21JD1KGFTJJA1A	Call for information	6	Call to order
PMP55-AA21SS1SGFSBJA4ALBPA	Call for information	3	Call to order
PMP55-FD21RD1PGJTJJE4A	Call for information	2	Call to order
PMP55-FD21RD1HGJTJJE4A	Call for information	2	Call to order
PMP55-AA21JD1PGFTJJA4A	Call for information	1	Call to order
PMP55-AA21JD1PGFTDJA4A	Call for information	7	Call to order
PMP55-FD21RD1PGJTJJE4AF1HA	Call for information	1	Call to order
PMP55-FD21RD1HGJTJJE4AF1HK	Call for information	4	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 weeks". Click here to select options
