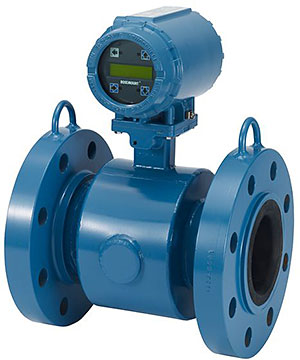

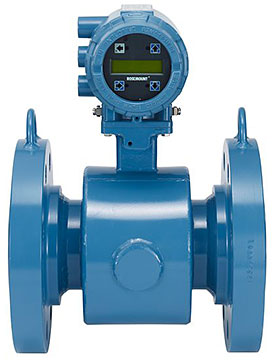

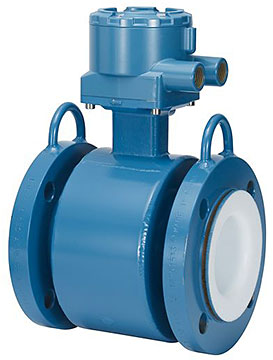

Rosemount 8705 Flanged Magnetic Flow Meter Sensors
Designed for conductive liquids and slurries, fully welded for maximum protection, and available in 1/2- to 36-inch line sizes.
- By Rosemount
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Welded, sealed coil housing
- 0.25% standard accuracy
- 0.15% high accuracy option available
- 7-16Ω sensor coil resistance
- 39.37 ft/s (12 m/s) upper range limit
- 1/2 to 36-inch sizes available
- Pulsed DC coil drive power
- Standard process design
Description
Rosemount 8705 flanged magnetic flow meter sensors are fabricated from stainless and carbon steel, and welded to provide a hermetic seal that protects against moisture and other contaminants. The sealed housing in the 8705 flanged flowtube ensures maximum flowtube sensor reliability by protecting all internal components and wiring from the most hostile environments.
The Rosemount 8705's obstructionless design features no moving parts, which minimizes maintenance and repair. The sensor features a removable and replaceable terminal block that enables easy repair in the field without the need to replace the entire meter. The 8705 also offers optional secondary containment compartments that surround electrodes and capture any potential process fluid leakage. An optional lining protector is also available to guard against installation damage and leading-edge wear.
Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment. Process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater.
Rosemount 8700 series flowtubes are interchangeable with both the 8712D and 8732 flow transmitters. System accuracy is maintained regardless of line size or optional features. Each Rosemount 8705 flanged flowtube nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator interface or the HART Communicator, depending on model.
Instrumart is an IDWR-approved flow meter vendor
The Rosemount 8700 series flanged flowtube sensors is a IDWR-certified flow meter as outlined in the Idaho Department of Water Resources state order requiring flow meters to be installed by water users that divert water in regulated areas from both ground and surface water sources. This flow meter was tested by the staff at Utah State's NIST traceable lab and passed all requirements set by the IDWR and Idaho Department of Agriculture. If you have any questions about this flow meter or what IDWR-approved flow meter best fits your application, please ask one of our helpful engineers. 1-800-884-4967.
Documents
Spec Sheets
- Rosemount 8700M Field Replaceable Terminal Block Datasheet PDF (24.0 MB)
- Rosemount 8700W Legacy Terminal Block Datasheet PDF (5.3 MB)
Other
Manuals
- Rosemount 8700M Magnetic Flow Meter with HART Manual PDF (2.9 MB)
- Rosemount 8700 Series Magnetic Flowmeter Systems Manual PDF (7.3 MB)
Links
Accessories
In Stock
Manufacturer Stock
Items from manufacturer stock generally ship in 2-3 business days.
Part Number | Price | Available | |
---|---|---|---|
8705AHA005C1W0N0 |
$5,424.00 | 1 in stock | |
8705AHA010C1W0N0 |
$5,424.00 | 1 in stock | |
8705AHA015C1W0N0 |
$5,921.00 | 1 in stock | |
8705AHA020C1W0N0 |
$6,462.00 | 1 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6-8 weeks". Click here to select options
Need Help? Call a Flow engineer at 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
