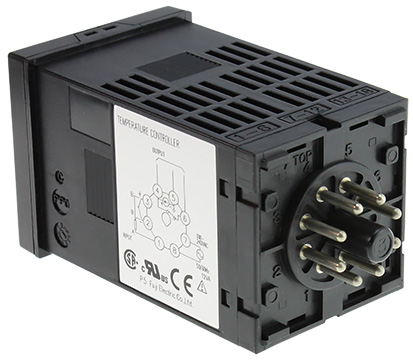

Fuji Electric PXF4 Temperature Controller Socketed

Self-tuning 1/16 DIN (48 x 48mm) compact temperature and process controller with 50ms sampling speed.

Features

  • Universal input
    • Thermocouple, RTD, voltage, current, mV
  • Improved input indication accuracy, up to ±0.2%
  • 0.1 to 99 second control cycle
  • On/Off control & PID controls with auto tuning
    • PID, 2-degrees-of-freedom PID, & fuzzy
    • Open-loop supported PID2 control
  • Ramp soak function (simple program control)
    • 64 steps x 1 pattern
    • 32 steps x 2 patterns
    • 16 steps x 4 patterns
    • 8 steps x 8 patterns
  • Directly connect to a PC with optional USB cable
    • This will bus-power the unit

The Fuji Electric PXF4 temperature controller socket-type was developed as a successor to the PXR4 socket-type. It is equipped with multiple input and output options as well as sophisticated control functions making it suitable for a wide range of applications. You can use any input among RTD, thermocouples, voltage, current, and mV. Switching the input is an easy parameter change. The socket terminal on the back makes this unit conveniently plug and play.

The PXF series features highly accurate input indication:

  • RTD is ±0.2% of indication value ±1 digit or ±0.8°C ± 1 digit, whichever is larger
  • Thermocouple is the larger of ±1°C ±1 digit or ±0.3% of indicated value ±1 digit
  • Voltage and current are ±0.3% FS ± 1 digit

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Autonics 8 Pin Back Wired Socket
Autonics 8 Pin Back Wired Socket

For panel mount applications.

In Stock
$4.00
Autonics 8 Pin Front Wired Socket w/DIN Rail Mount
Autonics 8 Pin Front Wired Socket w/DIN Rail Mount

In Stock
$4.00
Autonics 11 Pin Back Wired Socket
Autonics 11 Pin Back Wired Socket

In Stock
$6.00
Autonics 11 Pin Front Wired Socket w/DIN rail Mount
Autonics 11 Pin Front Wired Socket w/DIN rail Mount

In Stock
$6.00

This product can be used in the following applications:

Part Number Price Available
PXF4NBU2-4VYA1
Show Configuration
$271.00 350 in stock
PXF4ABU2-4VYA1
Show Configuration
$271.00 192 in stock
PXF4AEU2-4VYA1
Show Configuration
$271.00 106 in stock
PXF4ACU2-GVYA1
Show Configuration
$313.00 100 in stock
PXF4NEU2-4VYA1
Show Configuration
$271.00 63 in stock
PXF4AEU2-GVYA1
Show Configuration
$313.00 57 in stock
PXF4AEU2-GBYA1
Show Configuration
$355.00 50 in stock
PXF4NCU2-GBYA1
Show Configuration
$355.00 28 in stock
PXF4NCU2-GVYA1
Show Configuration
$313.00 16 in stock
PXF4ABU2-4BYA1
Show Configuration
$313.00 14 in stock
PXF4NEU2-GBYA1
Show Configuration
$355.00 10 in stock
PXF4AEU2-4BYA1
Show Configuration
$313.00 9 in stock
PXF4NBU2-4BYA1
Show Configuration
$313.00 2 in stock
PXF4ABU2-GVYA1
Show Configuration
$313.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5-7 business days". Click here to select options
