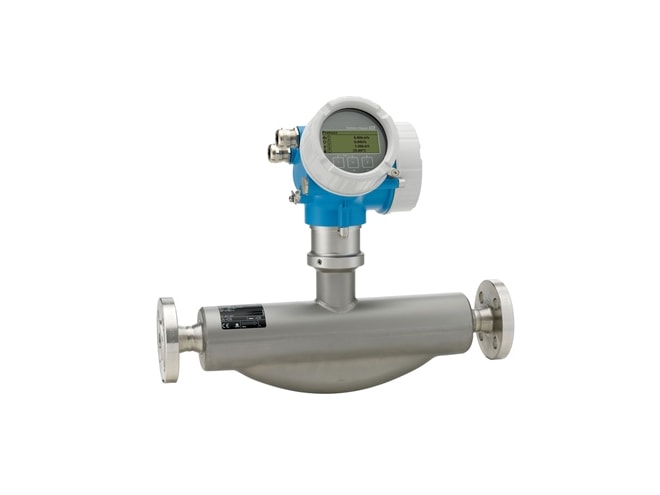

E+H Proline Promass F 200 Coriolis Flow Meter

Name: E+H Proline Promass F 200 Coriolis Flow Meter
Price: 11143.46 USD
Availability: InStock

Robust Flow Meter with genuine loop-powered technology, operates independently of physical fluid properties.

Starting at $11,143.46

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Mass flow: measured error ±0.1%
Medium temperature up to +205°C (401°F)
Nominal diameter: DN 8 to 80 (3/8 to 3in)
Loop-powered technology
Robust dual-compartment housing
Plant safety: worldwide approvals (SIL, Haz. area)

Predecessor: Promass 80F and Promass 83F

The E+H Proline Promass F 200 Coriolis Flow Meter is designed for the broadest range of applications. The Promass F 200 features industry-compliant two-wire technology. This enables seamless system integration into existing infrastructures. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design (Ex ia) and process safety at all times ensured by Heartbeat Technology.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input	Process Connection	Price	Available
8F2B08-C2AECDSAAASADEEB Show Full Configuration	3/8in, DN08	CSA C/US IS Cl.I,II,III Div. 1	4-20mA HART	Cl.150 RF, 1.4404/316/316L, flange ASME B16.5	$12,646.02	2 in stock
8F2B15-AAAECDSAAASA Show Full Configuration	1/2in, DN15	Non-hazardous area	4-20mA HART	Cl.150 RF, 1.4404/316/316L, flange ASME B16.5	$12,031.73	1 in stock
8F2B15-C3AACDSAACSADE Show Full Configuration	1/2in, DN15	CSA C/US XP Cl.I,II,III Div.1	4-20mA HART	Cl.600 RF, 1.4404/316/316L, flange ASME B16.5	$13,203.20	1 in stock
8F2B40-C2ACCDSAAASA Show Full Configuration	1 1/2in, DN40	CSA C/US IS Cl.I,II,III Div. 1	4-20mA HART	Cl.150 RF, 1.4404/316/316L, flange ASME B16.5	$14,183.09	1 in stock

Base Price:: $11,040.74
Size: 3/8in, DN08
Approval: CSA C/US IS Cl.I,II,III Div. 1 (+$401.18)
Output and Input: 4-20mA HART
Display and Operation: SD03 4-line, illum. and touch control, data backup function (+$336.99)
Housing: GT20 dual compartment, alu, coated (+$102.72)
Electrical Connection: Thread NPT1/2
Meas. Tube Material and Wetted parts Surface: Stainl. steel and not polished
Process Connection: Cl.150 RF, 1.4404/316/316L, flange ASME B16.5
Calibration Flow: 0.10% Mass
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Output 1, gas (+$96.29)
Application Package: Heartbeat verification + monitoring (+$668.10)
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without

Reconfigure

Base Price:: $11,040.74
Size: 1/2in, DN15 (+$551.28)
Approval: Non-hazardous area
Output and Input: 4-20mA HART
Display and Operation: SD03 4-line, illum. and touch control, data backup function (+$336.99)
Housing: GT20 dual compartment, alu, coated (+$102.72)
Electrical Connection: Thread NPT1/2
Meas. Tube Material and Wetted parts Surface: Stainl. steel and not polished
Process Connection: Cl.150 RF, 1.4404/316/316L, flange ASME B16.5
Calibration Flow: 0.10% Mass
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without

Reconfigure

Base Price:: $11,040.74
Size: 1/2in, DN15 (+$551.28)
Approval: CSA C/US XP Cl.I,II,III Div.1 (+$665.95)
Output and Input: 4-20mA HART
Display and Operation: w/o and via communication
Housing: GT20 dual compartment, alu, coated (+$102.72)
Electrical Connection: Thread NPT1/2
Meas. Tube Material and Wetted parts Surface: Stainl. steel and not polished
Process Connection: Cl.600 RF, 1.4404/316/316L, flange ASME B16.5 (+$746.22)
Calibration Flow: 0.10% Mass
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Output 1, gas (+$96.29)
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without

Reconfigure

Base Price:: $11,040.74
Size: 1 1/2in, DN40 (+$2,413.77)
Approval: CSA C/US IS Cl.I,II,III Div. 1 (+$401.18)
Output and Input: 4-20mA HART
Display and Operation: SD02 4-line and push buttons, data backup function (+$224.68)
Housing: GT20 dual compartment, alu, coated (+$102.72)
Electrical Connection: Thread NPT1/2
Meas. Tube Material and Wetted parts Surface: Stainl. steel and not polished
Process Connection: Cl.150 RF, 1.4404/316/316L, flange ASME B16.5
Calibration Flow: 0.10% Mass
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
8F2B15-C4ACCDSAJSFAEB	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
