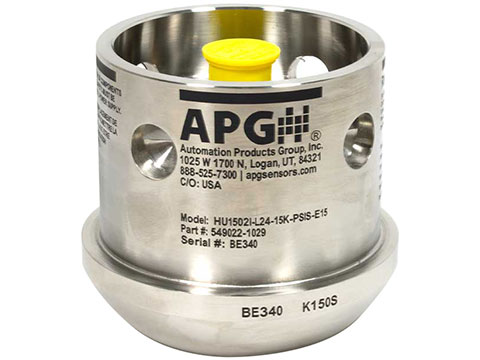

APG 1502I HU Hammer Union Pressure Transmitter
Recalibratable incoloy hammer union pressure transmitter, for land-based and offshore drilling installations.
Overview
Features
- Ranges to 20,000 psi
- Digital recalibration port
- 4-20 mA or 0-5 VDC output
- WECO® 1502 fitting for 2” line
- ±0.25% accuracy of full scale
- Exceptional shock and vibration resistance
- Frequency response: Less than 5mS
- CSA/ATEX/IECEx Approval
Description
The Hammer Union 1502 Fitting Recalibratable Incoloy Pressure Transmitter is designed for the rugged environments of land-based and offshore drilling installations, including Mud Logging and Measurement While Drilling. The incoloy wetted material is NACE compliant and suitable for sour gases. And the recalibration port allows for digital zero and span setting. With all that, and Class I, Div 1 Intrinsically Safe certification, the HU1502I delivers accurate measurements in the most adverse conditions.
