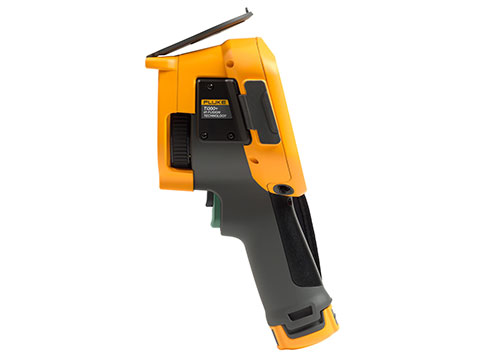

Fluke Ti300+ Thermal Imager
76,800 pixel resolution (320 x 240), -4 to 1202 °F, ≤ 0.075 °C sensitivity, & Fluke Connect .
Overview
Features
- -4 to 1202°F (-20 to 650°C) temperature range
- 1.85 mRad, D:S 532:1 spatial resolution
- 320 x 240 (76,800 pixels) IR resolution
- 34° H x 24° V field of view
- ± 2°C or 2% accuracy at 25 °C
- 7.5 to 14μm spectral range
- 9Hz frame rate
- On-screen emissivity correction, reflected background temperature compensation and transmission correction
- 2-year warranty
- IEC 61010-1, IEC 61326-1, IEC 60529: IP54
What's in the Box
- Infrared camera with standard infrared lens
- AC power supply and battery pack charger
- (including universal AC adapters)
- Two rugged lithium ion smart battery packs
- USB cable
- HDMI video cable
- 4GB micro SD card
- Hard carrying case
- Soft transport bag
- Adjustable hand strap
Description
The Fluke Ti300+ Thermal Imager has the resolution and accuracy needed to clearly reveal temperature differentials or demonstrate progressive heat changes over time. With LaserSharp™ AutoFocus the Ti300+ ensures focused images—every single time. It enables your team to get clear images while maintaining a safe distance from operating equipment.
With the Fluke Ti300+ Thermal Imager you can take infrared images through common obstacles like chain link fences, avoiding skewed temperature measurements by precisely choosing your target. Perform the same inspections multiple times as a part of your preventive maintenance program—the built-in laser distance meter calculates and displays how far you are from your target, making repeatability much easier.
