Danatronics MTG-99 Magnetic Thickness Gauge
Non-destructively measure the thickness of any non-ferrous material up to 1in with access to both sides.
Overview
Features
- 0.001” to 1” Thickness Range
- Minimum thickness capture with vibrate on alarm
- -4 to 122°F (-20 to 50°C) operating temp
- 3.5" high resolution color TFT display
- 16h (lithium-ion) battery life
- Multiple languages
- Datalogger interfaces with Microsoft Excel
- Designed for IP67
What's in the Box
- PR-1 probe
- MTG-CAL-KIT
- MTG-2PS 2 piece stand to hold probe
- MTG-SC Stand
- ECHO-CA charger adapter with USB cable
- MTG-Man instruction manual

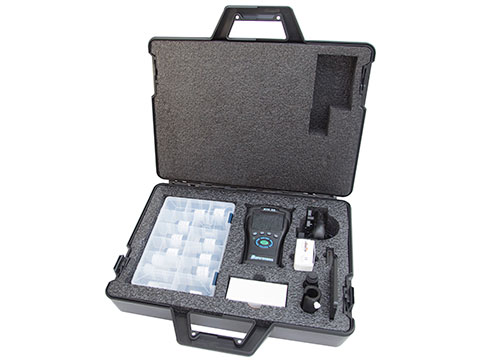

- MTG-TC transport case
Description
The Danatronics MTG-99 is portable, battery-operated, can change color and vibrate on alarm, has an internal data logger, and is proudly made in the USA. Typical applications include plastic bottles, containers, tubing, Titanium, Aluminum, and Copper tubes and pipes as well as composite structures.
