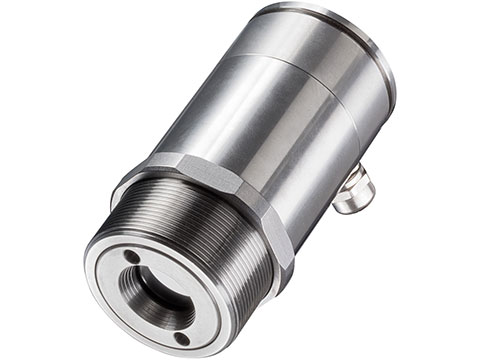

Optris CTlaser G7 Infrared Temperature Sensor

Fixed infrared pyrometer measures the temperature of glass surfaces as small as 0.06 inches with temperature ranges from 212 to 2390°F & 7.9µm spectral range.

Starting at $1,015.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 5 weeks
Product Family
Product Specs

Features

  • 212 to 2390°F (100 to 1200°C)
  • 45:1 optical resolution
  • 0.5K resolution
  • 150 ms response time
  • 0.1 to 1.1 emissivity
  • ±1% or ±1.5°C accuracy
Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

The Optris CTlaser G7 infrared temperature sensor was developed for precise temperature measurement of ultra-thin glass surfaces, such as touch-screens. It has a broad temperature range of 212 to 2390°F (100 to 1200°C) and can be used in temperatures of up to 185°F (85°C) without additional cooling.

The Optris CTlaser G7 infrared thermometer is capable of targeting objects of 0.06in (1.6mm) at a distance of 2.76in (70mm). Its standardized two-wire interface additionally allows for a reliable transfer of measurement data and easy integration into a PLC.

Cables

Optris ACCTLCB3C Cable
Optris ACCTLCB3C Cable

3m head cable with connector used with Optris CTlasers.

$70.00
Optris ACCTLCB3HC High-temperature Cable
Optris ACCTLCB3HC High-temperature Cable

3m head cable with connector for applications up to 356°F using Optris CTlasers.

Mfg. has stock
$120.00
Optris ACCTLCB3FC Cable Suitable for Cable Carriers
Optris ACCTLCB3FC Cable Suitable for Cable Carriers

3m head cable with connector used with Optris CTlasers.

$125.00
Optris ACCTLCB8C Cable
Optris ACCTLCB8C Cable

8m head cable with connector used with Optris CTlasers.

$105.00
Optris ACCTLCB8HC High-temperature Cable
Optris ACCTLCB8HC High-temperature Cable

8m head cable with connector for applications up to 356°F using Optris CTlasers.

$210.00
Optris ACCTLCB8FC Cable Suitable for Cable Carriers
Optris ACCTLCB8FC Cable Suitable for Cable Carriers

8m head cable with connector used with Optris CTlasers.

$220.00
Optris ACCTLCB15C Cable
Optris ACCTLCB15C Cable

15m head cable with connector used with Optris CTlasers.

$160.00
Optris ACCTLCB15HCHigh-temperature Cable
Optris ACCTLCB15HCHigh-temperature Cable

15m head cable with connector for applications up to 356°F using Optris CTlasers.

$325.00
Optris ACCTLCB15FC Cable Suitable for Cable Carriers
Optris ACCTLCB15FC Cable Suitable for Cable Carriers

15m head cable with connector used with Optris CTlasers.

$365.00

Software

Optris Compact Connect Software
Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

$0.00

Accessories

Please consider these optional accessories.

Optris ACCTLCONK Connector Kit
Optris ACCTLCONK Connector Kit

Converts the CTlaser with integrated cable into connector version, includes sensor backplane, connector & blank cap for the cable gland.

Mfg. has stock
$80.00
Optris ACCTLHTCERT Calibration Certificate
Optris ACCTLHTCERT Calibration Certificate

Certificate of calibration with 3 reference temperatures for CTlaser 05M, 1M, 2M, 3M, MT, F2, F6, G5 & P7.

$195.00
Optris CT Series Digital Interface
Optris CT Series Digital Interface

Relay, RS485, RS232, USB, RS485/422, Modbus RTU, CAN-Bus & Profibus-DPv1 interfaces.

Some Models in Stock
Starting at $65.00
Optris ACCTRAIL Rail Mount Adapter
Optris ACCTRAIL Rail Mount Adapter

Mounts CT electronics on a DIN rail.

Mfg. has stock
$26.00
Optris ACCTLRM Furnace Wall Mount
Optris ACCTLRM Furnace Wall Mount

Includes mounting adapter, 300mm sighting tube & M48 x 1.5 pipe adapter .

$375.00
Optris Advanced Cooling Jacket
Optris Advanced Cooling Jacket

Protection for harsh industrial environments, operates at ambient temperatures up to 599°F, available with additional mounting support.

Mfg. has some models in stock
Starting at $1,400.00
Optris Focusing Unit & Front End
Optris Focusing Unit & Front End

Required component for Optris advanced cooling jacket.

Mfg. has some models in stock
Starting at $195.00
Optris Cooling Jacket Protective Grid
Optris Cooling Jacket Protective Grid

Available in 2 & 3.15mm size, recommended component for the Optris cooling jacket, not for PI series with 48° lens.

Mfg. has some models in stock
Starting at $136.00
Optris CXLaser / CXVideo Mounting Bracket
Optris CXLaser / CXVideo Mounting Bracket

Stainless steel, available as adjustable in 1 or 2 axis, for CT/CSlaser & CT/CSvideo.

Mfg. has some models in stock
Starting at $47.00
Optris ACCTLAP Air Purge Collar
Optris ACCTLAP Air Purge Collar

G 1/8in thread fitting & 6x8mm hose connection for CT/CSlaser & CT/CSvideo.

Mfg. has stock
$120.00
Optris ACCTLW Water Cooled Housing
Optris ACCTLW Water Cooled Housing

Stainless steel, for temperatures up to 175°C.

Mfg. has stock
$273.00
Optris ACCTCOV Closed Cover
Optris ACCTCOV Closed Cover

For CxL, CxV, CT XL & CTratio electronic box.

Mfg. has stock
$26.00
Optris ACCTLTA20UN Thread Adapter
Optris ACCTLTA20UN Thread Adapter

M48x1.5 to 20 UN-2A thread, includes mounting nut .

Mfg. has stock
$120.00
Optris M48 Pipe Flange
Optris M48 Pipe Flange

Fitting to sighting tubes with M48x1.5 thread; for high ambient temperatures.

Starting at $105.00
Optris ACHAPA Pipe Adapter
Optris ACHAPA Pipe Adapter

With M48x1.5 internal thread.

$47.00
Optris ACHAST300 Sighting Tube
Optris ACHAST300 Sighting Tube

M48x1.5, 300mm length.

$95.00
Optris ACHAMA Mounting Adapter
Optris ACHAMA Mounting Adapter

Mounting and pipe flange including screws.

$235.00
Optris CoolingJacket Mounting Flange
Optris CoolingJacket Mounting Flange

Fitting for connection to pipe flange, CoolingJacket and CoolingJacket Advanced.

Starting at $130.00
