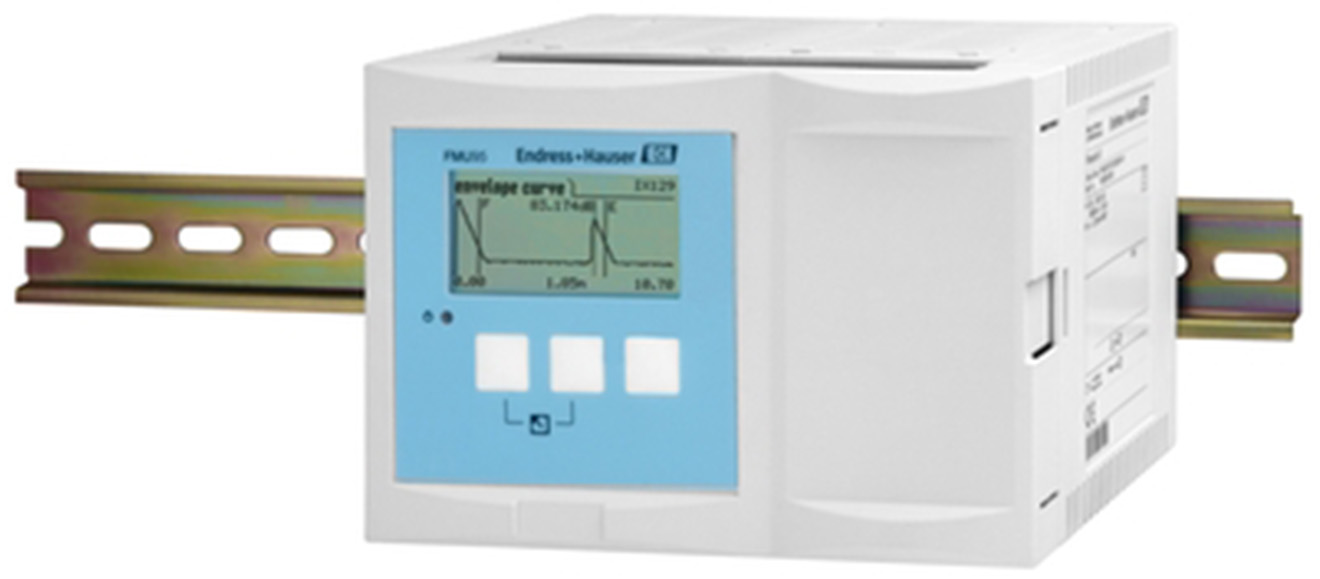

E+H Prosonic S FMU95 Ultrasonic Level Transmitter

Level measurement of fluids and bulk materials with up to 10 sensors with Profibus DP output.

Starting at $5,249.45

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-2 weeks
Product Manual Product Specs

Features

  • ±0.2% of maximum span of sensor accuracy
  • 0.04in (1mm) resolution
  • Measuring frequency
    • 0.2 Hz with 5 sensors
    • 0.1 Hz with 10 sensors
  • Up to 20 measured values
  • Six-line, plain text display
  • Average and sum calculations
  • 15 languages selectable
  • Field housing: IP66 / NEMA 4x
  • DIN rail housing: IP20
  • ATEX II 3D, CSA

The E+H Prosonic S FMU95 transmitter features continuous, non-contact level measurement of fluids, pastes, sludge, and powdery to coarse bulk solids. The transmitter also measures flow in open channels and weirs with five or ten sensors, including pre-programmed and freely configurable linearization curves for specific types of vessels. It features system integration via PROFIBUS DP with up to 20 measured values, and integrated or external temperature sensors enable time-of-flight correction.

The FMU95 transmitter offers a five- or ten-channel version and the choice of field housing or top hat rail housing for control cabinet instrumentation. The display features envelope curves for quick and simple diagnosis, and the supplied "FieldCare" operating program enables easy operation, diagnosis, and measuring point documentation.

E+H Prosonic FDU90 Ultrasonic Level Sensor
E+H Prosonic FDU90 Ultrasonic Level Sensor

Integrated temperature sensor for Time-of-Flight correction, hermetically welded PVDF sensor.

Starting at $593.71
E+H Prosonic FDU91 Ultrasonic Level Sensor
E+H Prosonic FDU91 Ultrasonic Level Sensor

Continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials.

Mfg. has some models in stock
Starting at $691.93
E+H Prosonic FDU91F Ultrasonic Level Sensor
E+H Prosonic FDU91F Ultrasonic Level Sensor

Continuous, non-contact and maintenance-free level measurements, measuring range up to 10m (liquids and 5m (solids).

Starting at $1,222.57
E+H Prosonic FDU93 Ultrasonic Level Sensor
E+H Prosonic FDU93 Ultrasonic Level Sensor

Integrated temperature sensor for Time-of-Flight correction, suited for rough ambient conditions.

Starting at $1,782.90
E+H Prosonic FDU95 Ultrasonic Level Sensor
E+H Prosonic FDU95 Ultrasonic Level Sensor

non-contact and maintenance-free level measurement in solids up to 45m (148ft).

Starting at $2,234.63
